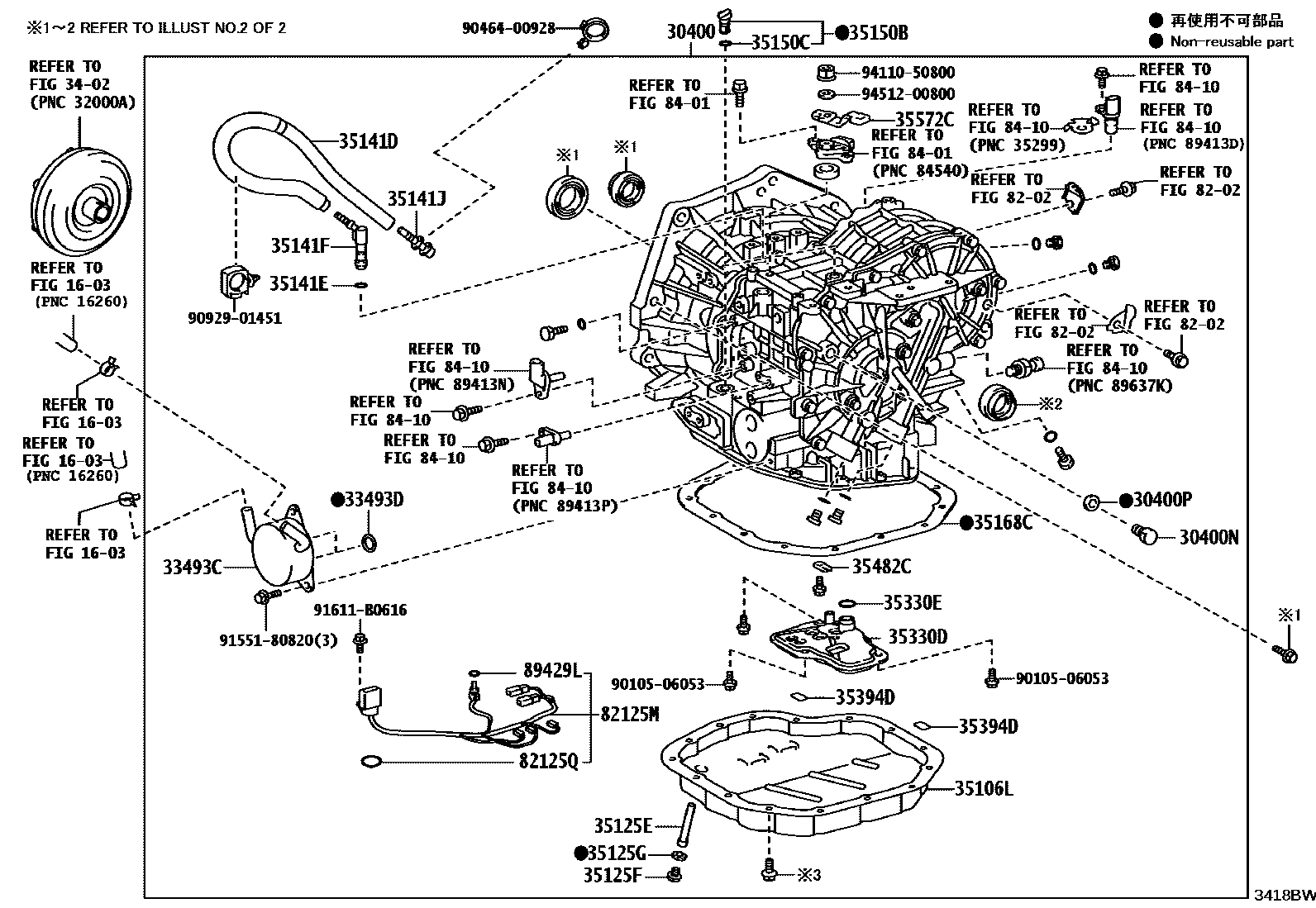

TRANSAXLE ASSY(CVT)

0001 1K411 0002 1K411 0003 1K312 0004 1K312 0005 1K412 0006 1K412 0007 1K412 0008 1K412

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-52390iNSP152201708-201910

K411

main30400-52440iNSP150..CVT..(B,C)201604-201806

K411

main30400-52450iNSP151..CVT..(AGT,BZ,IND,MA);NSP151..CVT..(GEN,PH,VN)..(D,E,H)201708

K312,TMH:REFER TO ILLUST.

main30400-52490iNSP151..CVT..H201902-201910

K312,AISIN AW:REF.ILLUST

sub30400-52491

main30400-52570iNSP152201911-202207

K412

30400NPLUG, REFILL(CVT)

main90341-18077iNSP151..CVT..D..C201708-202108

TMH:REFER TO ILLUST.

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iNSP151..F201708-202101

TMH:REFER TO ILLUST.

33493CCOOLER, TRANSMISSION OIL

main32970-52010iNSP152201911-202207

main33493-12050iNSP152201708-201910

main33493-20100iNSP151..F201708-202101

main33493-52030iNSP150..CVT..GCC201604-201712

33493DRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012×2iNSP151..TH..G..C201604-201707

3402

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-12200iNSP151..CVT..I202406

TMH:REFER TO ILLUST.

main35106-12210iNSP151..CVT..H201902-201910

AISIN AW:REF.ILLUST

main35106-52090iNSP150..CVT..(A,C)201708-202207

main35106-52110iNSP152201911-202207

35125ETUBE, OVERFLOW(CVT)

main35125-12440iNSP151..CVT..(AGT,BZ,IND,MA);NSP151..CVT..(GEN,PH,VN)..(D,E,H)201708

TMH:REFER TO ILLUST.

main35125-12480iNSP151..CVT..H201902-201910

AISIN AW:REF.ILLUST

main35125-52200iNSP152..HTWC;NSP150..CVT..(D,I)201708-202406

main35125-52220iNSP152201911-202207

35125FPLUG, OVERFLOW(CVT)

main90341-12034iNSP151..CVT..(AGT,BZ,IND,MA);NSP151..CVT..(GEN,PH,VN)..(D,E,H)201708

TMH:REFER TO ILLUST.

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iNSP151..CVT..H201902-201910

AISIN AW:REF.ILLUST

35141DHOSE(FOR BREATHER PLUG)

main35121-52020×2iNSP151..CVT..I202003-202406

TMH:REFER TO ILLUST.

main35121-52030iNSP150..CVT..(B,C)201604-201806

main35121-52040iNSP152201911-202207

35141ERING, O(FOR BREATHER PLUG)

main90301-06005iNSP151..CVT201604-201605

main90301-06021iNSP151..CVT..(B,C)201605

main90301-08015iNSP152..HTWCB;NSP150..CVT..(A,C)201708-202207

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03191iNSP151..F201708-202101

TMH:REFER TO ILLUST.

main90930-03209iNSP150..CVT..(B,C)201604-201806

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03149iNSP151..CVT..A;NSP151..CVT..(GCC,IDN)..(G,R)..C201708-202207

TMH:REFER TO ILLUST.

35150BPLUG ASSY, TRANSMISSION CASE

main35150-48010iNSP151..CVT..H201902-201910

AISIN AW:REF.ILLUST

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iNSP151..CVT..H201902-201910

AISIN AW:REF.ILLUST

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-12091iNSP151..CVT..(AGT,BZ,IND,MA);NSP151..CVT..(GEN,PH,VN)..(D,E,H)201708

TMH:REFER TO ILLUST.

main35168-52030iNSP150..CVT..(B,C)201604-201806

main35168-52080iNSP152201911-202207

35330DSTRAINER ASSY, OIL

main35330-12050iNSP151..CVT..H201902-201910

AISIN AW:REF.ILLUST

main35330-52060iNSP152..HTWC;NSP150..CVT..(D,I)201708-202406

main35330-52080iNSP152201911-202207

35330ERING, O (FOR OIL STRAINER)

main90301-22014iNSP150..CVT..(B,C)201604-201806

main90301-22019iNSP151..CVT..(B,C)201605

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011×3iNSP151..GCC..C;NSP151..CVT..(AGT,BZ,IDN,IND,MA);NSP151..CVT..(GCC,GEN,PH,TAIW,TH,VN)..(A,D,E,F,H)201708-202101

TMH:REFER TO ILLUST.

main35394-48010×3iNSP151..CVT..D..A;NSP151..CVT..(G,R)..(A,C)202102-202207

TMH:REFER TO ILLUST.

35482CCLAMP, TEMPERATURE SENSOR

main35482-21020iNSP152201911-202207

main35482-73010iNSP151..CVT..H201902-201910

AISIN AW:REF.ILLUST

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iNSP151..CVT..(B,C)201604

main35572-12170iNSP151..CVT..H201902-201910

AISIN AW:REF.ILLUST

main35572-52070iNSP152..HTWC;NSP150..CVT..(D,I)201708-202406

8202

82125MWIRE, TRANSMISSION

main82125-12641iNSP151..CVT..(A,F,G);NSP151..CVT..(GCC,IDN)..C201708-201807

main82125-12642iNSP151..CVT..I201808-202104

main82125-52130iNSP152..HTWC;NSP150..CVT..(A,C,D,I)201708-202107

main82125-52140iNSP152201911-202207

82125QRING, O(FOR TRANSMISSION WIRE)

main90301-21009iNSP151..F201708-202101

8401

8410

89429LRING, O(FOR OIL TEMPERATURE SENSOR)

main90301-06004iNSP151..CVT..(B,C)201604

9010506053

main90105-06053

9046400928

main90464-00928

9092901451

main90929-01451

9155180820

main91551-80820

91611B0616

main91611-B0616

9411050800

main94110-50800

9451200800

main94512-00800

36 parts on this diagram · 8 diagrams in section
