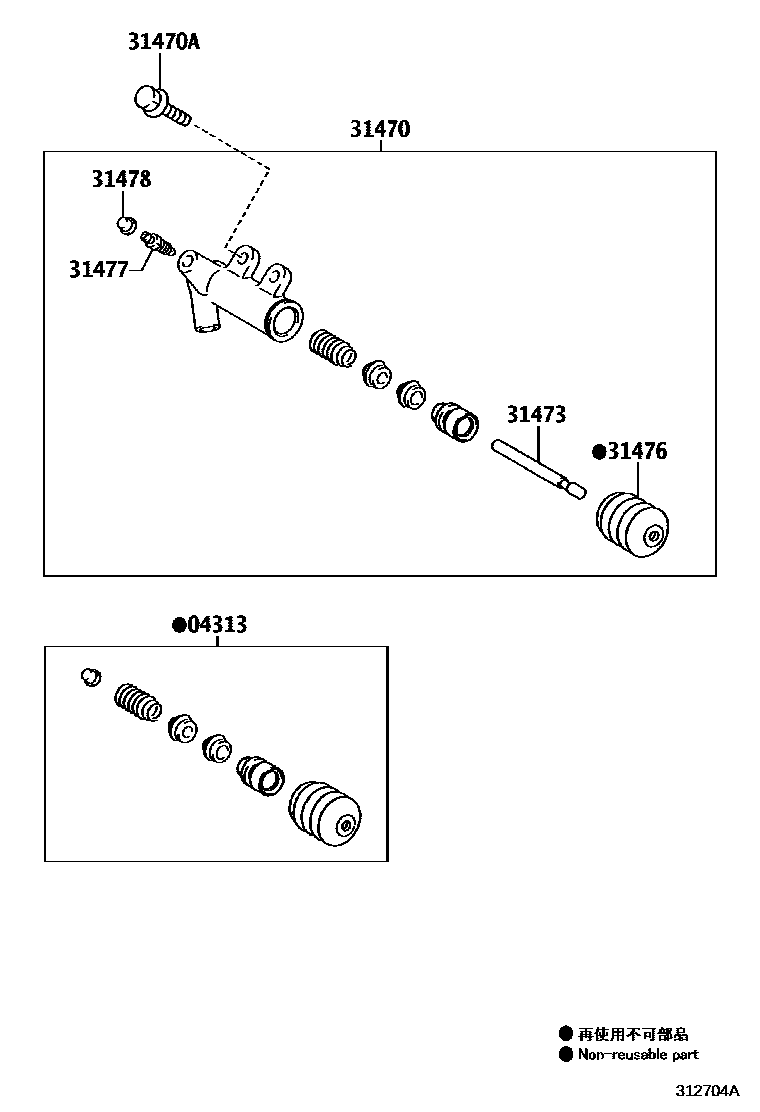

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-0K030iNSP151..5F..MA201604-202406

main04313-0K040iNSP150..VN201604-202406

main04313-35060iNCP151..VN201307-201609

main04313-52020iNCP150..5F..IDN..B201304-201609

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-0D060iNCP151..5F..(GCC,GEN)..B201310-201609

main31470-0D070iNCP150..5F..(MA,VN)201310-201609

main31470-0D080iNSP150..VN201604-202406

main31470-0D090iNSP151..5F..(D,E);NSP151..RHD..5F..(B,I)201604-202406

main31470-52111iNCP151..5F201307-201310

main31470-52121iNCP150..5F201304-201310

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-T0304iNSP150,151..5F..PH201410-202406

*8-1.25PX22-17.1

main91611-60822iNCP15#..5F201304-201409

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-0D020iNCP150..5F..IDN..B201310-202406

main31473-20031iNCP15#..5F201304-201310

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-04010iNSP150,151..5F..GEN201310-202406

main31476-22010iNCP15#..5F201304-201310

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNCP15#..5F..(GCC,GEN,TH)..B201304-202406

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNSP151..5F..(D,E);NSP150..5F..(D,E,I);NSP151..MTM..(AGT,BZ,GEN,IND,MA,PKN)..(B,G,H,I)201304-202406

7 parts on this diagram · 2 diagrams in section
