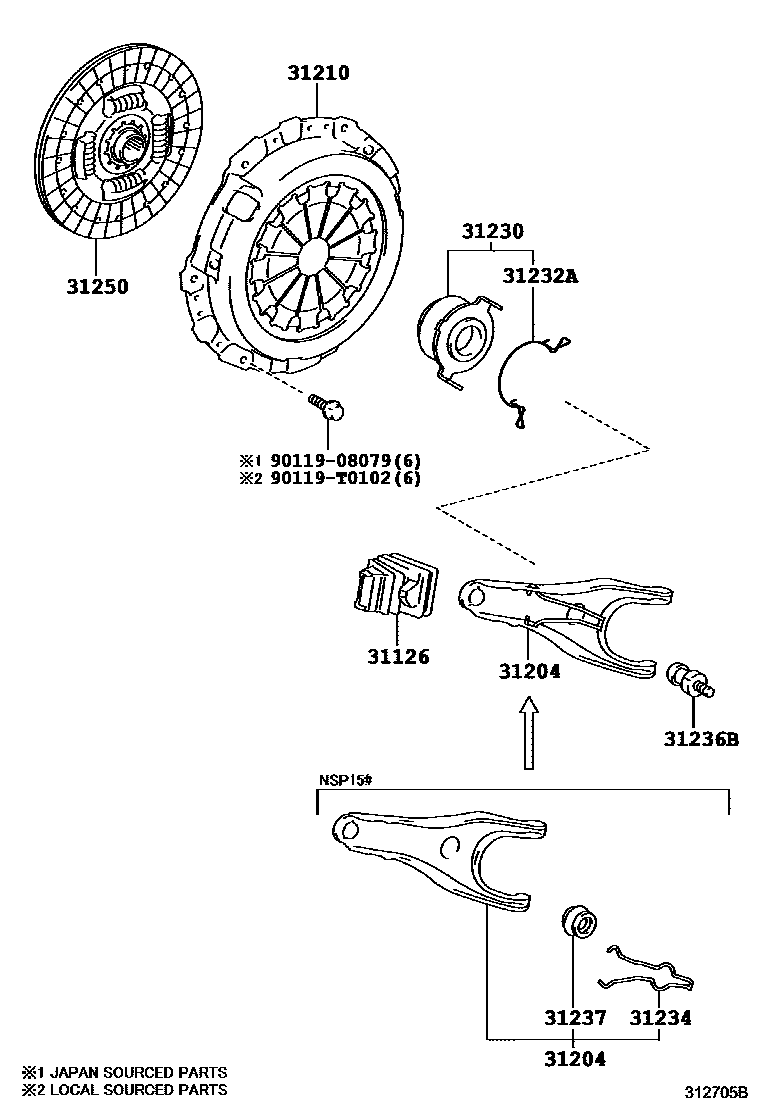

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0D090iNSP150,151..5F..VN201604-202406

main31126-12051iNCP15#..5F..(MA,VN)201304-201609

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0D040iNSP150,151..5F..VN201604-202207

main31204-0D050iNSP150,151..5F..I202003-202406

main31204-52010iNCP150..5F..IDN..B201304-201609

31210COVER ASSY, CLUTCH

main31210-0D180iNCP150..5F..IDN..B201304-201908

main31210-0D190iNCP151..VN201307-201609

main31210-0D220iNSP151..6F..H201807-201910

main31210-0D230iNSP150..5F..G..A;NSP150..5F..GCC..D..(A,C)201604-202406

main31210-0D240iNSP151..5F..PH201604-202406

31230BEARING ASSY, CLUTCH RELEASE

main31230-0D010iNSP15#..5F201604-201610

sub31230-0D011

main31230-0D011iNSP151..5F..(D,E);NSP150..5F..(A,C,D,E);NSP151..5F..(GEN,IDN,MA)201610-201902

sub31230-0D012

main31230-0D012iNSP151..5F..(A,C);NSP150..5F..GEN..D;NSP150..5F..R..(A,C)201902-202406

main31230-12181iNCP150..5F..IDN..B201304-201609

31232ACLIP, RELEASE BEARING HUB

main31232-0D010iNSP150,151..5F..GEN201610-202406

main31232-12070iNSP15#..5F201604-201610

main31232-12080iNCP15#..5F..PH201304-201609

31234SPRING, RELEASE FORK ANTI-RATTLE

main31234-52020iNSP150,151..5F..GEN201604-202406

31236BSUPPORT, RELEASE FORK

main31236-0D020iNSP151..5F..(D,E);NSP150..5F..(D,E,I);NSP151..RHD..5F..(B,I)201604-202406

main31236-12020iNCP15#..5F..(GCC,GEN,TH)..B201304-201609

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-0D020iNSP150,151..5F..GEN201604-202406

31250DISC ASSY, CLUTCH

main31250-0D220iNCP150..5F..IDN..B201304-201508

sub31250-0D221

main31250-0D221iNCP150..5F..PH201509-201609

main31250-0D230iNCP151..5F201307-201508

sub31250-0D231

main31250-0D231iNCP151..5F..PH201509-201609

main31250-0D250iNSP151..6F..G201804-201908

main31250-0D290iNSP151..6F..H201807-201809

sub31250-0D291

main31250-0D291iNSP151..6F..H201810-201910

main31250-0D320iNSP150..5F..(D,E,I)201604-202406

main31250-0D330iNSP151..5F..(D,E);NSP151..RHD..5F..(B,I)201604-202406

9011908079

main90119-08079

90119T0102

main90119-T0102

11 parts on this diagram · 3 diagrams in section
