FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

1603

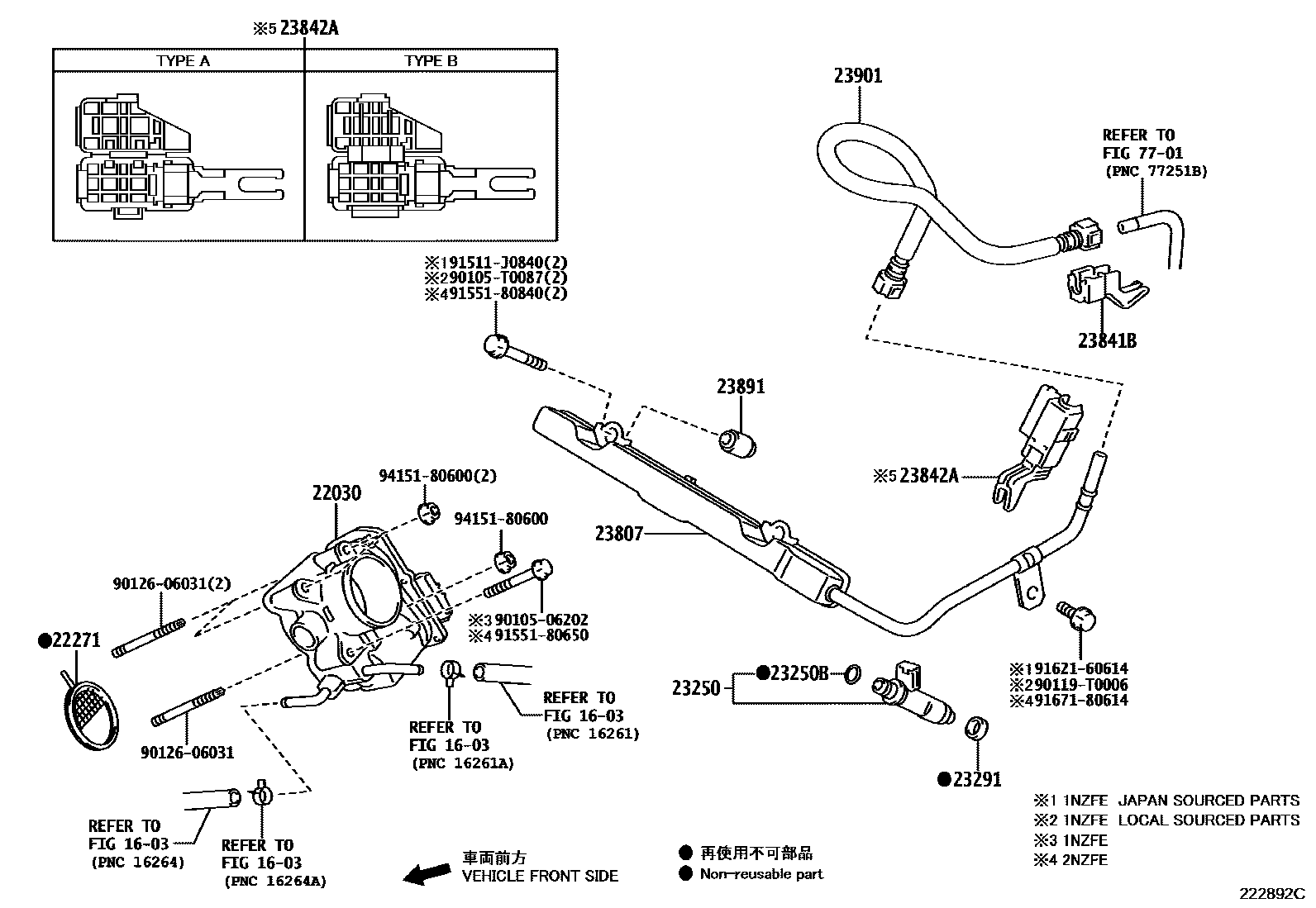

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0M010i1NZFE..NCP150201304-201609

(L)

main22030-0Y020i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)201708-202108

*264,TYPE A:REF ILL.

main22030-0Y080i3NRFE..NSP152201708-201910

main22030-0Y120i3NRFKE..NSP152201911-202207

main22030-0Y140i2NRFE..NSP151..5F..C202104-202106

*264,TYPE B:REF ILL.

main22030-21030i1NZFE..NCP150201304-201609

(J)

22271GASKET, THROTTLE BODY

main22271-0Y030i1NRFE,2NRFE..NSP150,151..B,C201604

*264

main22271-0Y040i3NRFE..NSP152201708-201910

main22271-21060i1NZFE,2NZFE..NCP15#201304-201609

23250INJECTOR ASSY, FUEL

main23209-09340×4i2NRFE..NSP151..MA201901-202011

*419

main23209-09350×4i2NRFE..NSP151..TH..B201604-202008

*264

main23209-09351×4i2NRFE..NSP151..TH..B202008

*264

main23209-09390×4i2NRFE..NSP151..F201708-202101

*230 OR *432

main23209-09400×4i2NRFE..NSP151..TH..B201607-202102

*230 OR *432

main23209-09401×4i2NRFE..NSP151..TH..B202102

*230 OR *432

main23209-0M010×4i1NZFE..NCP150201304-201609

(L)

main23209-21040×4i1NZFE..NCP150201304-201609

(J)

sub23209-21120

main23209-49205×4i3NRFE..NSP152201708-201910

main23209-49245×4i2NRFE..NSP151..H201807-201910

main23209-49265×4i2NRFBE..NSP151201807-201910

main23209-49275×4i3NRFKE..NSP152201911-202004

main23209-49285×4i3NRFKE..NSP152202004-202207

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i1NZFE..NCP150201304-201609

(J)

main90301-07042×4i3NRFKE..NSP152201708-202207

*230 OR *432,*264

main90301-T0051×4i1NZFE..NCP150201506-201609

(L)

23291INSULATOR, INJECTOR VIBRATION

main23291-0H020×4i1NZFE..NCP150..(GCC,GEN,TH)..B201304-201603

(L)

main23291-0Y020×4i1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G201604-201712

*264

main23291-0Y050×4i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE201708-202207

*230 OR *432

main23291-23010×4i2NZFE..NCP151..C201307-201609

main23291-41010×4i1NZFE..NCP150..C201304-201609

(J)

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21090i1NZFE..NCP150..IDN..B201304-201506

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0M040i1NRFE..NSP150..5F..D..C;2NRFE..NSP151..CVT..D..C201801-202108

main23841-0Y030i2NRFE..NSP151..F201803-202101

main23841-0Y050i2NRFE..NSP151..A;1NRFE..NSP150..CVT..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..LHD..5F..GEN..A201708-202207

main23841-36020i2NR#..NSP151..H201807-201910

main23841-37081i3NRFKE..NSP152201911-202207

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-0M010i1NZFE,2NZFE..NCP15#..C201312-201609

main23841-0M030i1NZFE,2NZFE..NCP15#..PH201304-201606

TYPE A:REFER ILLUST.

main23841-0Y040i1NRFE..NSP150..CVT..A;2NRFE,3NRFKE..NSP151,152..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..LHD..5F..GEN..A201708-202207

main23841-0Y060i2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;1NRFE,2NRFE..NSP150,151..(G,R)..C201801-202207

main23841-36010i2NR#..NSP151..H201807-201910

main23841-37090i1NZFE,2NZFE..NCP15#..PH201304-201606

TYPE B:REFER ILLUST.

23891SPACER, FUEL DELIVERY

main23891-21010×2i1NZFE..NCP150..IDN..B201304-201506

main23891-47040×2i2NRFE..NSP151..MA201609-201812

*419

23901TUBE SUB-ASSY, FUEL

main23901-0M040i1NZFE..NCP150..IDN..B201304-201506

main23901-0M070i1NZFE,2NZFE..NCP15#..C201312-201609

main23901-0Y090i3NRFE..NSP152201708-201910

main23901-0Y150i1NRFE..NSP150..5F..G..A;1NRFE..NSP150..5F..GCC..D..A201708-202108

main23901-0Y160i1NRFE..NSP150..C;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..(GCC,IDN)..G..C201610-201712

main23901-0Y170i1NRFE,2NRFE..NSP150,151..E201808-201912

main23901-0Y200i2NR#..NSP151..H201807-201910

main23901-0Y210i2NRFE..NSP151..G201804-201908

main23901-0Y380i3NRFKE..NSP152201911-202207

7701

9010506202

main90105-06202

90105T0087

main90105-T0087

90119T0006

main90119-T0006

9012606031

main90126-06031

91511J0840

main91511-J0840

9155180650

main91551-80650

9155180840

main91551-80840

9162160614

main91621-60614

9167180614

main91671-80614

9415180600

main94151-80600

22 parts on this diagram · 5 diagrams in section
