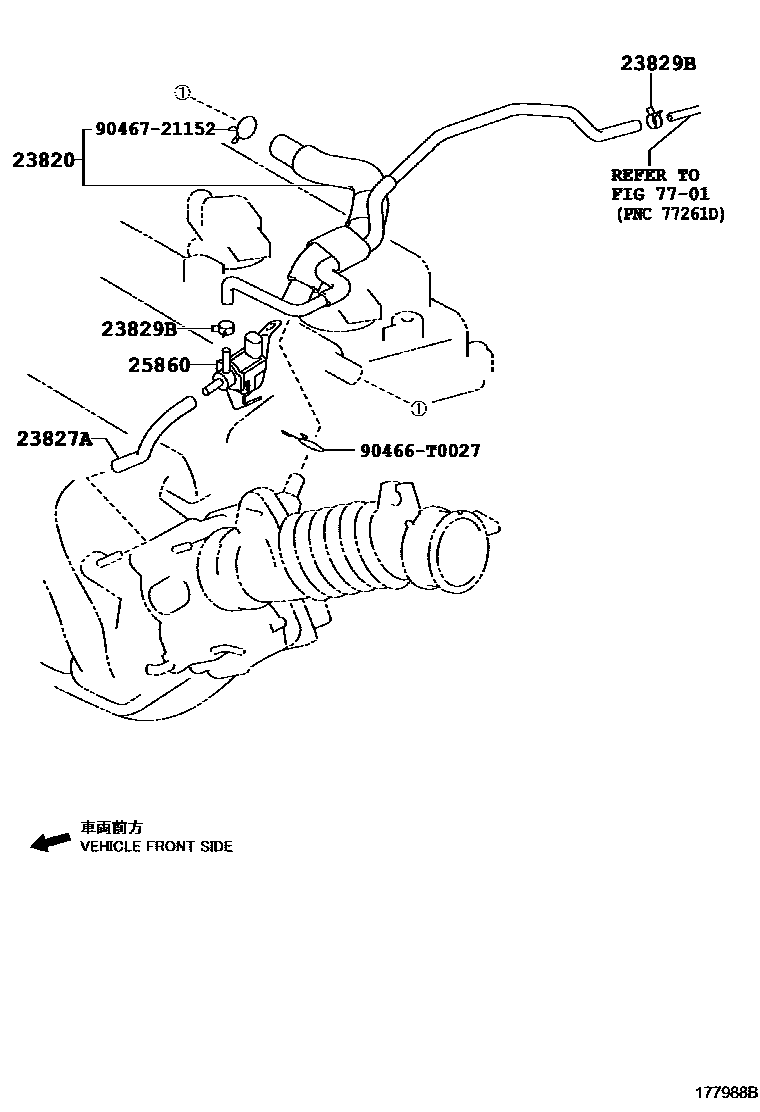

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

23820HOSE ASSY, FUEL VAPOR FEED

main23820-0M051i1NZFE..NCP150..IDN..B201304-201506

main23820-0M070i1NZFE..NCP150..TAIW201404-201604

main23820-0M080i1NZFE,2NZFE..NCP15#..C201312-201609

main23820-0Y100i3NRFKE..NSP152201911-202207

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0M081i1NZFE,2NZFE..NCP15#..MA,VN201304-201608

main23827-0M090i1NZFE..NCP150..TAIW201404-201604

main23827-0M100i1NZFE,2NZFE..NCP15#..C201312-201609

main23827-0Y100i3NRFE..NSP152201708-201910

main23827-0Y140i1NRFE,2NRFE..NSP150,151..GEN201604-201709

main23827-0Y150i2NRFE..NSP151..TAIW201605-201802

main23827-0Y200i2NRFE..NSP151..TH..G..C201610-201707

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-11003×2i1NZFE..NCP150..TAIW201304-201604

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0M021i1NZFE,2NZFE..NCP15#..C201304-201609

main25860-0Y080i3NRFE..NSP152201708-201910

main25860-0Y090i1NRFE,2NRFE..NSP150,151..GEN201604-201709

7701

90466T0027

main90466-T0027

9046721152

main90467-21152

7 parts on this diagram · 8 diagrams in section
