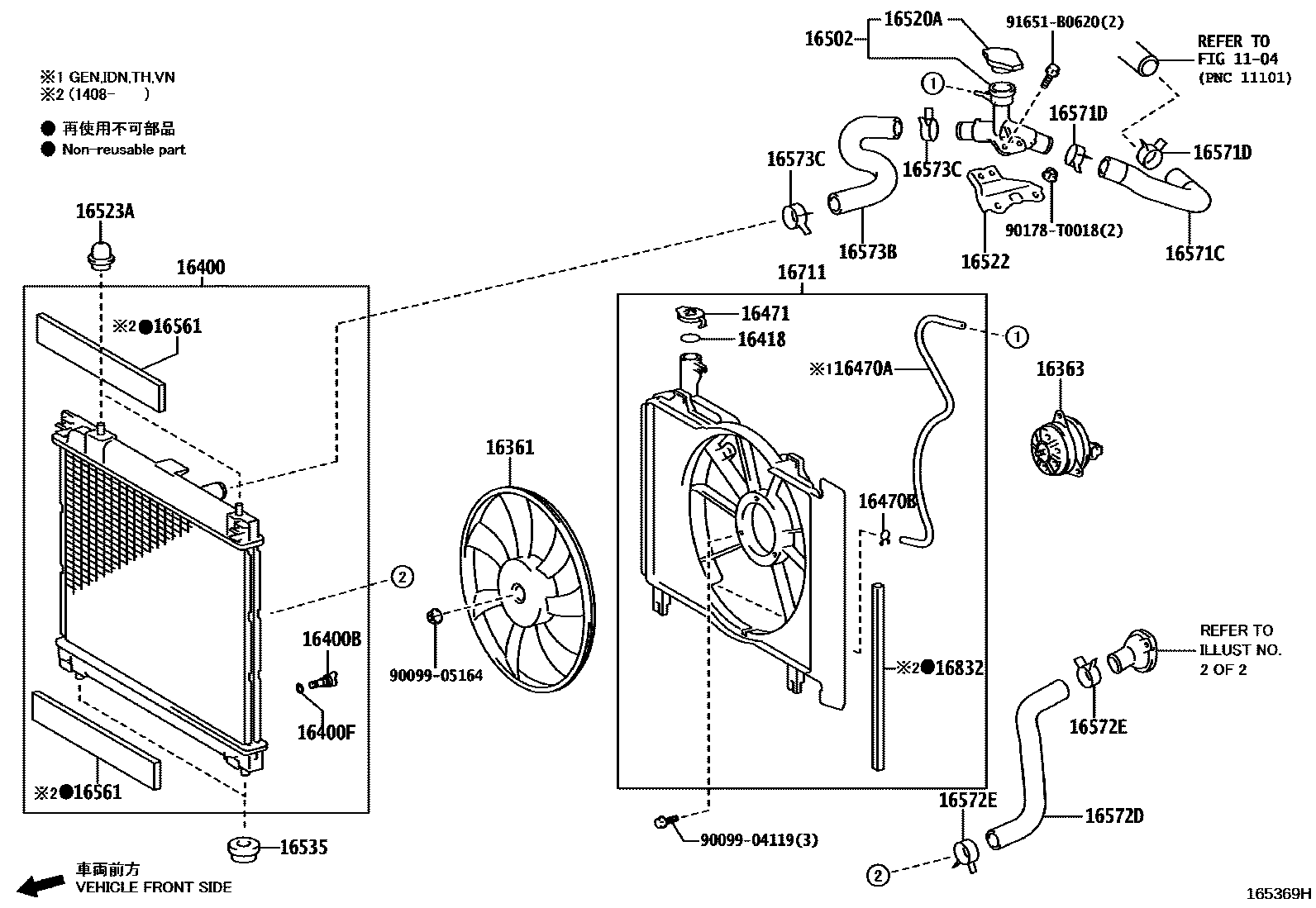

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0015 1 0017 1 0019 1 0020 1 0022 1 0023 1 0024 1

1104

16361FAN

main16361-0M110i1NZFE..NCP150..IDN..B201304-201506

main16361-0M120i1NZFE,2NZFE..NCP15#..C201312-201609

main16361-0M130i2NRFE..NSP151..TAIW201404-201802

main16361-0Y210i2NRFE..NSP151..G201804-201908

main16361-0Y220i2NR#..NSP151..H201807-201910

16363MOTOR, COOLING FAN

main16363-0Y040i3NRFE..NSP152201708-201808

main16363-0Y050i2NRFE..NSP151..TH..G..C201404-201707

main16363-0Y140i3NR#..NSP152;1NRFE,2NRFE..NSP150,151..D201809-202207

16400RADIATOR ASSY

main16400-0M190i1NZFE,2NZFE..NCP15#..5F..(GEN,IDN,TH,VN)..B201304-201608

main16400-0M200i1NZFE,2NZFE..NCP15#..4FC..(GEN,IDN,TH,VN)..B201304-201608

main16400-0M210i2NZFE..NCP151..5F..GCC..B201308-201603

main16400-0M220i1NZFE,2NZFE..NCP15#..4FC..GCC..B201308-201603

main16400-0M230i1NZFE..NCP150..5F..MA201310-201608

main16400-0M240i1NZFE,2NZFE..NCP15#..5F..PH201307-201606

main16400-0M250i1NZFE..NCP150..TAIW201404-201604

main16400-0M260i1NZFE..NCP150..4FC..MA201310-201608

main16400-0M270i1NZFE,2NZFE..NCP15#..4FC..PH201307-201606

main16400-0M280i1NZFE..NCP150..5F..C201312-201609

main16400-0M290i1NZFE..NCP150..RHD..4FC..C201312-201609

main16400-0M300i2NZFE..NCP151..5F..C201402-201609

main16400-0M310i1NZFE,2NZFE..NCP15#..4FC..GCC..C201402-201609

main16400-0Y100i3NR#..NSP152201708-202207

main16400-0Y190i1NRFE..NSP150..5F..GCC;1NRFE,2NRFE..NSP15#..GEN,TH201604-201607

main16400-0Y191i1NRFE..NSP150..5F..G..A;1NRFE..NSP150..5F..GCC..D..A201708-202108

main16400-0Y200i2NRFE..NSP151..MA201901-202011

main16400-0Y210i1NRFE,2NRFE..NSP150,151..PH201607-201806

main16400-0Y220i2NRFE..NSP151..F201803-202101

main16400-0Y231i1NRFE..NSP150..5F..D..C;2NRFE..NSP151..CVT..D..C201801-202108

main16400-0Y240i2NRFE..NSP151..G201804-201908

main16400-0Y250i2NR#..NSP151..H201807-201910

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i1NZFE..NCP150..TAIW201304-201604

sub16417-21280

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-0L060i1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..CVT..GEN..G..A;2NRFE..NSP151..(GEN,TH,VN)..(A,E);1NRFE..NSP150..(GEN,VN)..(D,R)..(A,E)201708-202207

main16492-21050i1NRFE..NSP150..C;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;1NRFE..NSP150..CVT..GCC..B;2NRFE..NSP151..(GCC,IDN)..G201304-201712

16418PACKING

main16476-0H060i1NZFE..NCP150..IDN..B201304-201506

main16476-0M150i1NZFE,2NZFE..NCP15#..C201312-201609

main90069-43014i2NRFE..NSP151..F201803-202101

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-0M110i1NZFE,2NZFE..NCP15#..VN201304-201608

main16377-0M140i1NZFE..NCP150..TAIW201404-201604

main16377-0M150i1NZFE,2NZFE..NCP15#..C201312-201609

main16377-0Y050i3NR#..NSP152201708-202207

main16377-0Y120i2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;1NRFE,2NRFE..NSP150,151..(G,R)..C201801-202207

main16377-0Y240i1NRFE,2NRFE..NSP150,151..GEN201604-201709

main16377-0Y250i2NRFE..NSP151..MA201901-202011

main16377-0Y270i2NRFE..NSP151..F201803-202101

main16377-0Y280i2NRFE..NSP151..G201804-201908

main16377-0Y290i2NR#..NSP151..H201807-201910

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1NZFE,2NZFE..NCP15#..C201304-201609

16471CAP SUB-ASSY, RESERVE TANK

main16376-0M140i2NRFE..NSP151..TAIW201404-201802

main16376-0M150i2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;1NRFE,2NRFE..NSP150,151..(G,R)..C201801-202207

main16376-0Y050i1NRFE,2NRFE..NSP150,151..GEN201304-201709

main16471-23030i2NRFE..NSP151..G201804-201908

16502FILLER SUB-ASSY, WATER

main16502-0M020i1NZFE,2NZFE..NCP15#..C201304-201609

main16502-0M040i1NZFE..NCP150..TAIW201404-201604

16520ACAP SUB-ASSY, WATER FILLER

main16401-0H060i1NZFE,2NZFE..NCP15#..C201304-201609

main16401-31520i1NZFE..NCP150..TAIW201404-201604

16522BRACKET, WATER FILLER

main16522-0M020i1NZFE..NCP150..TAIW201304-201604

16523ACUSHION, RADIATOR SUPPORT

main16523-0M030×2i2NRFE..NSP151..TH..G..C201312-201707

(L)

main16523-0M040×2i2NRFE..NSP151..F201803-202101

(L)

main16523-0M050×2i2NRFE..NSP151..MA201304-201812

(L)

main16523-0Y010×2i2NR#..NSP151..G,H201804-201910

main16523-21030×2i1NZFE..NCP150..IDN..B201304-201506

(J)

16535SUPPORT, RADIATOR, LOWER

main90480-22025×2i1NZFE..NCP150..IDN..B201304-201506

main90480-T0001×2i2NR#..NSP151..G,H201804-201910

main90480-T0008×2i1NZFE..NCP150..TAIW201404-201604

(L)

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-0M010×2i2NRFE..NSP151..TH..G..C201408-201707

main16561-0M040×2i1NZFE,2NZFE..NCP15#..PH201408-201606

main16561-0M060×2i2NRFE..NSP151..MA201608-201812

main16561-0M080×2i2NRFE..NSP151..TAIW201408-201802

main16561-0Y010×2i3NRFE..NSP152;1NRFE,2NR#..NSP150,151..E,G,H,I201708-202406

16571CHOSE, RADIATOR, NO.1

main16571-0M080i1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B201304-201603

main16571-0Y100i1NRFE,2NRFE..NSP15#..5F..C201604-201701

main16571-0Y101i1NRFE,2NRFE,3NRFKE..NSP15#..CVT..A201708-202207

main16571-0Y180i2NRFE..NSP151..TAIW201605-201703

main16571-0Y181i2NRFE..NSP151..F201803-202101

main16571-0Y190i2NRFE..NSP151..5F..B201909-202011

main16571-0Y200i2NRFE..NSP151..CVT..MA201909-202011

main16571-0Y210i2NR#..NSP151..G,H201804-201910

main16571-0Y280i2NRFE..NSP151..5F..C;1NRFE..NSP150..5F..R..C201801-202207

main16571-0Y290i1NRFE..NSP150..CVT..C;2NRFE..NSP151..CVT..(D,R)..C;2NRFE..NSP151..CVT..(GCC,IDN)..G..C201701-201712

16571DCLIP, RADIATOR HOSE, NO.1

main96136-43901×2i2NRFE..NSP151..MA201304-201812

16572DHOSE, RADIATOR, NO.2

main16572-0M090i1NZFE..NCP150..IDN..B201304-201506

main16572-0M091i1NZFE..NCP150..TH..B201509-201603

main16572-0Y080i3NR#..NSP152201708-202207

main16572-0Y150i2NRFE..NSP151..TAIW201605-201703

main16572-0Y151i2NRFE..NSP151..TAIW201704-201802

main16572-0Y160i1NRFE,2NRFE..NSP15#..GCC,GEN,IDN,MA,PH,TH,VN201604-201703

main16572-0Y161i2NRFE..NSP151..TH..G..C201704-201707

main16572-0Y170i2NR#..NSP151..G,H201804-201910

main16572-0Y190i2NRFE..NSP151..MA201909-202011

16572ECLIP, RADIATOR HOSE, NO.2

main96136-43901×2i1NRFE,2NRFE..NSP150,151..PH201304-201806

16573BHOSE, RADIATOR, NO.3

main16573-0M070i2NZFE..NCP151..PH201307-201606

main16573-0M080i1NZFE..NCP150..C201304-201609

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main96136-43901×2i1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B201304-201603

16711SHROUD, FAN

main16711-0M110i1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B201304-201603

main16711-0M120i1NZFE,2NZFE..NCP15#..C201312-201609

main16711-0M130i1NZFE..NCP150..MA201310-201608

main16711-0M140i1NZFE..NCP150..TAIW201404-201604

main16711-0Y061i3NRFE..NSP152201708-201808

main16711-0Y090i2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;1NRFE,2NRFE..NSP150,151..(G,R)..C201801-202207

main16711-0Y160i1NRFE,2NRFE..NSP150,151..VN201604-201807

main16711-0Y170i2NRFE..NSP151..MA201901-202011

main16711-0Y180i1NRFE,2NRFE..NSP150,151..D201807-201808

main16711-0Y190i2NRFE..NSP151..TAIW201605-201802

main16711-0Y200i2NRFE..NSP151..G201804-201908

main16711-0Y210i2NR#..NSP151..H201807-201910

main16711-0Y320i1NRFE,2NRFE..NSP150,151..I202003-202406

main16711-0Y330i3NR#..NSP152201809-202207

main16711-0Y340i2NRFE..NSP151..TH..B201809

main16711-0Y350i1NRFE,2NRFE..NSP150,151..D201809-201910

16832SEAL, FAN SHROUD

main16561-0M020i1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B201408-201603

main16561-0M030i1NZFE,2NZFE..NCP15#..C201408-201609

main16561-0M050i1NZFE..NCP150..TAIW201408-201604

main16561-0M070i1NZFE..NCP150..MA201408-201608

main16561-0M090i1NZFE,2NZFE..NCP15#..PH201408-201606

main16561-0Y020×2i3NRFE..NSP152201708-201809

9009904119

main90099-04119

9009905164

main90099-05164

90178T0018

main90178-T0018

91651B0620

main91651-B0620

28 parts on this diagram · 19 diagrams in section
