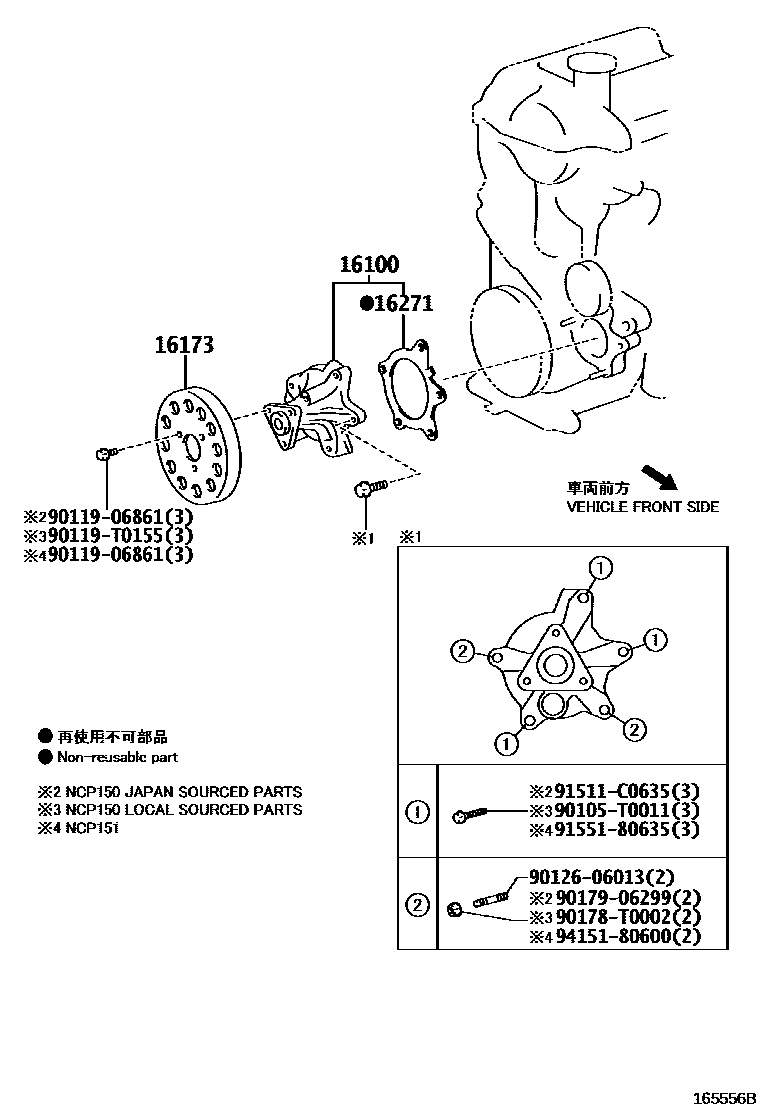

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-09181i1NZFE..NCP150..PH201304-201609

(L)

main16100-09211i1NZFE..NCP150..TAIW201404-201604

(L)

main16100-09730i2NR#..NSP151..H201807-201910

main16100-09770i2NRFE..NSP151..MA201607-202207

*230 OR *432

main16100-09770i3NRFKE..NSP152201911-202207

main16100-29157i1NZFE..NCP150..TAIW201304-201609

(J)

sub16100-29158

main16100-29157i2NZFE..NCP151..(GCC,GEN)..B201307-201609

sub16100-29158

main16100-B9490i2NRFE..NSP151..F201604-202207

*264

main16100-B9490i2NRFE..NSP151..MA201609-202011

*419

main16100-B9490i1NRFE,2NRFE..NSP150,151..I202003-202406

16173PULLEY, WATER PUMP

main16173-0M010i1NZFE..NCP150..MA,VN201304-201609

(L)

main16173-0M010i1NZFE..NCP150..TAIW201404-201604

main16173-21020i1NZFE..NCP150..MA,VN201304-201609

(J)

sub16173-21021

main16173-21020i2NZFE..NCP151..VN201307-201609

sub16173-21021

16271GASKET, WATER PUMP

main16271-0Y030i1NRFE,2NRFE..NSP150,151..PH201604-202207

*264

main16271-0Y030i2NRFE..NSP151..MA201609-202011

*419

main16271-0Y030i1NRFE,2NR#..NSP150,151..H,I201807-202406

main16271-0Y040i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)201607-202207

*230 OR *432

main16271-0Y040i3NRFKE..NSP152201911-202207

main16271-21021i1NZFE..NCP150..IDN..B201304-201609

90105T0011

main90105-T0011

9011906861

main90119-06861

90119T0155

main90119-T0155

9012606013

main90126-06013

90178T0002

main90178-T0002

9017906299

main90179-06299

91511C0635

main91511-C0635

9155180635

main91551-80635

9415180600

main94151-80600

12 parts on this diagram · 2 diagrams in section
