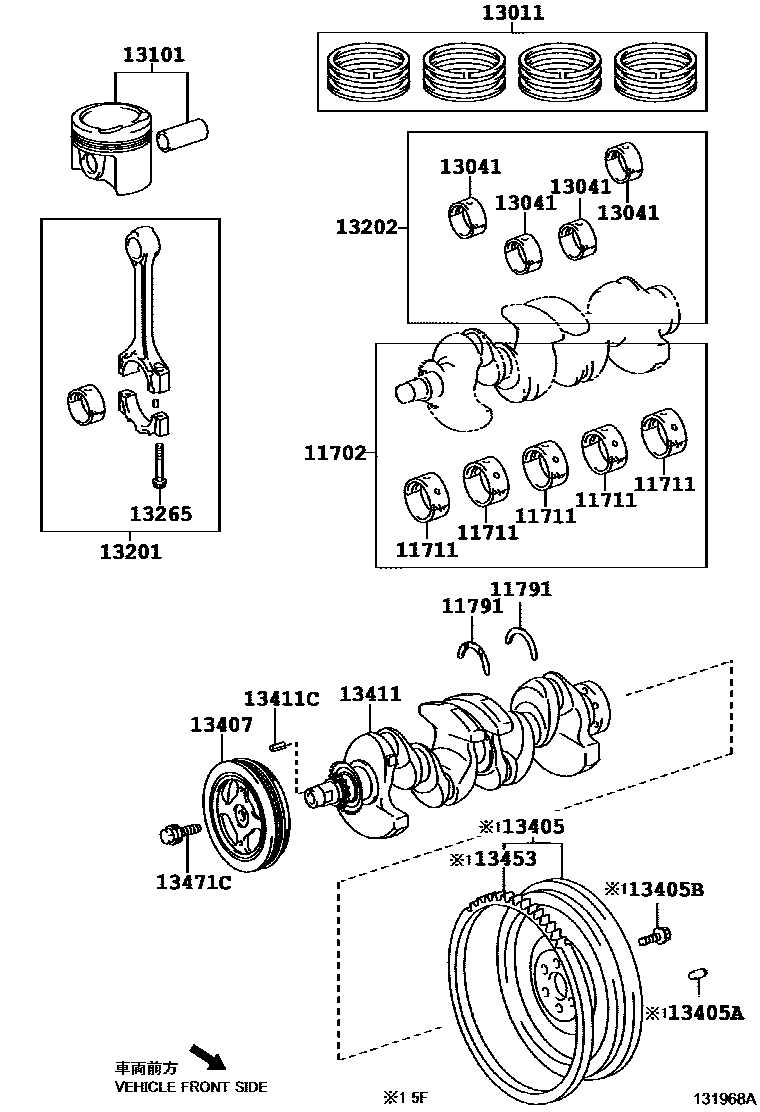

CRANKSHAFT & PISTON

0001 1 0002 1

11702BEARING SET, CRANKSHAFT

main11704-21020i1NZFE..NCP150..PH¥17,200201304-201609

U/S 0.25

main11704-21031i2NZFE..NCP151¥18,600201307-201308

U/S 0.25

sub11704-21032¥18,600

main11704-21032i2NZFE..NCP151¥18,600201308-201401

U/S 0.25

main11704-21033i2NZFE..NCP151..C¥11,700201401-201609

U/S 0.25

11711BEARING, CRANKSHAFT

main11701-0M020-01i1NZFE..NCP150201304-201311

MARK1,(L),REFER R/M

sub11701-0M030

main11701-0M020-02i1NZFE..NCP150201304-201311

MARK2,(L),REFER R/M

sub11701-0M030

main11701-0M020-03i1NZFE..NCP150201304-201311

MARK3,(L),REFER R/M

sub11701-0M030

main11701-0M020-04i1NZFE..NCP150201304-201311

MARK4,(L),REFER R/M

sub11701-0M030

main11701-0M030-01i1NZFE..NCP150201311-201407

MARK 1,(L),REFER R/M

sub11701-0M031

main11701-0M030-02i1NZFE..NCP150201311-201407

MARK 2,(L),REFER R/M

sub11701-0M031

main11701-0M030-03i1NZFE..NCP150201311-201407

MARK 3,(L),REFER R/M

sub11701-0M031

main11701-0M030-04i1NZFE..NCP150201311-201407

MARK 4,(L),REFER R/M

sub11701-0M031

main11701-0M031-01i1NZFE..NCP150..IDN..B201408-201609

MARK 1,(L),REFER R/M

main11701-0M031-02i1NZFE..NCP150..TAIW201408-201609

MARK 2,(L),REFER R/M

main11701-0M031-03i1NZFE..NCP150..(GCC,GEN,TH)..B201408-201609

MARK 3,(L),REFER R/M

main11701-0M031-04i1NZFE..NCP150..C201408-201609

MARK 4,(L),REFER R/M

main11701-0Y030-02i2NRFE..NSP151..A;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C201708-202207

MARK2,(L),REFER R/M

main11701-0Y030-02i2NRFE..NSP151..A;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C201708-202406

MARK2,REFER REPAIR MANUAL

main11701-0Y030-02i1NRFE,2NRFE..NSP150,151..GEN201604-201812

MARK2,*264:REFER R/M

main11701-0Y030-02i2NRFE..NSP151..MA201609-202011

MARK2,*419:REFER R/M

main11701-0Y030-02i2NRFE..NSP151..F201708-202108

MARK2,(L),REFER R/M,REFER REPAIR MANUAL

main11701-0Y030-03i1NRFE,2NRFE..NSP150,151..VN201604-201812

MARK3,*264:REFER R/M

main11701-0Y030-03i2NRFE..NSP151..F201708-202108

MARK3,(L),REFER R/M,REFER REPAIR MANUAL

main11701-0Y030-03i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE201708-202207

MARK3,(L),REFER R/M

main11701-0Y030-03i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE201708-202406

MARK3,REFER REPAIR MANUAL

main11701-0Y030-03i2NRFE..NSP151..MA201609-202011

MARK3,*419:REFER R/M

main11701-0Y030-04i2NRFE..NSP151..TH..G..C201604-201812

MARK4,*264:REFER R/M

main11701-0Y030-04i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE201708-202207

MARK4,(L),REFER R/M

main11701-0Y030-04i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)201708-202108

MARK4,(L),REFER R/M,REFER REPAIR MANUAL

main11701-0Y030-04i2NRFE..NSP151..MA201609-202011

MARK4,*419:REFER R/M

main11701-0Y030-04i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE201708-202406

MARK4,REFER REPAIR MANUAL

main11701-0Y030-05i2NRFE..NSP151..F201708-202108

MARK5,(L),REFER R/M,REFER REPAIR MANUAL

main11701-0Y030-05i2NRFE..NSP151..AGT,IND,MA,PKN;1NRFE,2NRFBE..NSP150,151..D,E,H,I;2NRFE..NSP151..(GEN,PH,VN)..(D,E,H)201708-202406

MARK5,REFER REPAIR MANUAL

main11701-0Y030-05i2NRFE..NSP151..TH..G..C201604-201812

MARK5,*264:REFER R/M

main11701-0Y030-05i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE201708-202207

MARK5,(L),REFER R/M

main11701-0Y030-05i2NRFE..NSP151..MA201609-202011

MARK5,*419:REFER R/M

main11701-0Y040-02i3NRFKE..NSP152201911-202207

MARK2,REFER REPAIR MANUAL

main11701-0Y040-03i3NRFKE..NSP152201911-202207

MARK3,REFER REPAIR MANUAL

main11701-0Y040-04i3NRFKE..NSP152201911-202207

MARK4,REFER REPAIR MANUAL

main11701-0Y040-05i3NRFKE..NSP152201911-202207

MARK5,REFER REPAIR MANUAL

main11701-21020-01i1NZFE..NCP150..C;1NZFE..NCP150..MA,PH,TAIW,VN201304-201604

MARK 1,(J),REFER R/M

main11701-21020-02i1NZFE..NCP150..(GCC,GEN,TH)..B201304-201604

MARK 2,(J),REFER R/M

main11701-21020-03i1NZFE..NCP150..IDN..B201304-201604

MARK 3,(J),REFER R/M

main11701-21020-04i1NZFE..NCP150..(GCC,GEN,TH)..B201304-201604

MARK 4,(J),REFER R/M

main11701-21031-01i2NZFE..NCP151201307-201308

MARK1,REFER REPAIR MANUAL

sub11701-21032¥3,110

main11701-21031-02i2NZFE..NCP151201307-201308

MARK2,REFER REPAIR MANUAL

sub11701-21032¥3,110

main11701-21031-03i2NZFE..NCP151201307-201308

MARK3,REFER REPAIR MANUAL

sub11701-21032¥3,110

main11701-21031-04i2NZFE..NCP151201307-201308

MARK4,REFER REPAIR MANUAL

sub11701-21032¥3,110

main11701-21032-01i2NZFE..NCP151201308-201312

MARK 1,REFER REPAIR MANUAL

main11701-21032-02i2NZFE..NCP151201308-201312

MARK 2,REFER REPAIR MANUAL

main11701-21032-03i2NZFE..NCP151201308-201312

MAKR 3,REFER REPAIR MANUAL

main11701-21032-04i2NZFE..NCP151201308-201312

MARK 4,REFER REPAIR MANUAL

main11701-21033-01i2NZFE..NCP151..C201401-201609

MARK 1,REFER REPAIR MANUAL

main11701-21033-02i2NZFE..NCP151..C201401-201609

MARK 2,REFER REPAIR MANUAL

main11701-21033-03i2NZFE..NCP151..VN201401-201609

MARK 3,REFER REPAIR MANUAL

main11701-21033-04i2NZFE..NCP151..VN201401-201609

MARK 4,REFER REPAIR MANUAL

main11701-47012-02i1NRFE,2NRFE..NSP15#201607-201703

MARK2,*230 OR *432:*RRM

sub11701-47013¥2,600

main11701-47012-03i1NRFE,2NRFE..NSP15#201607-201703

MARK3,*230 OR *432:*RRM

sub11701-47013¥2,600

main11701-47012-04i1NRFE,2NRFE..NSP15#201607-201703

MARK4,*230 OR *432:*RRM

sub11701-47013¥2,600

main11701-47012-05i1NRFE,2NRFE..NSP15#201607-201703

MARK5,*230 OR *432:*RRM

sub11701-47013¥2,600

main11701-47013-02i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE201708-202207

MARK2,(J),REFER R/M

sub11701-47032¥2,160

sub11701-47013¥2,600

main11701-47013-02i2NRFE..NSP151..TH..B201704-201812

MARK2,*230 OR *432:*RRM

sub11701-47032¥2,160

sub11701-47013¥2,600

main11701-47013-03i1NRFE,2NRFE..NSP150,151..VN201704-201812

MARK3,*230 OR *432:*RRM

sub11701-47032¥2,160

sub11701-47013¥2,600

main11701-47013-03i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)201708-202207

MARK3,(J),REFER R/M

sub11701-47032¥2,160

sub11701-47013¥2,600

main11701-47013-04i1NRFE,2NRFE..NSP150,151..GEN201704-201812

MARK4,*230 OR *432:*RRM

sub11701-47032¥2,160

sub11701-47013¥2,600

main11701-47013-04i2NRFE..NSP151..F201708-202207

MARK4,(J),REFER R/M

sub11701-47032¥2,160

sub11701-47013¥2,600

main11701-47013-05i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE201708-202207

MARK5,(J),REFER R/M

sub11701-47032¥2,160

sub11701-47013¥2,600

main11701-47013-05i2NRFE..NSP151..TH..B201704-201812

MARK5,*230 OR *432:*RRM

sub11701-47032¥2,160

sub11701-47013¥2,600

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-0M020i1NZFE..NCP150..C201304-201609

STD,(L)

main11791-0Y010i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)201607-202207

STD,*230 OR *432

main11791-0Y010i2NR#..NSP151..H201807-201910

STD

main11791-0Y040i2NRFE..NSP151..TH..G..C201604-202207

STD,*264

main11791-0Y040i1NRFE,2NRFE..NSP150,151..I202003-202406

STD

main11791-22020i1NZFE..NCP150..IDN..B¥1,740201304-201604

STD,(J)

main11791-22020i2NZFE..NCP151¥1,740201307-201310

STD

main11791-47031i3NRFKE..NSP152¥1,740201911-202207

STD

main11791-B0010i2NRFE..NSP151..MA¥1,740201609-202011

STD,*419

main11792-22020i2NZFE..NCP151¥2,790201304-201609

O/S 0.125

main11792-37010i2NZFE..NCP151..PH¥1,740201310-201609

O/S 0.125

main11793-22020i1NZFE..NCP150..(GCC,GEN,TH)..B¥2,790201304-201609

O/S 0.25

main11793-37010i2NZFE..NCP151..(GCC,GEN)..B¥1,740201310-201609

O/S 0.25

13011RING SET, PISTON

main13011-0M010i1NZFE..NCP150..TAIW201304-201510

STD

main13011-0M020i1NZFE..NCP150..TH..B201304-201609

STD

main13011-0Y030i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)¥9,800201708-202207

STD,*230 OR *432,*264

main13011-0Y030i2NRFE..NSP151..TH..G..C¥9,800201604-201812

STD,*264

main13011-0Y030i2NRFE..NSP151..TH..G..C¥9,800201607-201812

STD,*230 OR *432

main13011-0Y030i2NRFE..NSP151..MA¥9,800201609-202011

STD,*419

main13011-0Y030i1NRFE,2NRFE..NSP150,151..H,I¥9,800201807-202406

STD

main13011-0Y090i2NRFBE..NSP151201807-201910

STD

main13011-0Y130i3NRFKE..NSP152201911-202207

STD

main13011-21050i2NZFE..NCP151¥12,900201307-201506

STD

main13011-21140i1NZFE..NCP150..TAIW201505-201609

STD

main13011-47033i3NRFE..NSP152¥9,800201708-201910

STD

13041BEARING, CONNECTING ROD

main13041-0M011-01i1NZFE..NCP150201304-201407

MARK1,(L),REFER R/M

sub13041-0M012

main13041-0M011-02i1NZFE..NCP150201304-201407

MARK2,(L),REFER R/M

sub13041-0M012

main13041-0M011-03i1NZFE..NCP150201304-201407

MARK3,(L),REFER R/M

sub13041-0M012

main13041-0M012-01i1NZFE..NCP150..PH201408-201609

MARK 1,(L),REFER R/M

main13041-0M012-02i1NZFE..NCP150..IDN..B201408-201609

MARK 2,(L),REFER R/M

main13041-0M012-03i1NZFE..NCP150..IDN..B201408-201609

MARK 3,(L),REFER R/M

main13041-0Y040-01i2NRFE..NSP151..MA201609-202011

MARK1,*419:REFER R/M

main13041-0Y040-01i2NRFE..NSP151..TH..G..C201604-202207

MARK1,*264:REFER R/M

main13041-0Y040-01i2NRFE..NSP151..TH..G..C201607-202207

MARK1,*230 OR *432:*RRM

main13041-0Y040-01i2NRFE..NSP151..F201708-202108

MARK1,*264:REFER R/M,*230 OR *432:*RRM

main13041-0Y040-01i1NRFE,2NR#..NSP150,151..H,I201807-202406

MARK1,REFER REPAIR MANUAL

main13041-0Y040-02i1NRFE,2NRFE..NSP150,151..PH201607-202207

MARK2,*230 OR *432:*RRM

main13041-0Y040-02i1NRFE,2NRFE..NSP150,151..VN201604-202207

MARK2,*264:REFER R/M

main13041-0Y040-02i2NRFE..NSP151..F201708-202108

MARK2,*264:REFER R/M,*230 OR *432:*RRM

main13041-0Y040-02i2NRFE..NSP151..MA201609-202011

MARK2,*419:REFER R/M

main13041-0Y040-02i1NRFE,2NR#..NSP150,151..H,I201807-202406

MARK2,REFER REPAIR MANUAL

main13041-0Y040-03i1NRFE,2NR#..NSP150,151..H,I201807-202406

MARK3,REFER REPAIR MANUAL

main13041-0Y040-03i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)201708-202108

MARK3,*264:REFER R/M,*230 OR *432:*RRM

main13041-0Y040-03i2NRFE..NSP151..TH..G..C201604-202207

MARK3,*264:REFER R/M

main13041-0Y040-03i2NRFE..NSP151..TH..G..C201607-202207

MARK3,*230 OR *432:*RRM

main13041-0Y040-03i2NRFE..NSP151..MA201609-202011

MARK3,*419:REFER R/M

main13041-21022-01i2NZFE..NCP151201307-201308

MARK1,REFER REPAIR MANUAL

sub13041-21023¥2,210

main13041-21022-01i1NZFE..NCP150201304-201308

MARK1,(J),REFER R/M

sub13041-21023¥2,210

main13041-21022-02i2NZFE..NCP151201307-201308

MARK2,REFER REPAIR MANUAL

sub13041-21023¥2,210

main13041-21022-02i1NZFE..NCP150201304-201308

MARK2,(J),REFER R/M

sub13041-21023¥2,210

main13041-21022-03i1NZFE..NCP150201304-201308

MARK3,(J),REFER R/M

sub13041-21023¥2,210

main13041-21022-03i2NZFE..NCP151201307-201308

MARK3,REFER REPAIR MANUAL

sub13041-21023¥2,210

main13041-21033-01i2NZFE..NCP151..C201308-201609

MARK 1,REFER REPAIR MANUAL

main13041-21033-01i1NZFE..NCP150..IDN..B201308-201604

MARK 1,(J),REFER R/M

main13041-21033-02i1NZFE..NCP150..(GCC,GEN,TH)..B201308-201604

MARK 2,(J),REFER R/M

main13041-21033-02i2NZFE..NCP151..PH201308-201609

MARK 2,REFER REPAIR MANUAL

main13041-21033-03i2NZFE..NCP151..PH201308-201609

MARK 3,REFER REPAIR MANUAL

main13041-21033-03i1NZFE..NCP150..IDN..B201308-201604

MARK 3,(J),REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-0M030i1NZFE..NCP150..IDN..B201304-201510

STD

main13101-0M040i1NZFE..NCP150..(GCC,GEN)..B201304-201609

STD

main13101-0Y010i3NRFE..NSP152201708-201910

STD

main13101-0Y070i3NRFKE..NSP152201911-202207

STD

main13101-0Y120i2NRFE..NSP151..TAIW201607-202207

STD,*230 OR *432

main13101-0Y120i2NRFE..NSP151..MA201609-202011

STD,*419

main13101-0Y130i1NRFE..NSP150..5F..G..A;1NRFE..NSP150..5F..GCC..D..(A,C)201607-202207

STD,*230 OR *432

main13101-21080i2NZFE..NCP151..C¥5,200201307-201609

STD

13201ROD SUB-ASSY, CONNECTING

main13201-09C20i2NRFE..NSP151..GEN201604-202207

*264

main13201-09C20i2NRFE..NSP151..MA201609-202011

*419

main13201-09C20i2NRFE..NSP151..I202003-202406

main13201-09C30i1NRFE..NSP150..PH201604-202207

*264

main13201-09C30i1NRFE..NSP150..I202003-202406

main13201-09C50i2NR#..NSP151..H201807-201910

main13201-09C60i2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G201607-202207

*230 OR *432

main13201-09C70i1NRFE..NSP150..PH201607-202207

*230 OR *432

main13201-29715i2NZFE..NCP151¥10,100201307-201308

sub13201-29716¥9,300

main13201-29716i2NZFE..NCP151¥9,300201308-201401

sub13201-29717¥7,700

main13201-29717i2NZFE..NCP151..(GCC,GEN)..B¥7,700201401-201609

main13201-29735i1NZFE..NCP150¥11,400201304-201308

sub13201-29736¥11,400

main13201-29736i1NZFE..NCP150¥11,400201308-201403

sub13201-29737¥9,400

main13201-29757i1NZFE..NCP150..MA,VN¥7,100201403-201609

13202BEARING SET, CONNECTING ROD

main13204-21022i1NZFE,2NZFE..NCP15#¥9,800201304-201308

U/S 0.25

sub13204-21023¥9,800

main13204-21033i1NZFE..NCP150..IDN..B¥6,100201308-201609

U/S 0.25

13265BOLT, CONNECTING ROD

main13265-0Y010i2NRFE..NSP151..5F..D..C;1NRFE..NSP150..GCC..(G,R);1NRFE..NSP150..CVT..GEN..G;1NRFE..NSP150..CVT..GCC..D;2NRFE..NSP151..(IDN,TH)..(G,R)..(A,C);1NRFE,3NR#..NSP150,152201908-202207

(L),*230 OR *432

main13265-0Y020i1NRFE,2NRFE..NSP150,151..I202003-202406

(L)

main13265-0Y020i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D201904-202207

(L),*264

main13265-0Y020i2NRFE..NSP151..MA201912-202011

*419

main13265-21020i2NRFE..NSP151..TH..B¥300201904-202207

(J),*264

main13265-21020i2NRFE..NSP151..TH..B¥300201908-202207

(J),*230 OR *432

main13265-21020i2NRFE..NSP151..GCC..C;1NRFE..NSP150..A,C,D,E;2NRFE..NSP151..LHD..GEN..A;2NRFE..NSP151..RHD..(GEN,IDN,IND,MA);2NRFE..NSP151..(GCC,PH,TAIW,TH,VN)..(A,D,E,F)¥300201604-201904

*264

main13265-21020i2NRFE..NSP151..GCC..C;2NRFE..NSP151..LHD..GEN..A;1NRFE,3NRFE..NSP150,152..A,C,D,E;2NRFE..NSP151..RHD..(GEN,IDN,IND,MA);2NRFE..NSP151..(GCC,PH,TAIW,TH,VN)..(A,D,E,F)¥300201607-201908

*230 OR *432

main13265-21020i2NR#..NSP151..H¥300201304-201910

main13265-21020i2NRFE..NSP151..MA¥300201609-201912

*419

main13265-21020i1NRFE,2NRFE..NSP150,151..I¥300202003-202406

(J)

13405FLYWHEEL SUB-ASSY

main13405-0M010i1NZFE..NCP150..5F..(MA,VN)201304-201609

main13405-0Y080i2NRFE..NSP151..5F..PH201604-201812

*264

main13405-0Y080i2NRFE..NSP151..5F..GEN201607-201812

*230 OR *432

main13405-0Y080i2NRFE..NSP151..5F..MA201609-202011

*419

main13405-0Y080i2NRFE..NSP151..5F..(D,E);2NRFE..NSP151..MTM..(GEN,IDN,IND,MA)..(A,B,C,G)201710-202207

*230 OR *432,*264

main13405-0Y100i2NR#..NSP151..6F..H201807-201910

main13405-0Y110i1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..LHD..5F..(GEN,PH,VN)..(A,D,E)201710-202207

*230 OR *432,*264

main13405-0Y110i1NRFE..NSP150..5F..PH201607-201807

*230 OR *432

main13405-0Y110i1NRFE..NSP150..VN201604-201807

*264

main13405-0Y150i1NRFE..NSP150..5F..I202003-202406

main13405-0Y160i2NRFE..NSP151..5F..I202003-202406

main13405-21020i2NZFE..NCP151..5F..C¥19,800201307-201609

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120i2NRFE..NSP151..5F..B¥140201609-202011

L=18,OD=8,*419

main90250-08120i2NZFE..NCP151..5F..(GCC,GEN)..B¥140201307-201609

L=18,OD=8

main90250-T0007i1NZFE..NCP150..5F..(GEN,TH)..B201304-202406

L=18,OD=8

main90250-T0007i1NRFE,2NRFE..NSP150,151..5F..GEN201604-201812

L=18,OD=8,*264

main90250-T0007i1NRFE,2NRFE..NSP150,151..5F..GEN201607-201812

L=18,OD=8,*230 OR *432

main90250-T0007i1NRFE..NSP150..5F..G..A;1NRFE..NSP150..5F..GCC..D..(A,C)201710-202207

L=18,OD=8,*230 OR *432,*264

13405BBOLT, FLYWHEEL SETTING

main90913-01024i2NZFE..NCP151..VN¥100201307-201609

main90913-01029i2NRFE..NSP151..5F..MA¥110201607-201812

*230 OR *432

main90913-01029i1NRFE,2NRFE..NSP150,151..5F..(GCC,IDN,TH)¥110201604-201812

*264

main90913-01029i2NRFE..NSP151..5F..MA¥110201609-202011

*419

main90913-01029i1NRFE..NSP150..5F..G..A;1NRFE..NSP150..5F..GCC..D..(A,C)¥110201710-202207

*230 OR *432,*264

main90913-01029i1NRFE,2NR#..NSP150,151..MTM..(H,I)¥110201807-202406

main90913-T1001i1NZFE..NCP150..5F..C¥170201304-201609

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21032i1NZFE,2NZFE..NCP15#..C¥8,700201304-201609

13411CRANKSHAFT

main13401-0Y120i2NR#..NSP151..H201807-201910

(L)

main13401-0Y140i2NRFE..NSP151..TAIW201604-202207

*264

main13401-0Y140i2NRFE..NSP151..I202003-202406

main13401-0Y150i2NRFE..NSP151..PH201607-202207

*230 OR *432

main13401-0Y160i3NR#..NSP152201708-202207

main13401-0Y170i1NRFE..NSP150..PH201607-202207

*230 OR *432

main13401-0Y180i1NRFE..NSP150..5F..G..A;1NRFE..NSP150..5F..GCC..D..(A,C)201604-202207

*264

main13401-0Y180i1NRFE..NSP150..I202003-202406

main13401-21020i1NZFE..NCP150..IDN..B¥52,100201304-201609

main13401-21030i2NZFE..NCP151..PH¥63,300201307-201609

main13401-47090i2NR#..NSP151..H¥52,100201807-201910

(J)

main13401-BZ100i2NRFE..NSP151..MA¥52,100201609-202011

*419

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-03095i1NZFE,2NZFE..NCP15#..C¥70201605-201609

main90254-03025i1NZFE,2NZFE..NCP15#..(GCC,GEN,TH)..B¥120201304-201604

sub90250-03095¥70

13453GEAR, FLYWHEEL RING

main13453-0M010i1NZFE..NCP150..5F..(GEN,TH)..B201304-201609

main13453-0Y050i1NRFE,2NRFE..NSP150,151..5F..VN201604-201812

*264

main13453-0Y050i1NRFE,2NRFE..NSP150,151..5F..GEN201607-201812

*230 OR *432

main13453-0Y050i1NRFE..NSP150..5F..G..A;1NRFE..NSP150..5F..GCC..D..(A,C)201710-202207

*230 OR *432,*264

main13453-10010i2NZFE..NCP151..5F..C¥4,560201307-202406

13471PULLEY, CRANKSHAFT

main13470-0Y020i1NRFE,2NR#..NSP150,151..H,I201807-202406

main13470-0Y020i2NRFE..NSP151..TH..G..C201604-202207

*264

main13470-0Y020i2NRFE..NSP151..MA201609-202011

*419

main13470-0Y030i2NRFE..NSP151..MA201607-202207

*230 OR *432

main13470-0Y040i3NR#..NSP152201708-202207

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i1NZFE,2NZFE..NCP15#..C¥240201304-201609

main90119-T0444i2NRFE..NSP151..TAIW201606-201812

*264

sub90119-T0529

main90119-T0444i2NRFE..NSP151..TH..G..C201607-201812

*230 OR *432

sub90119-T0529

main90119-T0444i2NRFE..NSP151..MA201609-202011

*419

sub90119-T0529

main90119-T0444i2NRFE..NSP151..F201708-202207

*230 OR *432,*264

sub90119-T0529

main90119-T0444i3NRFE..NSP152;1NRFE,2NR#..NSP150,151..H,I201708-202406

sub90119-T0529

main90119-T0529i2NRFE..NSP151..TAIW201604-201606

*264

sub90119-T0444

18 parts on this diagram · 2 diagrams in section
