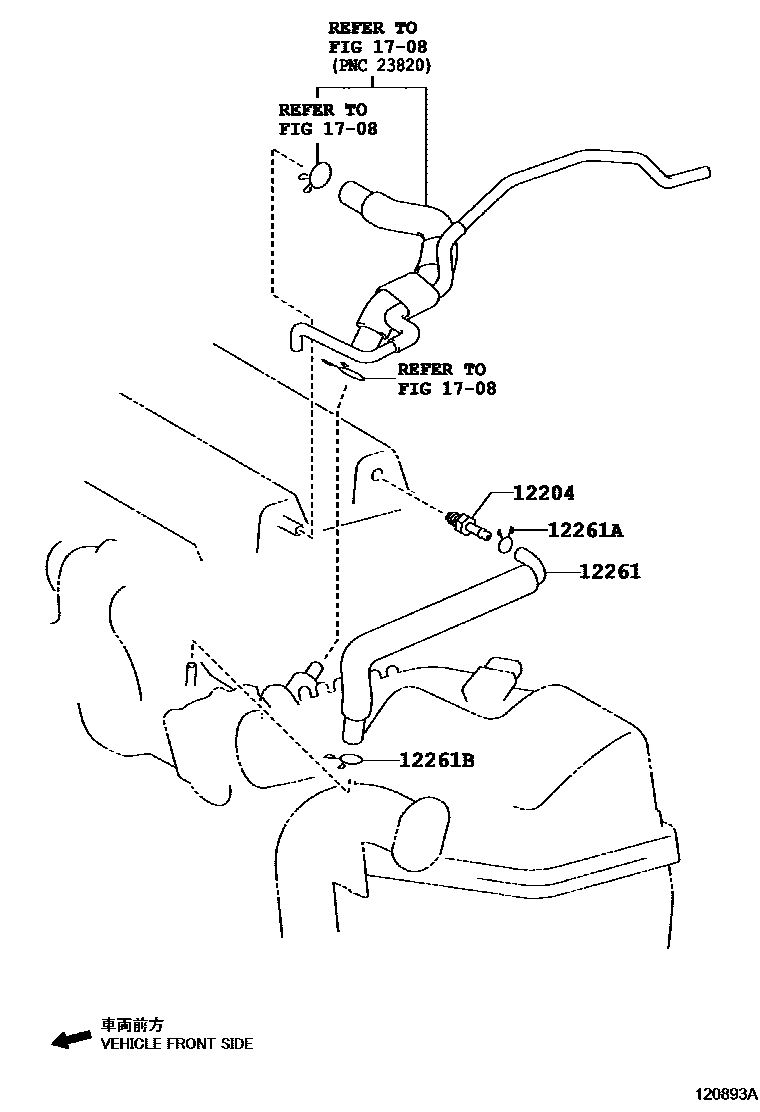

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

12204VALVE SUB-ASSY, VENTILATION

main12204-0Y020i1NRFE,2NR#..NSP150,151..(AGT,BZ,GEN,MA,PKN)..(B,H,I)201807-202406

main12204-0Y020i1NRFE,2NRFE..NSP150,151..VN201607-201812

*230 OR *432

main12204-0Y020i2NRFE..NSP151..MA201604-201812

*264

main12204-0Y020i2NRFE..NSP151..MA201609-201812

*419

main12204-0Y020i2NRFE..NSP151..F201708-202207

*230 OR *432,*264

main12204-0Y040i3NRFKE..NSP152201911-202207

main12204-0Y050i3NRFE..NSP152201708-201910

main12204-21012i1NZFE..NCP150201304-201305

sub12204-21013

main12204-21013i1NZFE,2NZFE..NCP15#..MA,VN201305-201609

12261HOSE, VENTILATION

main12261-0M010i1NZFE..NCP150201304-201609

(L)

main12261-0Y040i1NRFE,2NRFE..NSP15#201604-201609

*264

sub12261-0Y041

main12261-0Y041i1NRFE,2NR#..NSP150,151..H,I201807-202406

main12261-0Y041i2NRFE..NSP151..MA201609-202011

*419

main12261-0Y041i1NRFE,2NRFE..NSP150,151..B,C201609-202207

*264

main12261-0Y050i1NRFE,2NRFE..NSP150,151..B,C201607-202207

*230 OR *432

main12261-0Y081i3NRFE..NSP152201708-201910

main12261-21030i1NZFE..NCP150201304-201604

(J)

main12261-21030i2NZFE..NCP151201307-201609

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-T0060i1NRFE,2NRFE..NSP150,151..B,C201607-202207

*230 OR *432

main90466-T0060i3NRFE..NSP152201708-201910

main90466-T0061i2NRFE..NSP151..MA201609-202011

*419

main90466-T0061i1NRFE,2NR#..NSP150,151..H,I201807-202406

main90466-T0061i2NRFE..NSP151..CVT..MA..D201604-202207

*264

main90467-15120i1NZFE,2NZFE..NCP15#201304-201609

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-23003i2NZFE..NCP151201307-201609

main90466-T0032i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)201607-202207

*230 OR *432

main90466-T0032i3NRFE..NSP152201708-201910

main90466-T0062i2NRFE..NSP151..MA201609-202011

*419

main90466-T0062i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)201604-202207

*264

main90466-T0062i1NRFE,2NR#..NSP150,151..H,I201807-202406

main90467-24038i1NZFE..NCP150201304-201609

1708

5 parts on this diagram · 4 diagrams in section
