HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR

5501

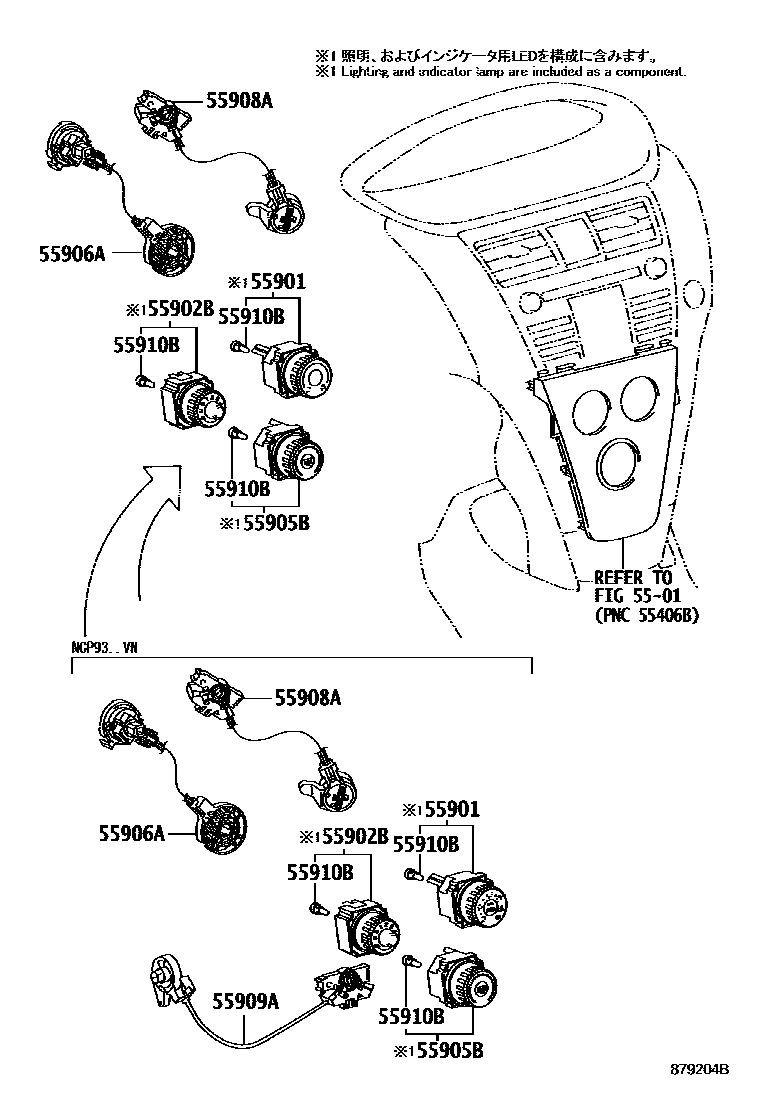

55901BASE SUB-ASSY, HEATER CONTROL

main55901-0D030iNCP93..VN200709-201004

main55901-0D050iNCP93..RHD..(15E,15G,15J,LIMO)200702-201003

main55901-0D070iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

main55901-0D180iNCP9#..(13E,13J,15E,15G,15J,E,G,J,LIMO)..(IDN,MA,PH,TH)201003-201310

main55901-0D190iNCP93..S201004-201310

main55901-0D240iNCP93..VN201004

55902BCONTROL SUB-ASSY, HEATER

main55902-0D040iNCP93..RHD..(15E,15G,15J,LIMO)200702-201003

main55902-0D060iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

main55902-0D140iNCP9#..13E,13J,15E,15G,15J,E,G,J,LIMO201003

main55902-0D150iNCP93..S201004-201310

55905BKNOB, HEATER CONTROL, NO.2

main55903-0D030iNCP93..VN200709-201004

main55903-0D050iNCP9#..(13E,13J,15G,E,G,J)..(MA,PH)200702-201004

main55903-0D070iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

main55903-0D170iNCP9#..(13E,13J,15E,15G,15J,E,G,J,LIMO)..(IDN,MA,PH,TH)201003-201310

main55903-0D180iNCP93..S201004-201310

main55903-0D210iNCP93..VN201004

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-0D070iNCP9#200702-201004

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-0D080iNCP93..RHD200702-201004

main55908-0D090iNCP9#..LHD201004-201403

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-52120iNCP93..VN201004-201403

55910BBULB, HEATER CONTROL

main90010-01112iNCP93..S201004-201310

main90010-01113iNCP9#..13E,13J,15E,15G,15J,E,G,J,LIMO201003

8 parts on this diagram · 4 diagrams in section
