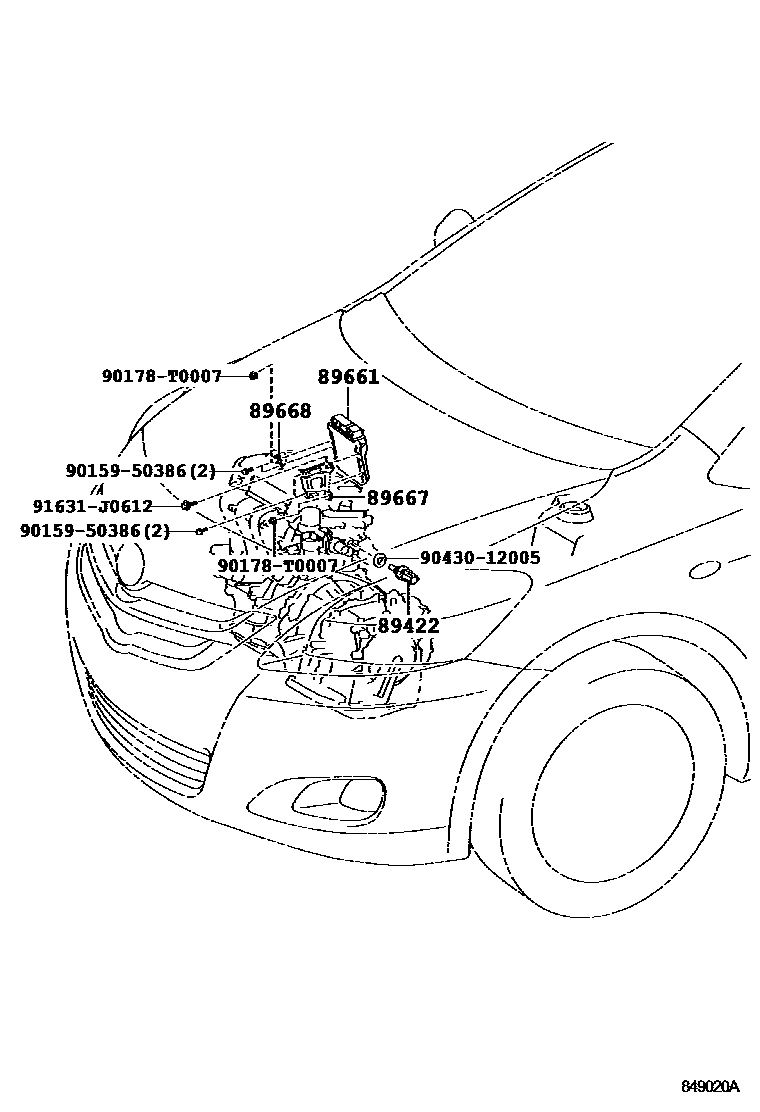

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNCP9#..MA,PH,VN200702-201403

89661COMPUTER, ENGINE CONTROL

main89661-0D820iNCP93..ATM..(E,J)200710-200807

sub89661-0D821

main89661-0D821iNCP93..ATM..(E,J)200808-201111

sub89661-0D822

main89661-0D822iNCP93..ATM..(E,J)201112-201206

main89661-0D830iNCP92..MTM200708-201111

sub89661-0D831

main89661-0D831iNCP92..MTM201112-201307

main89661-0DA50iNCP93..MTM200702-200807

sub89661-0DA51

main89661-0DA51iNCP93..MTM..(MA,PH,VN)200808-201111

sub89661-0DA52

main89661-0DA52iNCP93..MTM201112-201403

main89661-0DA60iNCP93..ATM..(15E,15G,15J,15S,G,S)200702-200807

sub89661-0DA61

main89661-0DA61iNCP93..ATM..(15E,15G,15J,G,S)200808-201111

sub89661-0DA62

main89661-0DA62iNCP93..ATM..(E,J)201112-201403

main89661-0DD70iNCP92..ATM201004-201111

sub89661-0DD71

main89661-0DD71iNCP92..ATM201112-201307

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52190iNCP93..RHD200702-201310

main89667-52200iNCP9#..LHD200708-201403

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52210iNCP93..IDN,TH200702-201310

main89668-52220iNCP9#..LHD200708-201403

9015950386

main90159-50386

90178T0007

main90178-T0007

9043012005

main90430-12005

91631J0612

main91631-J0612

8 parts on this diagram · 2 diagrams in section
