INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B0iNCP93..MTM..VN;NCP9#..IDN,MA,PH,TH200702-201004

GRAY,TRIM1#

main81240-52040-E0iNCP93..(15E,15G,15J,E,G,J,LIMO,S)..(IDN,MA,TH,VN)200702-201004

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNCP9#201003-201403

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81330-02030iNCP93..IDN,TH200702-201003

81250BBULB, ROOM LAMP, NO.2

main90981-11020iNCP93..IDN,TH200702-201003

12V 3.8W

81260ALAMP ASSY, MAP

main81260-0D060-B0iNCP93..IDN,TH201003-201304

GRAY,TRIM1#

main81260-0D060-E0iNCP93..RHD..(15E,15G,15J,LIMO)200702-201003

GREGE,TRIM4#

main81260-52030-B0iNCP9#..(13E,13J,15G,J,LIMO,S)..(MA,PH,VN)200708-201004

GRAY,TRIM1#

main81260-52030-E0iNCP93..E,G200709-201004

GREGE,TRIM4#

81260CBULB(FOR MAP LAMP)

main90981-11062×2iNCP93..IDN,TH200702-201003

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-52020iNCP9#..MA,PH,VN200708-201004

81266DLENS, MAP LAMP, NO.2

main81266-52020iNCP9#..MA,PH,VN200708-201004

81366CBASE, ROOM LAMP SWITCH

main81366-68010iNCP9#200702-201004

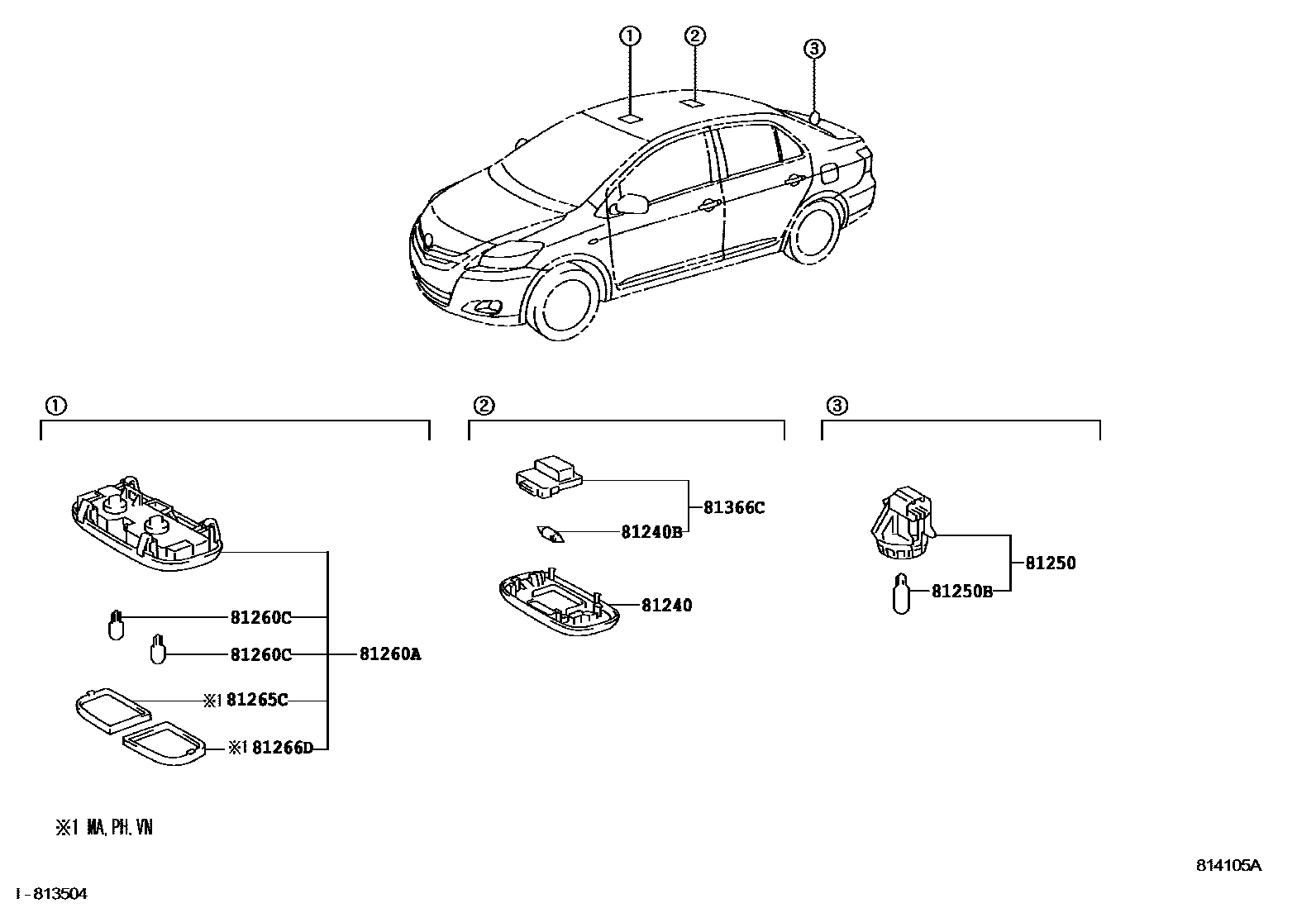

9 parts on this diagram · 1 diagram in section
