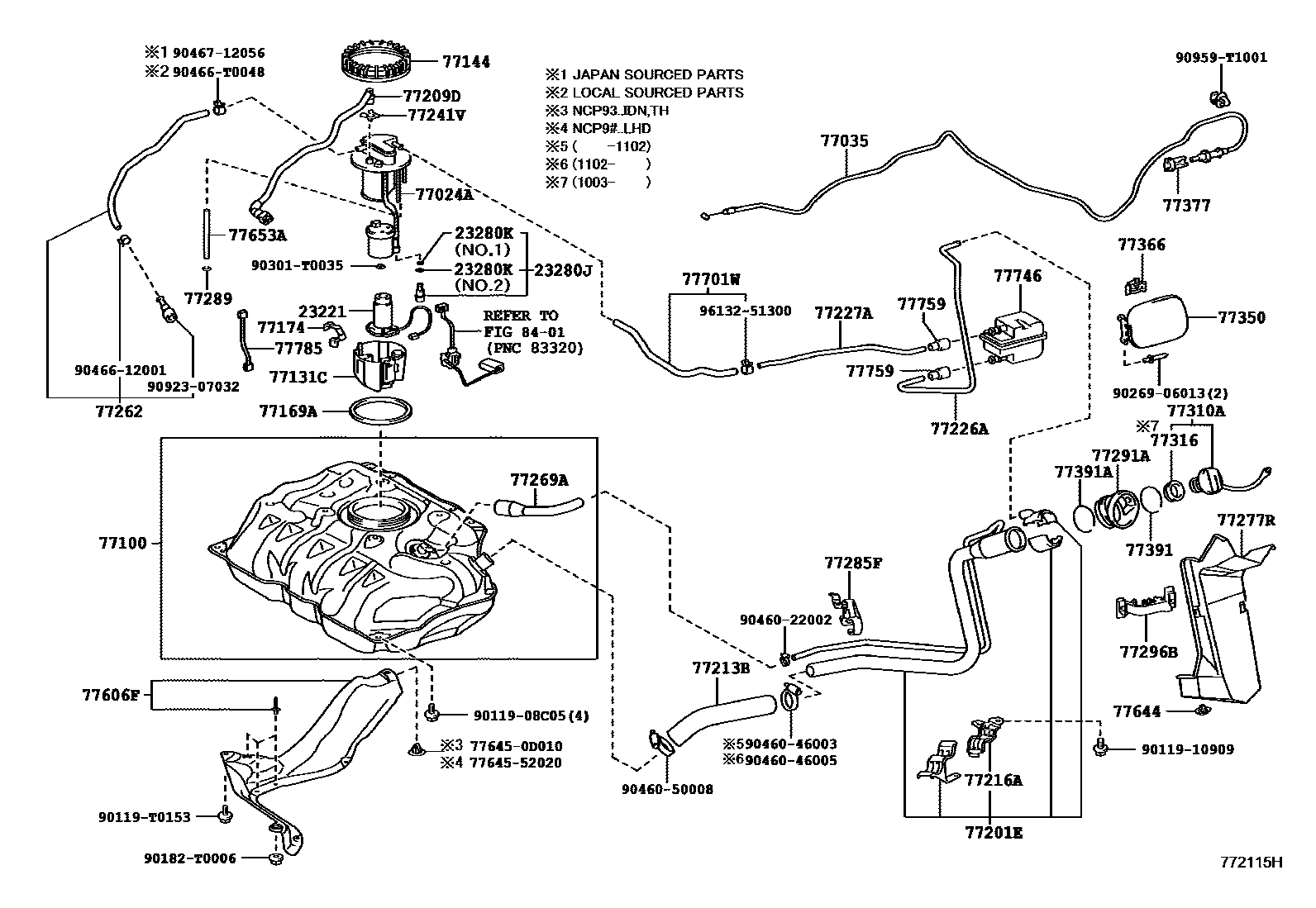

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE

23221PUMP, FUEL

main23220-0M030i1NZFE..NCP93..IDN,TH200702-201403

main23220-21132i1NZFE,2NZFE..NCP9#..MA,PH200708-201102

main23220-21200i1NZFE,2NZFE..NCP9#..MA,PH201102-201201

sub23220-21211

sub77785-52110

main23220-21211i1NZFE,2NZFE..NCP9#..MA,PH201201-201310

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1NZFE..NCP93200702-201310

main23280-21020i1NZFE..NCP93..IDN,TH200708-201403

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1NZFE..NCP93..IDN,TH200702-201403

NO.1

main90301-08020i1NZFE,2NZFE..NCP9#..MA,PH200708-201004

main90301-15024i1NZFE,2NZFE..NCP9#..MA,PH,VN200702-201403

NO.2

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0D060iNCP93200702-200703

sub77024-0D061

main77024-0D061iNCP93..IDN,TH,VN200704-200910

sub77024-0D062

main77024-0D062iNCP93..IDN,TH200910-201403

main77024-52121iNCP9#..MA,PH200708-200909

sub77024-52122

main77024-52122iNCP9#..MA,PH200909-201102

main77024-52171iNCP9#..MA,PH201102-201310

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-0D140iNCP93..IDN,TH200702-201304

main77035-0D150iNCP93..VN200709-201403

main77035-0D170iNCP93..MA200710-201310

main77035-0D180iNCP9#..PH200708-201307

77100TANK ASSY, FUEL

main77001-0D090iNCP93..IDN,TH,VN200702-201403

main77001-52201iNCP9#..MA,PH200708-201310

77131CSUB-TANK, FUEL, NO.1

main77131-0D070iNCP93200702-200704

sub77131-0D071

main77131-0D071iNCP93..IDN,TH,VN200705-201403

main77131-52071iNCP9#..MA,PH200708-201310

sub77131-52110

77144RETAINER, FUEL PUMP GAUGE

main77144-52030iNCP93..IDN,TH,VN200702-201403

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0D050iNCP93..IDN,TH,VN200702-201403

main77169-52040iNCP9#..MA,PH200708-201310

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0D030iNCP93..VN200702-201403

main77174-52050iNCP9#..MA,PH200708-201102

main77174-52070iNCP9#..MA,PH201102-201310

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0D100iNCP9#..IDN,PH,TH,VN200702-201403

main77201-0D120iNCP93..MA200710-201310

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0D040iNCP93..IDN,TH200702-201403

main77209-52090iNCP9#..MA,PH200708-200801

sub77209-52091

main77209-52091iNCP9#..MA,PH200802-201310

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0D060iNCP9#..IDN,PH,TH,VN200702-201403

main77213-0D080iNCP93..MA200710-201310

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-0D050iNCP93..IDN,TH200702-201403

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-0D020iNCP93..MA200710-201310

main77226-52110iNCP93..IDN,TH200702-201403

77227ATUBE, FUEL TANK EVAPORATION VENT

main77227-52020iNCP9#..LHD200702-201403

77241VCLIP, TUBE JOINT

main77241-33011iNCP9#..MA,PH200702-201403

main77241-60320iNCP9#..MA,PH200708-201002

77262TUBE, FUEL EMISSION, NO.2

main77028-0D020iNCP93..IDN,TH,VN200702-201403

main77028-52010iNCP9#..MA,PH200708-201102

sub77028-52020

main77028-52020iNCP9#..MA,PH201102-201310

77269AHOSE, FUEL TANK BREATHER

main77269-0D020iNCP93..IDN,TH,VN200702-201403

main77269-52080iNCP9#..MA,PH200708-201310

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-0D030iNCP93..MA200710-201310

main77277-52030iNCP9#200702-200710

main77277-52031iNCP9#..IDN,PH,TH,VN200711-201403

77285FCLAMP, FUEL TUBE, NO.1

main77285-0D040iNCP93..IDN,TH200702-201403

main77285-52080iNCP93..MA200710-201310

77289HOLDER, FUEL TANK PIPE SETTING

main77289-06070iNCP93..IDN,TH,VN200705-201403

main77289-0D060iNCP93200702-200704

sub77289-06070

main77289-52110iNCP9#..MA,PH200708-201310

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0D080iNCP93..IDN,TH200702-201403

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-0D010iNCP9#..IDN,PH,TH,VN200702-201403

main77296-52030iNCP93..MA200710-201310

77310ACAP ASSY, FUEL TANK

main77300-52030iNCP9#..MA,PH,VN200702-201403

77316GASKET, FUEL TANK CAP

main77316-52040iNCP9#201003-201403

77350LID ASSY, FUEL FILLER OPENING

main77350-0D050iNCP9#..MA,PH,VN200702-201403

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30070iNCP9#..MA,PH,VN200702-201403

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iNCP93..IDN,TH200702-201403

77391RING, FUEL INLET BOX

main77391-02020iNCP9#201112-201403

(L)

main77391-02020iNCP93..IDN,TH200702-201112

main77391-12020iNCP9#201112-201403

(J)

77391ARING, FUEL INLET BOX

main77391-60030iNCP93..IDN,TH200702-201403

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-0D030iNCP9#..MA,PH,VN200708-201403

main77606-52060iNCP93..IDN,TH200702-201304

77644BOLT, FUEL TANK

main77644-0K010iNCP93..IDN,TH200702-201403

77653ACUSHION, FUEL TANK, NO.3

main77652-0D020iNCP93..IDN,TH200702-201403

main77652-52040iNCP9#..MA,PH200708-201310

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-0D020iNCP93..IDN,TH,VN200702-201403

main77701-52010iNCP9#..MA,PH200708-201310

77746FILTER, CHARCOAL CANISTER, NO.2

main77746-33010iNCP93..IDN,TH200702-201403

77759HOSE, CHARCOAL CANISTER

main77759-52010iNCP93..IDN,TH200702-201403

77785HARNESS, FUEL PUMP

main77785-0D040iNCP93..IDN,TH200702-201301

sub77785-0D041

main77785-0D041iNCP93..IDN,TH,VN201302-201403

main77785-52060iNCP9#..MA,PH200708-201201

main77785-52110iNCP9#..MA,PH201201-201310

8401

776450D010PACKING, FUEL TANK BRACKET UPPER, B

main77645-0D010

7764552020PACKING, FUEL TANK BRACKET UPPER, B

main77645-52020

9011908C05

main90119-08C05

9011910909

main90119-10909

90119T0153

main90119-T0153

90182T0006

main90182-T0006

9026906013

main90269-06013

90301T0035

main90301-T0035

9046022002

main90460-22002

9046046003

main90460-46003

9046046005

main90460-46005

9046050008

main90460-50008

9046612001

main90466-12001

90466T0048

main90466-T0048

9046712056

main90467-12056

9092307032

main90923-07032

90959T1001

main90959-T1001

9613251300

main96132-51300

57 parts on this diagram · 4 diagrams in section
