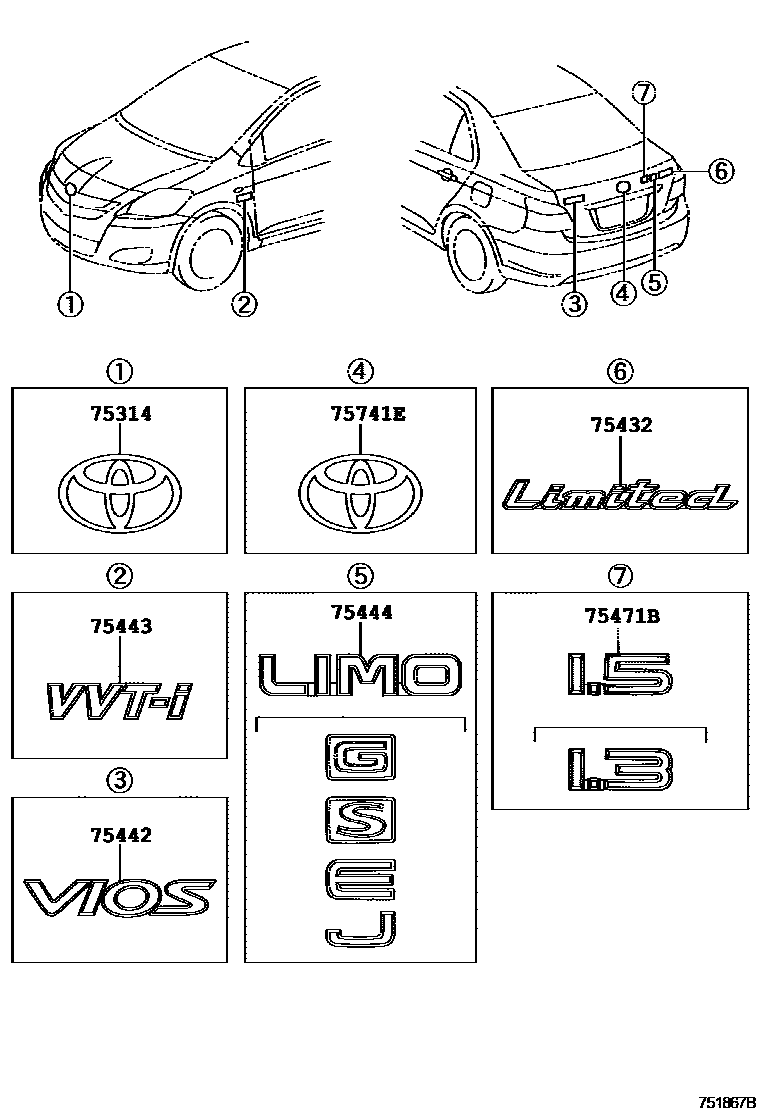

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75314EMBLEM, FRONT BUMPER

main75301-0D010iNCP93..IDN,TH200702-201403

75432EMBLEM, BACK DOOR, NO.2

main75432-0D010iNCP93..15G..TH200702-201304

LIMITED,G-LIMITED

main75432-0D010iNCP93..15S200702-201003

LIMITED

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-0D070iNCP93..RHD..(15E,15G,15J,15S)200702-201403

VIOS

75443PLATE, BACK DOOR NAME, NO.3

main75443-06151iNCP9#..(13E,13J,15G,E,G,J,S)..(MA,PH,VN)200702-201403

VVT-I

main75443-06151iNCP92..13J201004-201307

VVT-I,LIMO PACKAGE

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-0D060iNCP93..LIMO..IDN200702-201403

LIMO

main75444-0D060iNCP92..13J201111-201307

LIMO,LIMO PACKAGE

main75444-0D070iNCP93..RHD..15G200702-201403

G

main75444-0D080iNCP93..15S200702-201310

S

main75444-0D090iNCP93..15E200702-201403

E

main75444-0D100iNCP9#..13J,J200702-201310

J

main75444-0D100iNCP92..13J201004-201307

J,LIMO PACKAGE

75471BPLATE, REAR BODY NAME, NO.1

main75471-0D041iNCP93..PH200708-201307

main75471-0D121iNCP92201004-201307

LIMO PACKAGE

main75471-0D121iNCP92200708-201004

75741EEMBLEM, SYMBOL

main90975-02063iNCP93..IDN,TH200702-201403

7 parts on this diagram · 1 diagram in section
