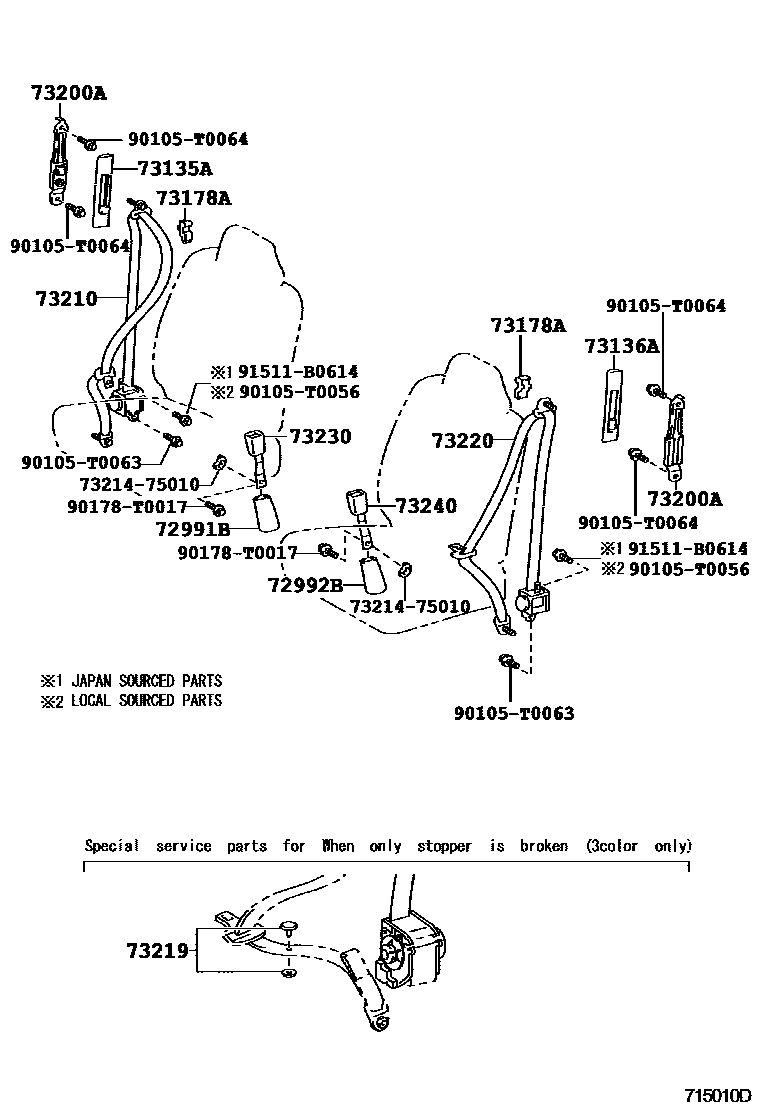

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1FRONT 0003 1REAR

72991BCOVER, FRONT SEAT CUSHION, RH

main72991-0D020-B0iNCP93..(15E,LIMO)..IDN;NCP9#..(13E,13J,15E,15G,15J,15S,J,LIMO,S)..(MA,PH,TH,VN)200702-201403

DK.GRAY,TRIM1#

main72991-0D020-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)200702-201403

GREGE,TRIM4#

72992BCOVER, FRONT SEAT CUSHION, LH

main72991-0D030-B0iNCP93..(15E,LIMO)..(IDN,VN);NCP9#..(13E,13J,15E,15G,15J,E,J,S)..(MA,PH,TH)200702-201403

DK.GRAY,TRIM1#

sub72991-0D020

main72991-0D030-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)200702-201403

GREGE,TRIM4#

sub72991-0D020

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73135-0D040-B1iNCP93..MTM..VN;NCP9#..IDN,MA,PH,TH200702-201403

GRAY,TRIM1#

sub73135-0D040

main73135-0D040-E0iNCP93..(15E,15G,15J,E,G,J,LIMO,S)..(IDN,MA,TH,VN)200702-201403

GREGE,TRIM4#

sub73135-0D040

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73135-0D040-B1iNCP93..MTM..VN;NCP9#..IDN,MA,PH,TH200702-201403

GRAY,TRIM1#

sub73135-0D040

main73135-0D040-E0iNCP93..(15E,15G,15J,E,G,J,LIMO,S)..(IDN,MA,TH,VN)200702-201403

GREGE,TRIM4#

sub73135-0D040

73178ACAP, SEAT BELT ANCHOR COVER

main73178-0D060-B1iNCP93..LIMO..VN;NCP9#..(13E,13J,15E,15G,15J,E,J,LIMO,S)..(IDN,MA,PH,TH)200702-201403

GRAY,TRIM1#

sub73178-0D060

main73178-0D060-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)200702-201403

GREGE,TRIM4#

sub73178-0D060

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0D050-B1iNCP93..MTM..VN;NCP9#..IDN,MA,PH,TH200702-201403

GRAY,TRIM1#

sub73200-0D050

main73200-0D050-E0iNCP93..(15E,15G,15J,E,G,J,LIMO,S)..(IDN,MA,TH,VN)200702-201403

GREGE,TRIM4#

sub73200-0D050

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0D220-B2iNCP93..MTM..(15E,15G,E)..(IDN,PH,VN);NCP93..ATM..(15E,15G,15S,E,G,S)..(IDN,MA,PH,TH)200702-201004

DK.GRAY,TRIM1#

sub73210-0D222

sub73233-33010

sub90109-11062

sub73210-0D221

main73210-0D220-B3iNCP93..15J201003-201102

DK.GRAY,TRIM1#

sub73210-0D222

sub73233-33010

sub90109-11062

sub73210-0D221

main73210-0D220-B3iNCP93..ATM..(15E,15G,E,J,S);NCP93..MTM..(15E,15G,J)..(IDN,MA,PH)201003-201102

SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#

sub73210-0D222

sub73233-33010

sub90109-11062

sub73210-0D221

main73210-0D220-B3iNCP93..ATM..(15E,15G,E,J,S);NCP93..MTM..(15E,15G,J)..(IDN,MA,PH)201003-201102

SRS AIR BAG-WITH(DRIVER),DK.GRAY,TRIM1#

sub73210-0D222

sub73233-33010

sub90109-11062

sub73210-0D221

main73210-0D220-E1iNCP93..15E..IDN200702-201004

GREGE,TRIM4#

sub73210-0D222

sub73233-33010

sub90109-11062

sub73210-0D221

main73210-0D220-E2iNCP93..MTM..(15E,15G,E)..(IDN,VN);NCP93..ATM..(15E,15G,G)..(IDN,MA,TH,VN)201003-201102

GREGE,TRIM4#

sub73210-0D222

sub73233-33010

sub90109-11062

sub73210-0D221

main73210-0D221-B3iNCP93..15J201102-201202

DK.GRAY,TRIM1#

sub73210-0D222

main73210-0D221-B3iNCP93..MTM..15E..TH201102-201202

SRS AIR BAG-WITH(DRIVER),DK.GRAY,TRIM1#

sub73210-0D222

main73210-0D221-B3iNCP93..MTM..15E..TH201102-201202

SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#

sub73210-0D222

main73210-0D221-E2iNCP93..MTM..(15E,15G,E)..(IDN,VN);NCP93..ATM..(15E,15G,G)..(IDN,MA,TH,VN)201102-201202

GREGE,TRIM4#

sub73210-0D222

main73210-0D222-B3iNCP93..MTM..15G;NCP93..ATM..(15E,15G)201202-201403

DK.GRAY,TRIM1#

sub73210-0D222

main73210-0D222-E2iNCP93..G..MA201202-201403

GREGE,TRIM4#

sub73210-0D222

main73210-0D230-B2iNCP93..MTM..15E..TH;NCP9#..13E,13J,15J,J,LIMO200702-201004

DK.GRAY,TRIM1#

sub73210-0D232

sub73233-33010

sub90109-11062

sub73210-0D231

main73210-0D230-B3iNCP93..MTM..15E..TH;NCP9#..13E,13J,15J,LIMO201003-201102

SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#

sub73210-0D232

sub73233-33010

sub90109-11062

sub73210-0D231

main73210-0D230-B3iNCP93..MTM..15E..TH;NCP9#..13E,13J,15J,LIMO201003-201102

DK.GRAY,TRIM1#

sub73210-0D232

sub73233-33010

sub90109-11062

sub73210-0D231

main73210-0D230-E1iNCP93..MTM..15E..TH200702-201003

GREGE,TRIM4#

sub73210-0D232

sub73233-33010

sub90109-11062

sub73210-0D231

main73210-0D230-E1iNCP93..ATM..15E200702-201003

SRS AIR BAG-WITHOUT,GREGE,TRIM4#

sub73210-0D232

sub73233-33010

sub90109-11062

sub73210-0D231

main73210-0D230-E2iNCP93..MTM..15E..TH201003-201102

GREGE,TRIM4#

sub73210-0D232

sub73233-33010

sub90109-11062

sub73210-0D231

main73210-0D230-E2iNCP93..ATM..15E201003-201102

SRS AIR BAG-WITHOUT,GREGE,TRIM4#

sub73210-0D232

sub73233-33010

sub90109-11062

sub73210-0D231

main73210-0D231-B3iNCP93..ATM..15E201102-201202

DK.GRAY,TRIM1#

sub73210-0D232

main73210-0D231-B3iNCP93..MTM..15E..TH;NCP9#..13E,13J,15J,LIMO201102-201202

SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#

sub73210-0D232

main73210-0D231-E2iNCP93..MTM..15E..TH201102-201202

GREGE,TRIM4#

sub73210-0D232

main73210-0D231-E2iNCP93..ATM..15E201102-201202

SRS AIR BAG-WITHOUT,GREGE,TRIM4#

sub73210-0D232

main73210-0D232-B3iNCP93..ATM..15E201202-201209

SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#

sub73210-0D232

main73210-0D232-B3iNCP93..MTM..15E..TH;NCP9#..13E,13J,15J,LIMO201202-201209

DK.GRAY,TRIM1#

sub73210-0D232

main73210-0D232-E2iNCP93..MTM..15E..TH201202-201209

GREGE,TRIM4#

sub73210-0D232

main73210-0D232-E2iNCP93..MTM..15E..TH201202-201209

SRS AIR BAG-WITHOUT,GREGE,TRIM4#

sub73210-0D232

main73210-0D440-B0iNCP93..(E,J,S)..MA201210-201310

DK.GRAY,TRIM1#

main73210-0D440-E0iNCP93..G..MA201210-201310

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iNCP9#201003-201403

BLACK

main73219-33020iNCP9#201003-201403

GRAY

main73219-33030iNCP9#201003-201403

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0D200-B2iNCP9#..MTM..(13E,13J,15G,E);NCP93..ATM..(15E,15G,15S,G,S)..(IDN,MA,PH,TH)200702-201004

DK.GRAY,TRIM1#

sub73220-0D202

sub73233-33010

sub90109-11062

sub73220-0D201

main73220-0D200-B3iNCP92;NCP93..MTM..15G;NCP93..ATM..(15E,15G,E,S)201003-201102

SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#

sub73220-0D202

sub73233-33010

sub90109-11062

sub73220-0D201

main73220-0D200-B3iNCP92;NCP93..MTM..15G;NCP93..ATM..(15E,15G,E,S)201003-201102

DK.GRAY,TRIM1#

sub73220-0D202

sub73233-33010

sub90109-11062

sub73220-0D201

main73220-0D200-E1iNCP93..MTM..(15G,E)..(IDN,VN);NCP93..ATM..(15E,15G,G,S)..(IDN,MA,TH,VN)200702-201004

GREGE,TRIM4#

sub73220-0D202

sub73233-33010

sub90109-11062

sub73220-0D201

main73220-0D200-E2iNCP93..MTM..(15G,E)..(IDN,VN);NCP93..ATM..(15E,15G,G)..(IDN,MA,TH,VN)201003-201102

GREGE,TRIM4#

sub73220-0D202

sub73233-33010

sub90109-11062

sub73220-0D201

main73220-0D201-B3iNCP93..MTM..15E..TH201102-201202

DK.GRAY,TRIM1#

sub73220-0D202

main73220-0D201-B3iNCP92;NCP93..MTM..15G;NCP93..ATM..(15E,15G,E,S)201102-201202

SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#

sub73220-0D202

main73220-0D201-E2iNCP93..MTM..(15G,E)..(IDN,VN);NCP93..ATM..(15E,15G,G)..(IDN,MA,TH,VN)201102-201202

GREGE,TRIM4#

sub73220-0D202

main73220-0D202-B3iNCP93..(E,S)..MA201202-201403

DK.GRAY,TRIM1#

sub73220-0D202

main73220-0D202-E2iNCP93..MTM..15E201202-201403

GREGE,TRIM4#

sub73220-0D202

main73220-0D210-B2iNCP93..15E..IDN;NCP93..RHD..(15J,E,J,LIMO);NCP93..MTM..(15E,LIMO)..(TH,VN)200702-201004

DK.GRAY,TRIM1#

sub73220-0D212

sub73233-33010

sub90109-11062

sub73220-0D211

main73220-0D210-B3iNCP93..MTM..15E;NCP93..15J,J,LIMO201003-201102

SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#

sub73220-0D212

sub73233-33010

sub90109-11062

sub73220-0D211

main73220-0D210-B3iNCP93..ATM..15E201003-201102

DK.GRAY,TRIM1#

sub73220-0D212

sub73233-33010

sub90109-11062

sub73220-0D211

main73220-0D210-E1iNCP93..E..MA;NCP93..MTM..15E..TH200702-201004

GREGE,TRIM4#

sub73220-0D212

sub73233-33010

sub90109-11062

sub73220-0D211

main73220-0D210-E2iNCP93..MTM..15E201003-201102

SRS AIR BAG-WITHOUT,GREGE,TRIM4#

sub73220-0D212

sub73233-33010

sub90109-11062

sub73220-0D211

main73220-0D210-E2iNCP93..ATM..15E201003-201102

GREGE,TRIM4#

sub73220-0D212

sub73233-33010

sub90109-11062

sub73220-0D211

main73220-0D211-B3iNCP93..15J,J,LIMO;NCP93..MTM..15E..TH201102-201202

DK.GRAY,TRIM1#

sub73220-0D212

main73220-0D211-B3iNCP93..ATM..15E201102-201202

SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#

sub73220-0D212

main73220-0D211-E2iNCP93..ATM..15E201102-201202

GREGE,TRIM4#

sub73220-0D212

main73220-0D211-E2iNCP93..MTM..15E201102-201202

SRS AIR BAG-WITHOUT,GREGE,TRIM4#

sub73220-0D212

main73220-0D212-B3iNCP93..15J,LIMO;NCP93..MTM..15E..TH201202-201209

DK.GRAY,TRIM1#

sub73220-0D212

main73220-0D212-B3iNCP93..15J,LIMO;NCP93..MTM..15E..TH201202-201209

SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#

sub73220-0D212

main73220-0D212-E2iNCP93..ATM..15E201202-201209

SRS AIR BAG-WITHOUT,GREGE,TRIM4#

sub73220-0D212

main73220-0D212-E2iNCP93..MTM..15E201202-201209

GREGE,TRIM4#

sub73220-0D212

main73220-0D430-B0iNCP93..(E,J,S)..MA201210-201310

DK.GRAY,TRIM1#

main73220-0D430-E0iNCP93..G..MA201210-201310

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0D200-B0iNCP93..RHD200702-201310

DK.GRAY,TRIM1#

main73230-0D200-E0iNCP93..RHD..(15E,15G,15J,E,G,J,LIMO,S)200702-201310

GREGE,TRIM4#

main73230-0D210-B0iNCP9#..LHD..(13E,13J,15G,E,LIMO)200708-201403

DK.GRAY,TRIM1#

main73230-0D210-E0iNCP93..(E,G)..VN200709-201403

GREGE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0D200-B0iNCP9#..LHD..(13E,13J,15G,LIMO)200708-201403

DK.GRAY,TRIM1#

main73230-0D200-E0iNCP93..(E,G)..VN200709-201403

GREGE,TRIM4#

main73230-0D210-B0iNCP93..RHD..(15E,15G,15J,E,J,LIMO,S)200702-201310

DK.GRAY,TRIM1#

main73230-0D210-E0iNCP93..RHD..(15E,15G,G)200702-201310

GREGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105T0056

main90105-T0056

90105T0063

main90105-T0063

90105T0064

main90105-T0064

90178T0017

main90178-T0017

91511B0614

main91511-B0614

17 parts on this diagram · 3 diagrams in section
