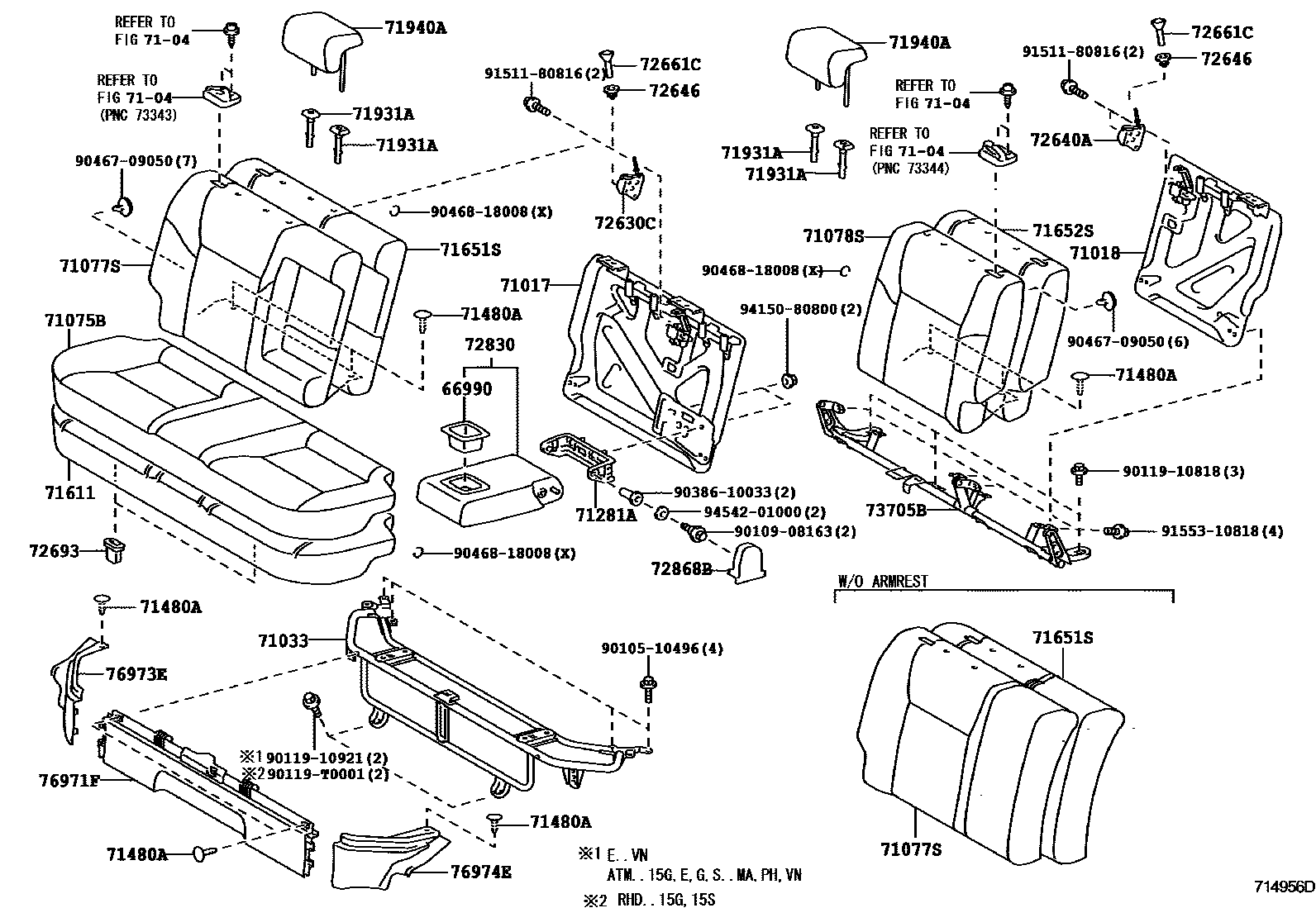

REAR SEAT & SEAT TRACK

0001 16:4 FOLD TYPE REAR SEAT 0002 1FIXED REAR SEAT

66990HOLDER ASSY, CUP

main66991-0D010-B0iNCP93..(15G,15S)..TH200705-201003

DK.GRAY,TRIM1#

main66991-0D010-E0iNCP93..(15G,G)..(TH,VN)200705-201004

GREGE,TRIM4#

main66991-52030-B0iNCP93..(15G,15S)..TH200702-200705

DK.GRAY,TRIM1#

main66991-52030-E0iNCP93..15G..TH200702-200705

GREGE,TRIM4#

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-0D150iNCP93..(15G,E)..(IDN,VN)200702-201004

main71017-0D160iNCP93..(E,G,S)..MA201004-201310

main71017-0D200iNCP93..(15G,15S,G)..(TH,VN)200705-201004

main71017-52470iNCP93..(15G,15S)..TH200702-200705

main71017-0D210iNCP93..ATM..PH200708-201004

SEAT COVER MATERIAL-LEATHER

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-0D060iNCP93..(15G,15S,E,G)..(IDN,TH,VN)200702-201004

main71018-0D070iNCP93..(E,G,S)..MA200710-201004

main71018-0D080iNCP93..ATM..PH201004-201307

SEAT COVER MATERIAL-LEATHER

71033LEG SUB-ASSY, REAR SEAT CUSHION

main71033-0D010iNCP93..IDN,TH,VN200702-201004

main71033-0D020iNCP93..MA201004-201310

main71033-0D030iNCP9#..PH201004-201307

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0D410-B0iNCP93..15G..TH200702-201003

DARK GRAY,TRIM1#

main71075-0D410-E0iNCP93..(15E,15J)..TH;NCP93..(15E,15G)..IDN200702-201003

GREGE,TRIM4#

main71075-0D420-E0iNCP93..15G..TH201003-201304

GREGE,TRIM4#

main71075-0D430-B0iNCP93..15S200702-201003

IVORY,TRIM1#

main71075-0D440-B0iNCP93..MA200710-201004

DARK GRAY,TRIM1#

main71075-0D440-E0iNCP93..(E,G,S)..MA200710-201004

GREGE,TRIM4#

main71075-0D450-B0iNCP9#..PH200708-201004

DARK GRAY,TRIM1#

main71075-0D470-E0iNCP93..E..VN200709-201004

GREGE,TRIM4#

main71075-0D480-E0iNCP93..G..VN201004-201403

GREGE,TRIM4#

main71075-0D510-B0iNCP93..LIMO..IDN201003-201304

DK.GRAY,TRIM1#

main71075-0D520-B0iNCP93..LIMO..VN200709-201004

DK.GRAY,TRIM1#

main71075-0D690-B0supersedes 71075-0D420-B0iNCP93..15G..TH201003-201304

SINGAPORE & BRUNEI SPEC,DK. GRAY,TRIM1#

main71075-0D690-E0iNCP93..15E..TH;NCP93..(15E,15G)..IDN201003-201304

GREGE,TRIM4#

main71075-0D700-B0iNCP93..(E,J)..MA201004-201310

DK. GRAY,TRIM1#

main71075-0D710-B0iNCP9#..PH201004-201307

DK. GRAY,TRIM1#

main71075-0D720-E0iNCP93..E..VN201004-201403

GREGE,TRIM4#

main71075-0D740-E0iNCP93..G..MA201004-201310

GREGE,TRIM4#

main71075-0DA30-B0iNCP93..S201106-201310

DARK GRAY,TRIM1#

main71075-0D460-B0iNCP93..ATM..PH201004-201307

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0D531-E1iNCP93..15G..TH200702-201003

GREGE,TRIM4#

main71077-0D541-B1iNCP93..15S200702-201003

DK.GRAY,TRIM1#

main71077-0D550-E1iNCP93..15G..IDN200702-201003

GREGE,TRIM4#

main71077-0D560-B1iNCP93..S200710-201004

DARK GRAY,TRIM1#

main71077-0D560-E1iNCP93..(E,G)..MA200710-201004

GREGE,TRIM4#

main71077-0D580-E1iNCP93..E..VN200709-201004

GREGE,TRIM4#

main71077-0D591-E1iNCP93..G..VN200709-201004

GREGE,TRIM4#

main71077-0D860-B0iNCP93..E..MA201004-201310

DK. GRAY,TRIM1#

main71077-0D880-E0iNCP93..E..VN201004-201403

GREGE,TRIM4#

main71077-0DA00-B0iNCP93..15G..IDN201203-201304

DK. GRAY,TRIM1#

main71077-0DA00-E0iNCP93..15G..IDN201003-201304

GREGE,TRIM4#

main71077-0DA10-E0iNCP93..G..MA201004-201310

GREGE,TRIM4#

main71077-0DC20-B0iNCP93..S201106-201310

DARK GRAY,TRIM1#

main71077-0D550-B1supersedes 71077-0D531-B1iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC,DARK GRAY,TRIM1#

main71077-0D571-B1iNCP93..ATM..PH201004-201307

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#

main71077-0D840-B0supersedes 71077-0D531-B1iNCP93..15G..TH201003-201304

SINGAPORE & BRUNEI SPEC,DK. GRAY,TRIM1#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0D160-E1iNCP93..15G..TH200702-201003

GREGE,TRIM4#

main71078-0D170-B1iNCP93..15S200702-201003

DK.GRAY,TRIM1#

main71078-0D180-E1iNCP93..15G..IDN200702-201003

GREGE,TRIM4#

main71078-0D190-B1iNCP93..S200710-201004

DARK GRAY,TRIM1#

main71078-0D190-E1iNCP93..(E,G)..MA200710-201004

GREGE,TRIM4#

main71078-0D210-E1iNCP93..E..VN200709-201004

GREGE,TRIM4#

main71078-0D220-E1iNCP93..G..VN200709-201004

GREGE,TRIM4#

main71078-0D370-B0iNCP93..E..MA201004-201310

DK. GRAY,TRIM1#

main71078-0D380-E0iNCP93..E..VN201004-201403

GREGE,TRIM4#

main71078-0D390-B0iNCP93..15G..IDN201203-201304

DK. GRAY,TRIM1#

main71078-0D390-E0iNCP93..15G..IDN201003-201304

GREGE,TRIM4#

main71078-0D400-E0iNCP93..G..MA201004-201310

GREGE,TRIM4#

main71078-0D520-B0iNCP93..S201106-201310

DARK GRAY,TRIM1#

main71078-0D180-B1supersedes 71078-0D160-B1iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC,DARK GRAY,TRIM1#

main71078-0D200-B1iNCP93..ATM..PH201004-201307

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#

main71078-0D360-B0supersedes 71078-0D160-B1iNCP93..15G..TH201003-201304

SINGAPORE & BRUNEI SPEC,DK. GRAY,TRIM1#

71281AHINGE, REAR SEAT CENTER ARMREST

main71281-0D010iNCP93..(15G,15S,G)..(TH,VN)200705-201004

main71281-52030iNCP93..(15G,15S)..TH200702-200705

71480ACLIP (FOR REAR SEATBACK)

main90467-08186-B4×4iNCP93..E..VN;NCP93..RHD..(15G,E,G,S)200702-201004

DK.GRAY,TRIM1#,4#

71611PAD, REAR SEAT CUSHION

main71503-0D070iNCP93..IDN,TH200702-201003

main71503-0D080iNCP93..MA201004-201310

main71503-0D090iNCP9#..PH200708-201004

main71503-0D100iNCP93..VN200709-201004

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0D081iNCP93..(15G,15S)..TH200702-201003

main71651-0D090iNCP93..E..MA201004-201310

main71651-0D110iNCP93..E..VN201004-201403

main71651-0D120supersedes 71651-0D081iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

main71651-0D130iNCP93..G..VN200709-201004

main71651-0D180iNCP93..15G..IDN201003-201304

main71651-0D190iNCP93..S201106-201310

main71651-0D101iNCP93..ATM..PH200708-201004

SEAT COVER MATERIAL-LEATHER

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0D060iNCP93..(15G,15S)..TH200702-201003

main71652-0D070iNCP93..(E,G,S)..MA200710-201004

main71652-0D090iNCP93..E..VN200709-201004

main71652-0D100supersedes 71652-0D060iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

main71652-0D110iNCP93..G..VN200709-201004

main71652-0D130iNCP93..G..MA201004-201310

main71652-0D080iNCP93..ATM..PH201004-201307

SEAT COVER MATERIAL-LEATHER

71931ASUPPORT, REAR SEAT HEADREST

main71930-42020-B4×2iNCP93..PH;NCP9#..13E,13J,15S200702-201004

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#,4#

sub71930-44020

main71930-42020-E1×2iNCP93..(E,G)..VN200709-201004

W(LOCK)&W(BUTTON),GREGE,TRIM4#

sub71930-44020

main71930-52030-B0×2iNCP93..15G..IDN201203-201403

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

main71930-52030-E0×2iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)201008-201403

W(LOCK)&W(BUTTON),GREGE,TRIM4#

main71931-42020-B4×2iNCP93..PH;NCP9#..13E,13J,15S200702-201004

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

main71931-42020-E1×2iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)201003-201403

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

71940AHEADREST ASSY, REAR SEAT

main71940-0D260-B2×2iNCP93..15G..TH200702-201003

DARK GRAY,TRIM1#

main71940-0D260-E1×2iNCP93..15E..TH;NCP93..15G..IDN200702-201003

GREGE,TRIM4#

main71940-0D270-B1×2iNCP93..(15G,15S)..TH200702-201002

DK.GRAY,TRIM1#

main71940-0D270-E1×2iNCP93..15G..TH200702-201002

GREGE,TRIM4#

main71940-0D290-E1×2iNCP93..G..VN201004-201403

GREGE,TRIM4#

main71940-0D320-B1×2iNCP93..LIMO..IDN200702-201003

DK.GRAY,TRIM1#

main71940-0D320-B2×2iNCP93..(15G,15S)..TH201002-201003

DK.GRAY,TRIM1#

main71940-0D320-E0×2iNCP93..15G..TH201003-201304

GREGE,TRIM4#

main71940-0D330-B1×2iNCP93..LIMO..VN201004-201403

DK.GRAY,TRIM1#

main71940-0D380-B0×2iNCP93..J,S200710-201004

DARK GRAY,TRIM1#

main71940-0D380-E0×2iNCP93..(E,G)..MA200710-201004

GREGE,TRIM4#

main71940-0D390-B0×2iNCP9#..PH200708-201004

DARK GRAY,TRIM1#

main71940-0D400-E0×2iNCP93..E..VN200709-201004

GREGE,TRIM4#

main71940-0D530-B0×2supersedes 71940-0D320-B2iNCP93..15G..TH201003-201304

SINGAPORE & BRUNEI SPEC,DK. GRAY,TRIM1#

main71940-0D530-E0×2iNCP93..15E..TH;NCP93..(15E,15G)..IDN201003-201304

GREGE,TRIM4#

main71940-0D540-B0×2iNCP93..(E,J)..MA201004-201310

DK. GRAY,TRIM1#

main71940-0D550-B0×2iNCP9#..PH201004-201307

DK. GRAY,TRIM1#

main71940-0D560-E0×2iNCP93..E..VN201004-201403

GREGE,TRIM4#

main71940-0D570-B0×2iNCP93..S201106-201310

DK.GRAY,TRIM1#

main71940-0D570-E0×2iNCP93..G..MA201004-201310

GREGE,TRIM4#

main71940-0D280-B2×2iNCP93..ATM..PH201004-201307

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#

72630CLOCK ASSY, REAR SEATBACK, RH

main72640-52110iNCP93..(15G,E,G,S)..(IDN,MA,TH,VN)201003-201403

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-52110iNCP93..(15G,15S,E,G,S)..(IDN,MA,TH,VN)200702-201004

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-02070-B0×2iNCP93..(15G,E,S)..(MA,TH)201107-201310

DK.GRAY,TRIM1#

main72646-02070-E0×2iNCP93..E..VN;NCP93..(15G,G)..(IDN,MA,TH,VN)201107-201403

GREGE,TRIM4#

main72646-33010-B4×2iNCP93..15S200702-201003

DK.GRAY,TRIM1#

main72646-33010-E3×2iNCP93..E..VN;NCP93..(15G,G)..(IDN,MA,TH,VN)201003-201106

GREGE,TRIM4#

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-32030-B3×2iNCP93..15S200702-201003

DK.GRAY,TRIM1#

main72661-32030-E2×2iNCP93..E..VN;NCP93..(15G,G)..(IDN,MA,TH,VN)201003-201403

GREGE,TRIM4#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-02020×2iNCP93..IDN,TH201003-201304

main72693-12080×2iNCP9#..MA,PH,VN200708-201004

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-0D010-B0iNCP93..(15G,15S)..TH200702-200705

DK.GRAY,TRIM1#

main72830-0D010-E0iNCP93..15G..TH200702-200705

GREGE,TRIM4#

main72830-0D011-B0iNCP93..(15G,15S)..TH200705-201003

DK.GRAY,TRIM1#

main72830-0D011-E0iNCP93..15G..TH200705-201003

GREGE,TRIM4#

main72830-0D031-E0iNCP93..G..VN201004-201403

GREGE,TRIM4#

main72830-0D040-B0iNCP93..15G..IDN201203-201304

DK.GRAY,TRIM1#

main72830-0D040-E0iNCP93..15G..IDN201003-201304

GREGE,TRIM4#

main72830-0D021-B0iNCP93..ATM..PH200708-201004

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#

72868BCOVER, CENTER ARMREST HINGE

main72868-0D010-B0iNCP93..15G..TH201003-201304

DK.GRAY,TRIM1#

main72868-0D010-E0iNCP93..(15G,G)..(IDN,TH,VN)201003-201403

GREGE,TRIM4#

main72868-52040-B0iNCP93..(15G,15S)..TH200702-200705

DK.GRAY,TRIM1#

main72868-52040-E0iNCP93..15G..TH200702-200705

GREGE,TRIM4#

73705BBRACKET SUB-ASSY, CROSS ANCHOR

main73705-0D010iNCP93..PH;NCP9#..13E,13J,15E,15J,LIMO200702-201004

main73705-0D020iNCP93..J200710-201004

main73705-0D060iNCP93..(15G,E,G)..(IDN,TH,VN)201003-201403

main73705-0D070iNCP93..(E,G,S)..MA201004-201310

76971FCOVER, REAR UNDER

main76971-0D010-B0iNCP93..(15E,15G)..TH200702-201003

DK.GRAY,TRIM1#,4#

main76971-0D010-E0iNCP93..(15E,15G,E,G)..(IDN,TH,VN)201003-201403

GREGE,TRIM4#

main76971-0D030-B0iNCP93..(E,G)..MA200710-201004

DK.GRAY,TRIM4#

main76971-0D030-E0iNCP93..G..MA201004-201310

GREGE,TRIM4#

76973ECOVER, REAR UNDER SIDE, RH

main76973-0D010-B0iNCP93..(15G,E,G)..(IDN,VN)200702-201004

DK.GRAY,TRIM4#

main76973-0D010-E0iNCP93..(15E,15G,E,G)..(IDN,TH,VN)201003-201403

GREGE,TRIM4#

main76973-0D030-B0iNCP93..(E,G)..MA200710-201004

DK.GRAY,TRIM4#

main76973-0D030-E0iNCP93..G..MA201004-201310

GREGE,TRIM4#

76974ECOVER, REAR UNDER SIDE, LH

main76974-0D010-B0iNCP93..(15E,15G)..TH200702-201003

DK.GRAY,TRIM1#,4#

main76974-0D010-E0iNCP93..(15E,15G,E,G)..(IDN,TH,VN)201003-201403

GREGE,TRIM4#

main76974-0D030-B0iNCP93..(E,G)..MA200710-201004

DK.GRAY,TRIM4#

main76974-0D030-E0iNCP93..G..MA201004-201310

GREGE,TRIM4#

9010510496

main90105-10496

9010908163

main90109-08163

9011910818

main90119-10818

9011910921

main90119-10921

90119T0001

main90119-T0001

9038610033

main90386-10033

9046709050

main90467-09050

9046818008

main90468-18008

9151180816

main91511-80816

9155310818

main91553-10818

9415080800

main94150-80800

9454201000

main94542-01000

38 parts on this diagram · 2 diagrams in section
