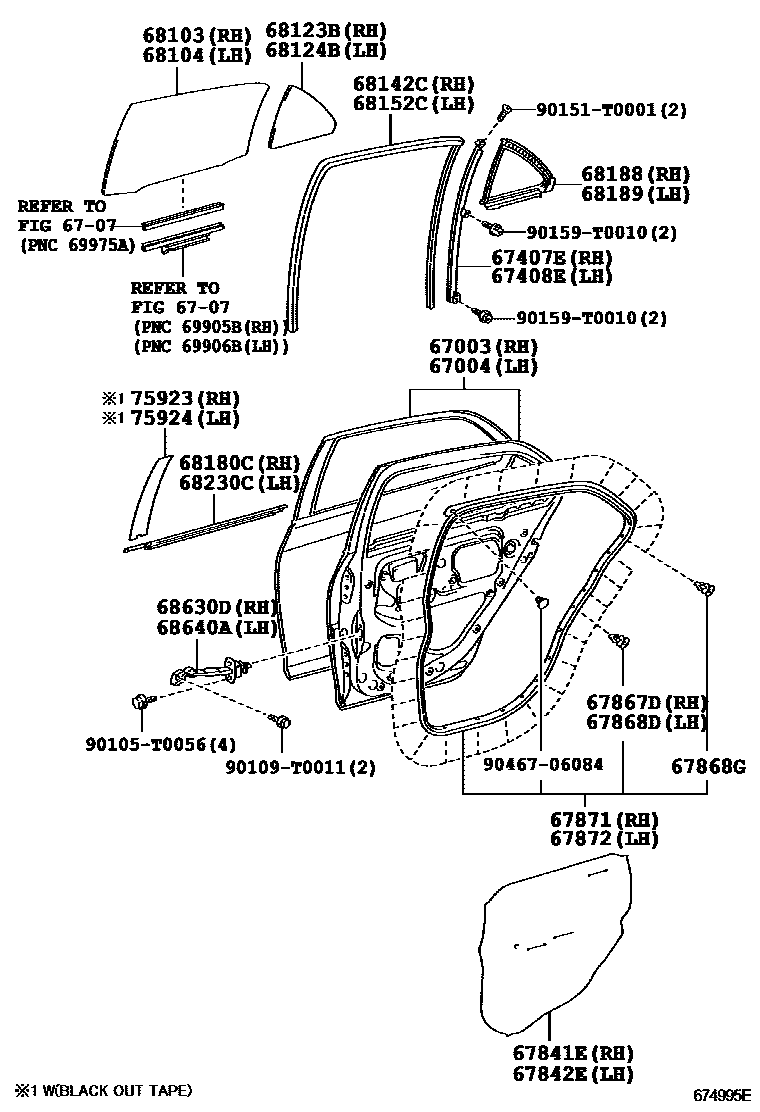

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0D160iNCP9#..(13E,13J,15E,15G,15J,E,G)..(IDN,PH,TH,VN)200702-201403

main67003-0D170iNCP93..MA200710-201310

sub67003-0D160

main67003-0D180iNCP92..13J201111-201307

LIMO PACKAGE

main67003-0D180iNCP93..LIMO200702-201403

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0D160iNCP9#..(13E,13J,15E,15G,15J,E,G)..(IDN,PH,TH,VN)200702-201403

main67004-0D170iNCP93..MA200710-201310

sub67004-0D160

main67004-0D180iNCP92..13J201111-201307

LIMO PACKAGE

main67004-0D180iNCP93..LIMO200702-201403

6707

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0D050iNCP93..IDN,TH200702-201403

main67407-52140iNCP9#..MA,PH200708-201310

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0D050iNCP93..IDN,TH200702-201403

main67408-52140iNCP9#..MA,PH200708-201310

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0D070iNCP93..IDN,TH200702-201403

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-0D070iNCP93..IDN,TH200702-201403

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67868-0D040iNCP9#200702-201403

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-0D070iNCP93..IDN,TH200702-201403

67868GRETAINER, DOOR WEATHERSTRIP

main67867-0D080iNCP93..IDN,TH200702-201403

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0D070iNCP93..IDN,TH200702-201403

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0D070iNCP93..IDN,TH200702-201403

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-0D080iNCP93..IDN,TH,VN200702-200804

*TEM,T=3.1,GREEN

sub68113-0D081

main68113-0D081iNCP93..IDN,TH,VN200805-201403

*TEM,T=3.1,GREEN

sub68113-0D082

main68113-0D090iNCP9#..PH200708-201307

*TEM,T=3.1,GREEN

main68113-0D100iNCP93..MA200710-201310

*TEM,T=3.1,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-0D080iNCP93..IDN,TH,VN200702-200804

*TEM,T=3.1,GREEN

sub68114-0D081

main68114-0D081iNCP93..IDN,TH,VN200805-201403

*TEM,T=3.1,GREEN

sub68114-0D082

main68114-0D090iNCP9#..PH200708-201307

*TEM,T=3.1,GREEN

main68114-0D100iNCP93..MA200710-201310

*TEM,T=3.1,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0D080iNCP93..IDN,TH,VN200702-200804

*TEM,T=3.1,GREEN

sub68123-0D081

main68123-0D081iNCP93..IDN,TH200805-201403

*TEM,T=3.1,GREEN

sub68123-0D082

main68123-0D090iNCP9#..PH200708-201307

*TEM,T=3.1,GREEN

main68123-0D100iNCP93..MA200710-201310

*TEM,T=3.1,GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0D080iNCP93..IDN,TH,VN200702-200804

*TEM,T=3.1,GREEN

sub68124-0D081

main68124-0D081iNCP93..IDN,TH200805-201403

*TEM,T=3.1,GREEN

sub68124-0D082

main68124-0D090iNCP9#..PH200708-201307

*TEM,T=3.1,GREEN

main68124-0D100iNCP93..MA200710-201310

*TEM,T=3.1,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-0D070iNCP93..IDN,TH200702-201403

68152CRUN, REAR DOOR GLASS, LH

main68152-0D070iNCP93..IDN,TH200702-201403

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-0D070iNCP93..IDN,TH200702-201403

main68180-0D090iNCP9#..PH200708-201307

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0D070iNCP93..IDN,TH200702-201403

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0D070iNCP93..IDN,TH200702-201403

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-0D070iNCP93..MA,VN200702-201403

main68230-0D090iNCP9#..PH200708-201307

68630DCHECK ASSY, REAR DOOR, RH

main68630-0D090iNCP9#..MA,PH,VN200702-201212

sub68630-0D091

main68630-0D091iNCP9#201212-201403

68640ACHECK ASSY, REAR DOOR, LH

main68630-0D091iNCP9#201212-201403

main68640-0D080iNCP9#..MA,PH,VN200702-201212

sub68630-0D091

75923TAPE, BLACK OUT, NO.2 RH

main75923-0D030iNCP9#..PH200702-201403

main75923-0D030iNCP92..13J201004-201307

LIMO PACKAGE

75924TAPE, BLACK OUT, NO.2 LH

main75924-0D030iNCP93..IDN,TH200702-201403

main75924-0D030iNCP92..13J201004-201307

LIMO PACKAGE

90105T0056

main90105-T0056

90109T0011

main90109-T0011

90151T0001

main90151-T0001

90159T0010

main90159-T0010

9046706084

main90467-06084

31 parts on this diagram · 2 diagrams in section
