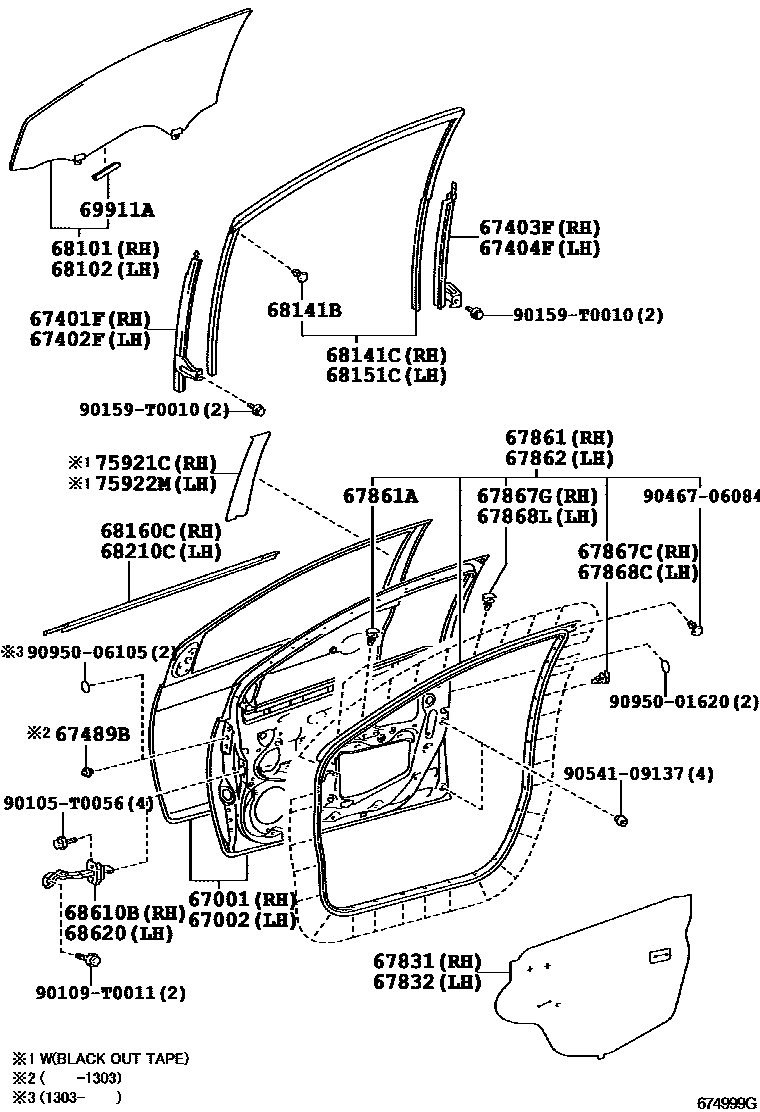

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67489BPACKING, FRONT DOOR LOWER COVER
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=3.1,GREEN
*TEM,T=3.1,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=3.1,GREEN
*TEM,T=3.1,GREEN
68141BCLIP, DOOR GLASS RUN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
69911ACHANNEL, FRONT DOOR GLASS, NO.1
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
90105T0056
main90105-T0056
90109T0011
main90109-T0011
90159T0010
main90159-T0010
9046706084
main90467-06084
9054109137
main90541-09137
9095001620
main90950-01620
9095006105
main90950-06105
35 parts on this diagram · 2 diagrams in section
