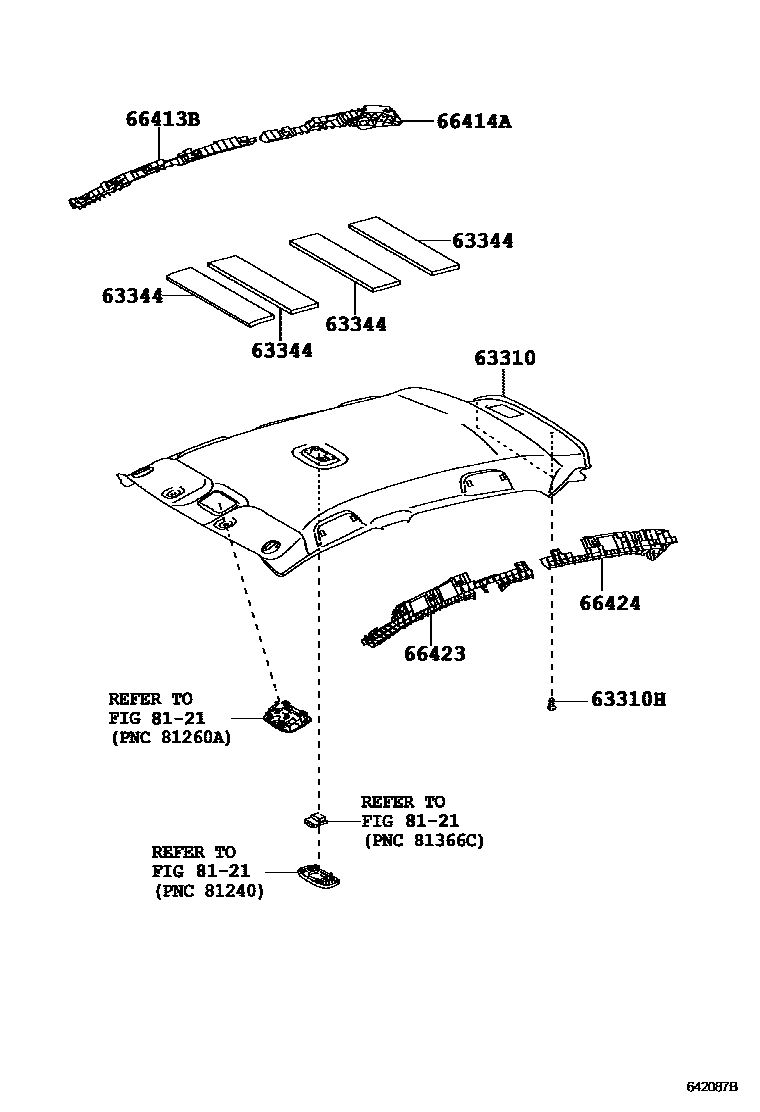

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-0D280-B0iNCP93..IDN,TH200702-201304

GRAY,TRIM1#

main63310-0D280-E0iNCP93..RHD..(15E,15G)200702-201304

GREGE,TRIM4#

main63310-0D310-B0iNCP9#..LHD..(13E,13J,15G,LIMO)200708-201403

GRAY,TRIM1#

main63310-0D310-E0iNCP93..(E,G)..VN200709-201403

GREGE,TRIM4#

main63310-0D360-B0iNCP93..(E,J,S)..MA200710-201310

GRAY,TRIM1#

main63310-0D360-E0iNCP93..(E,G)..MA200710-201310

GREGE,TRIM4#

63310HCLIP(FOR ROOF HEADLINING)

main90467-05164-B6iNCP9#..13E,13J,15E,15G,15J,15S,J,LIMO,S200702-201207

GRAY,TRIM1#

sub90467-05164¥110

main90467-05164-E2iNCP93..(E,G)..VN200702-201207

GREGE,TRIM4#

sub90467-05164¥110

main90467-T0004-B1iNCP93..MTM..(MA,TH);NCP93..MTM..(15G,LIMO)..IDN;NCP93..RHD..ATM..(15E,15G,15J,E,J,S)201206-201403

GRAY,TRIM1#

main90467-T0004-E0iNCP93..(E,G)..VN201206-201403

GREGE,TRIM4#

63344PAD, ROOF SILENCER, NO.4

main63341-0D040iNCP93..IDN,TH200702-201403

main63341-0D150iNCP93..MA201006-201310

66413BSPACER, SIDE RAIL, FRONT RH

main66413-0D130iNCP9#200702-201403

66414ASPACER, SIDE RAIL, REAR RH

main66414-0D130iNCP93..IDN,TH200702-201403

66423SPACER, SIDE RAIL, FRONT LH

main66423-0D120iNCP93..IDN,TH200702-201403

66424SPACER, SIDE RAIL, REAR LH

main66424-0D130iNCP93..IDN,TH200702-201403

8121

8 parts on this diagram · 1 diagram in section
