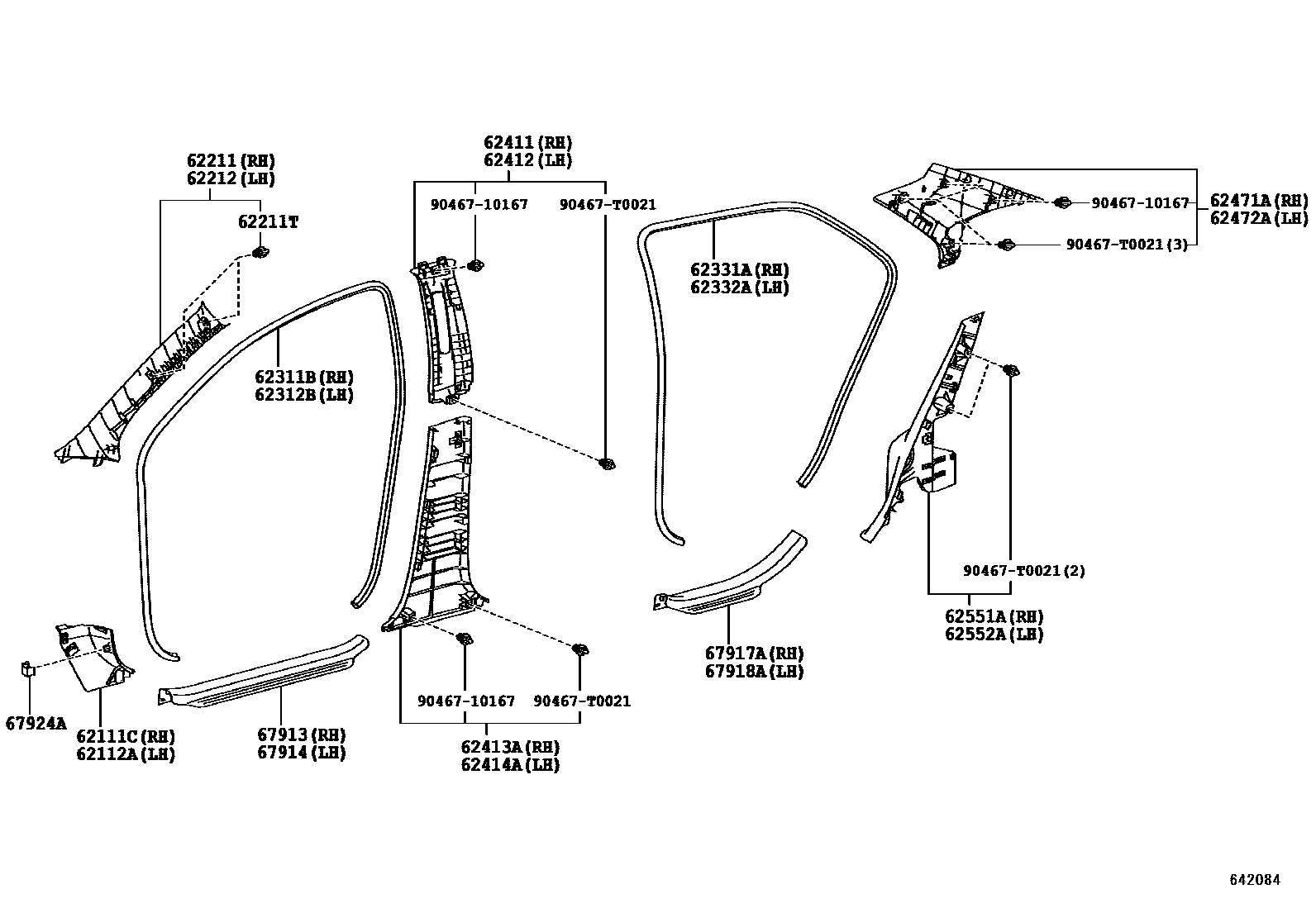

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-0D070-B0iNCP92;NCP93..MTM..(15G,LIMO)..IDN;NCP93..ATM..(15E,15G,15J,E,J,S);NCP93..MTM..(15E,15G,15J,J,LIMO)..(MA,PH,TH,VN)200702-201403

DK.GRAY

sub62111-0D070

main62111-0D070-B0iNCP93..E..VN;NCP93..(15E,G)..(IDN,MA,VN)201003-201403

DK.GRAY,TRIM1#

sub62111-0D070

main62111-0D070-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)201003-201403

ASH BROWN,TRIM4#

sub62111-0D070

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-0D090-B0iNCP93..MTM..(MA,TH);NCP93..MTM..(15G,LIMO)..IDN;NCP93..RHD..ATM..(15E,15G,15J,E,J,S)201003-201310

DK.GRAY,TRIM1#

sub62112-0D090

main62112-0D090-B0iNCP93..RHD200702-201310

DK.GRAY

sub62112-0D090

main62112-0D090-E0iNCP93..RHD..(15E,15G,G)201003-201310

ASH BROWN,TRIM4#

sub62112-0D090

main62112-0D110-B0iNCP9#..LHD..(13E,13J,15G,LIMO)200708-201403

DK.GRAY

main62112-0D110-B0iNCP93..(E,G)..VN201004-201403

DK.GRAY,TRIM1#

main62112-0D110-E0iNCP93..(E,G)..VN201004-201403

ASH BROWN,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62211-0D120-B0iNCP9#..13E,13J,15E,15G,15J,LIMO200702-201403

GRAY,TRIM1#

main62211-0D120-E0iNCP93..(15E,15G,15J,E,G,LIMO)..(IDN,TH,VN)200702-201403

GREGE,TRIM4#

main62211-0D130-B0iNCP93..(E,J,S)..MA200810-201310

GRAY,TRIM1#

main62211-0D130-E0iNCP93..G..MA200810-201310

GREGE,TRIM4#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10188iNCP9#201007-201403

main90467-T0021iNCP93..IDN,TH200702-201007

62212GARNISH, FRONT PILLAR, LH

main62212-0D130-B0iNCP9#..(13E,13J,15E,15G,15J,15S,E,LIMO)..(IDN,PH,TH,VN)200702-201403

GRAY,TRIM1#

main62212-0D130-E0iNCP93..(15E,15G,15J,E,G,LIMO)..(IDN,TH,VN)200702-201403

GREGE,TRIM4#

main62212-0D140-B0iNCP93..(E,J,S)..MA200810-201310

GRAY,TRIM1#

main62212-0D140-E0iNCP93..G..MA200810-201310

GREGE,TRIM4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0D110-B0iNCP93..LIMO..VN;NCP93..RHD..(15E,15G,15J,E,J,LIMO,S)200702-201403

DK.GRAY,TRIM1#

main62311-0D110-B0iNCP93..MTM..VN;NCP93..RHD..(15E,15G,15J,E,G,J,LIMO,S)200702-201004

DK.GRAY,TRIM1#,4#

main62311-0D110-B0iNCP93..G..VN200709-201004

DK.GRAY,TRIM4#

main62311-0D110-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)201003-201403

ASH BROWN,TRIM4#

main62311-0D120iNCP9#..PH200708-201307

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0D120-B0iNCP93..LIMO..VN;NCP93..RHD..(15E,15G,15J,E,J,LIMO,S)200702-201403

DK.GRAY,TRIM1#

main62312-0D120-B0iNCP93..MTM..VN;NCP93..RHD..(15E,15G,15J,E,G,J,LIMO,S)200702-201004

DK.GRAY,TRIM1#,4#

main62312-0D120-B0iNCP93..G..VN200709-201004

DK.GRAY,TRIM4#

main62312-0D120-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)201003-201403

ASH BROWN,TRIM4#

main62312-0D130iNCP9#..PH200708-201307

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0D030-B0iNCP93..MTM..VN;NCP93..RHD..(15E,15G,15J,E,G,J,LIMO,S)200702-201004

DK.GRAY,TRIM1#,4#

main62331-0D030-B0iNCP93..15S200702-201403

DK.GRAY,TRIM1#

main62331-0D030-B0iNCP93..G..VN200709-201004

DK.GRAY,TRIM4#

main62331-0D030-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)201003-201403

ASH BROWN,TRIM4#

main62331-0D040iNCP9#..PH200708-201307

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0D030-B0iNCP93..MTM..VN;NCP93..RHD..(15E,15G,15J,E,G,J,LIMO,S)200702-201004

DK.GRAY,TRIM1#,4#

main62332-0D030-B0iNCP93..15S200702-201403

DK.GRAY,TRIM1#

main62332-0D030-B0iNCP93..G..VN200709-201004

DK.GRAY,TRIM4#

main62332-0D030-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)201003-201403

ASH BROWN,TRIM4#

main62332-0D040iNCP9#..PH200708-201307

62411GARNISH, CENTER PILLAR, RH

main62411-0D090-B0iNCP9#..13E,13J,15E,15G,15J,LIMO200702-201403

GRAY,TRIM1#

main62411-0D090-E0iNCP93..(15E,15G,15J,E,G,LIMO)..(IDN,TH,VN)200702-201403

GREGE,TRIM4#

main62411-0D100-B0iNCP93..(E,J,S)..MA200710-201310

GRAY,TRIM1#

main62411-0D100-E0iNCP93..G..MA200710-201310

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62412-0D090-B0iNCP9#..13E,13J,15E,15G,15J,LIMO200702-201403

GRAY,TRIM1#

main62412-0D090-E0iNCP93..(15E,15G,15J,E,G,LIMO)..(IDN,TH,VN)200702-201403

GREGE,TRIM4#

main62412-0D100-B0iNCP93..MA200710-201310

GRAY,TRIM1#

main62412-0D100-E0iNCP93..MA200710-201310

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0D110iNCP9#..LHD200702-201004

main62413-0D110-B1iNCP92;NCP93..ATM..(IDN,PH,TH);NCP93..MTM..(15G,LIMO)..IDN;NCP93..MTM..(15E,15G,15J,LIMO)..(PH,TH,VN)201003-201403

DK.GRAY,TRIM1#

sub62413-0D110

main62413-0D110-E1iNCP93..(15E,15G,E,G)..(IDN,TH,VN)201003-201403

ASH BROWN,TRIM4#

sub62413-0D110

main62413-0D120iNCP93..MA200710-201004

main62413-0D120-B1iNCP93..(E,J,S)..MA201004-201310

DK.GRAY,TRIM1#

sub62413-0D120

main62413-0D120-E1iNCP93..G..MA201004-201310

ASH BROWN,TRIM4#

sub62413-0D120

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0D110iNCP93..IDN,TH200702-201004

main62414-0D110-B1iNCP92;NCP93..ATM..(IDN,PH,TH);NCP93..MTM..(15G,LIMO)..IDN;NCP93..MTM..(15E,15G,15J,LIMO)..(PH,TH,VN)201003-201403

DK.GRAY,TRIM1#

sub62414-0D110

main62414-0D110-E1iNCP93..(15E,15G,E,G)..(IDN,TH,VN)201003-201403

ASH BROWN,TRIM4#

sub62414-0D110

main62414-0D120iNCP93..MA200710-201004

main62414-0D120-B1iNCP93..(E,J,S)..MA201004-201310

DK.GRAY,TRIM1#

sub62414-0D120

main62414-0D120-E1iNCP93..G..MA201004-201310

ASH BROWN,TRIM4#

sub62414-0D120

62471AGARNISH, ROOF SIDE, INNER RH

main62471-0D170-B0iNCP93..(15E,15G,15J,LIMO)..(IDN,TH,VN)200702-201403

GRAY,TRIM1#

main62471-0D170-E0iNCP93..(15E,15G,15J,E,G,LIMO)..(IDN,TH,VN)200702-201403

GREGE,TRIM4#

main62471-0D180-B0iNCP9#..MA,PH200708-201310

GRAY,TRIM1#

main62471-0D180-E0iNCP93..MA200710-201310

GREGE,TRIM4#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-0D190-B0iNCP93..(15E,15G,15J,15S,E,LIMO)..(IDN,TH,VN)200702-201403

GRAY,TRIM1#

main62472-0D190-E0iNCP93..(15E,15G,15J,E,G,LIMO)..(IDN,TH,VN)200702-201403

GREGE,TRIM4#

main62472-0D200-B0iNCP9#..MA,PH200708-201310

GRAY,TRIM1#

main62472-0D200-E0iNCP93..G..MA200710-201310

GREGE,TRIM4#

62551ACOVER, REAR SEAT SIDE, RH

main62551-0D050iNCP93..IDN,TH200702-201004

main62551-0D050-B0iNCP92;NCP93..ATM..(IDN,PH,TH);NCP93..MTM..(15G,LIMO)..IDN;NCP93..MTM..(15E,15G,15J,LIMO)..(PH,TH,VN)201003-201403

DK.GRAY,TRIM1#

sub62551-0D050

main62551-0D050-E0iNCP93..(15E,15G,E,G)..(IDN,TH,VN)201003-201403

ASH BROWN,TRIM4#

sub62551-0D050

main62551-0D060iNCP93..MA200710-201004

main62551-0D060-B0iNCP93..(E,J,S)..MA201004-201310

DK.GRAY,TRIM1#

sub62551-0D060

main62551-0D060-E0iNCP93..G..MA201004-201310

ASH BROWN,TRIM4#

sub62551-0D060

62552ACOVER, REAR SEAT SIDE, LH

main62552-0D030iNCP9#..LHD200702-201004

main62552-0D030-B0iNCP92;NCP93..ATM..(IDN,PH,TH);NCP93..MTM..(15G,LIMO)..IDN;NCP93..MTM..(15E,15G,15J,LIMO)..(PH,TH,VN)201003-201403

DK.GRAY,TRIM1#

sub62552-0D030

main62552-0D030-E0iNCP93..(15E,15G,E,G)..(IDN,TH,VN)201003-201403

ASH BROWN,TRIM4#

sub62552-0D030

main62552-0D040iNCP93..MA200710-201004

main62552-0D040-B0iNCP93..(E,J,S)..MA201004-201310

DK.GRAY,TRIM1#

sub62552-0D040

main62552-0D040-E0iNCP93..G..MA201004-201310

ASH BROWN,TRIM4#

sub62552-0D040

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0D120iNCP93..IDN,TH200702-201003

main67913-0D120-B0iNCP93..MTM..TH;NCP93..ATM..(IDN,TH);NCP93..MTM..(15G,LIMO)..IDN201003-201304

DK.GRAY,TRIM1#

sub67913-0D120

main67913-0D120-E0iNCP93..RHD..(15E,15G)201003-201304

ASH BROWN,TRIM4#

sub67913-0D120

main67913-0D130iNCP9#..MA,PH200708-201004

main67913-0D130-B0iNCP9#..(13E,13J,15G,E,J,S)..(MA,PH)201004-201310

DK.GRAY,TRIM1#

sub67913-0D130

main67913-0D130-E0iNCP93..G..MA201004-201310

ASH BROWN,TRIM4#

sub67913-0D130

main67913-0D180iNCP93..VN200709-201004

main67913-0D180-B0iNCP93..LIMO..VN201004-201403

DK.GRAY,TRIM1#

sub67913-0D180

main67913-0D180-E0iNCP93..(E,G)..VN201004-201403

ASH BROWN,TRIM4#

sub67913-0D180

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0D130iNCP93..IDN,TH200702-201004

main67914-0D130-B0iNCP93..ATM..(IDN,TH);NCP93..MTM..(15G,LIMO)..IDN;NCP93..MTM..(15E,15J,LIMO)..(TH,VN)201003-201403

DK.GRAY,TRIM1#

sub67914-0D130

main67914-0D130-E0iNCP93..(15E,15G,E,G)..(IDN,TH,VN)201003-201403

ASH BROWN,TRIM4#

sub67914-0D130

main67914-0D140iNCP9#..MA,PH200708-201004

main67914-0D140-B0iNCP9#..(13E,13J,15G,E,J,S)..(MA,PH)201004-201310

DK.GRAY,TRIM1#

sub67914-0D140

main67914-0D140-E0iNCP93..G..MA201004-201310

ASH BROWN,TRIM4#

sub67914-0D140

67917APLATE, REAR DOOR SCUFF, RH

main67917-0D080iNCP93..VN200702-201004

main67917-0D080-B0iNCP93..ATM..(IDN,TH);NCP93..MTM..(15G,LIMO)..IDN;NCP93..MTM..(15E,15J,LIMO)..(TH,VN)201003-201403

DK.GRAY,TRIM1#

sub67917-0D080

main67917-0D080-E0iNCP93..(15E,15G,E,G)..(IDN,TH,VN)201003-201403

ASH BROWN,TRIM4#

sub67917-0D080

main67917-0D090iNCP9#..MA,PH200708-201004

main67917-0D090-B0iNCP9#..(13E,13J,15G,E,J,S)..(MA,PH)201004-201310

DK.GRAY,TRIM1#

sub67917-0D090

main67917-0D090-E0iNCP93..G..MA201004-201310

ASH BROWN,TRIM4#

sub67917-0D090

67918APLATE, REAR DOOR SCUFF, LH

main67918-0D080iNCP93..VN200702-201004

main67918-0D080-B0iNCP93..ATM..(IDN,TH);NCP93..MTM..(15G,LIMO)..IDN;NCP93..MTM..(15E,15J,LIMO)..(TH,VN)201003-201403

DK.GRAY,TRIM1#

sub67918-0D080

main67918-0D080-E0iNCP93..(15E,15G,E,G)..(IDN,TH,VN)201003-201403

ASH BROWN,TRIM4#

sub67918-0D080

main67918-0D090iNCP9#..MA,PH200708-201004

main67918-0D090-B0iNCP9#..(13E,13J,15G,E,J,S)..(MA,PH)201004-201310

DK.GRAY,TRIM1#

sub67918-0D090

main67918-0D090-E0iNCP93..G..MA201004-201310

ASH BROWN,TRIM4#

sub67918-0D090

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-52140iNCP93..IDN,TH200702-201403

9046710167

main90467-10167

90467T0021

main90467-T0021

24 parts on this diagram · 1 diagram in section
