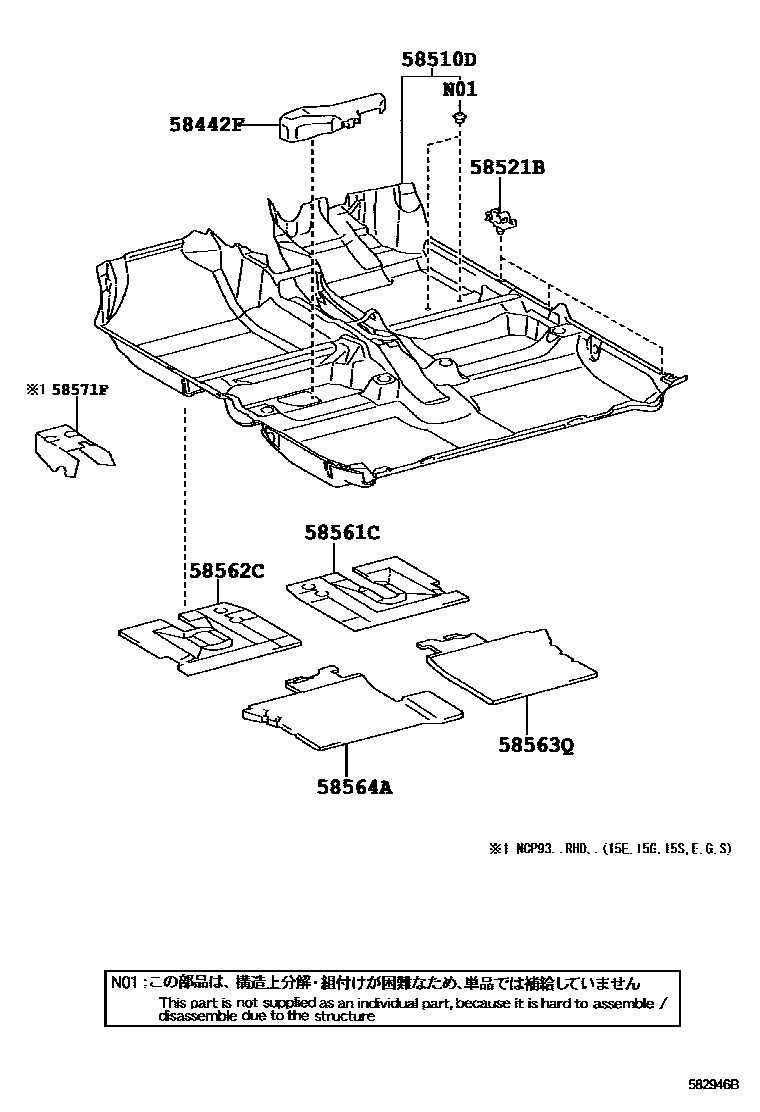

MAT & CARPET

0001 1 0002 1

58442FCOVER, JACK

main58442-0D050-B0iNCP9#200702-201403

DK.GRAY

58510DCARPET ASSY, FLOOR, FRONT

main58510-0D560-B0iNCP93..15S200702-201003

GRAY,TRIM1#,4#

sub58510-0D840

main58510-0D560-B0iNCP93..RHD..(15E,15G,15J,LIMO)200702-201003

GRAY,TRIM1#

sub58510-0D840

main58510-0D570-B0iNCP93..MA200710-201004

GRAY,TRIM1#,4#

main58510-0D570-B0iNCP93..(E,J,S)..MA201004-201310

GRAY,TRIM1#

main58510-0D570-E0iNCP93..G..MA201004-201310

GREGE,TRIM4#

main58510-0D610-B0iNCP93..(E,G)..VN200709-201004

GRAY,TRIM4#

main58510-0D610-B0iNCP9#..LHD..(13E,13J,15G,LIMO)200708-201004

GRAY,TRIM1#

main58510-0D610-B1iNCP9#..LHD..(13E,13J,15G,LIMO)201004-201403

GRAY,TRIM1#

main58510-0D610-E0iNCP93..(E,G)..VN201004-201403

GREGE,TRIM4#

main58510-0D840-B0iNCP93..MTM..TH;NCP93..ATM..(IDN,TH);NCP93..MTM..(15G,LIMO)..IDN201003-201304

GRAY,TRIM1#

main58510-0D840-E0iNCP93..RHD..(15E,15G)201003-201304

GREGE,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-0D070iNCP93..IDN,TH200702-201304

main58521-52040iNCP9#..MA,PH,VN¥390200708-201403

58561CSILENCER, FRONT FLOOR, NO.1

main58561-0D080iNCP93..IDN,TH200702-201403

58562CSILENCER, FRONT FLOOR, NO.2

main58562-0D080iNCP93..IDN,TH200702-201403

58563QSILENCER, FRONT FLOOR, NO.3

main58563-0D090iNCP93..IDN,TH200702-201403

58564ASILENCER, FRONT FLOOR, NO.4

main58564-0D100iNCP93..IDN,TH200702-201403

58571FPAD, FRONT FLOOR, FRONT

main58571-0D020iNCP93..RHD..(15E,15G,15S)200702-201403

8 parts on this diagram · 2 diagrams in section
