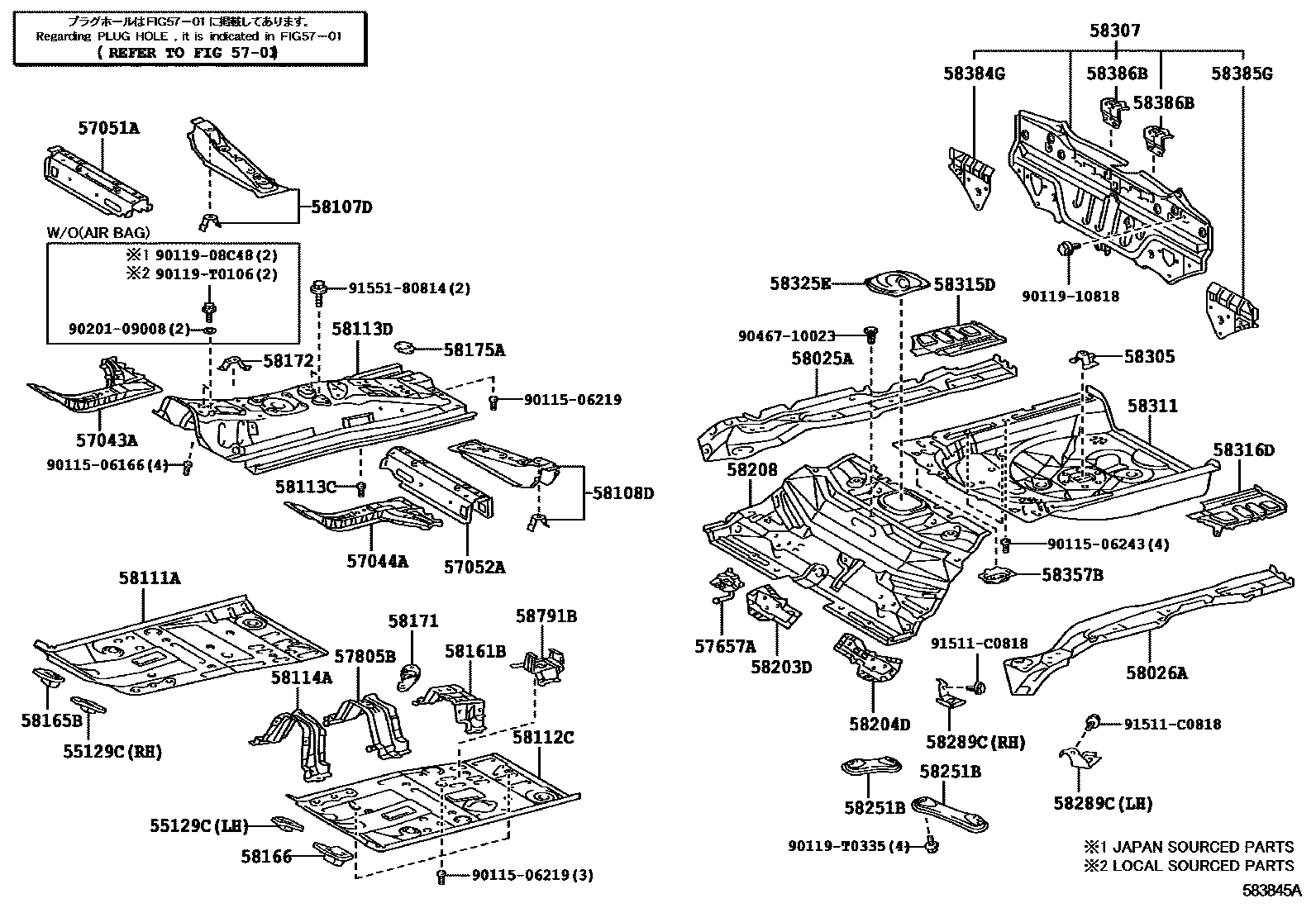

FLOOR PAN & LOWER BACK PANEL

0001 1 0003 1

55129CCOVER, DASH PANEL HOLE

main55129-0D110iNCP9#..MA,PH,VN200702-201004

RH

main55139-0D030iNCP93..IDN,TH200702-201003

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-0D020iNCP9#..MA,PH,VN200702-201004

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-0D050iNCP93..IDN,TH200702-201003

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-0D020iNCP93..IDN,TH200702-201003

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-0D020iNCP9#..MA,PH,VN200702-201004

57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2

main51904-0D020iNCP93..IDN,TH200702-201003

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-0D070iNCP93..IDN,TH200702-201003

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-0D020iNCP93..IDN,TH200702-201003

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-0D020iNCP93..IDN,TH200702-201003

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-0D010iNCP93..IDN,TH200702-201003

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-0D010iNCP9#..MA,PH,VN200702-201004

58111APAN, FRONT FLOOR, RH

main58111-0D060iNCP93..MA200710-201004

main58111-52170iNCP93..IDN,TH200702-201003

58112CPAN, FRONT FLOOR, LH

main58112-0D901iNCP93..MA201004-201310

main58112-52904iNCP93..IDN,TH200702-201003

sub58112-52921

58113CBOLT, WELD(FOR FRONT FLOOR PANEL, CENTER)

main90115-06243×2iNCP9#..MA,PH,VN200702-201004

58113DPANEL, FRONT FLOOR SIDE, NO.1 RH

main58113-0D902iNCP93..MA201004-201301

main58113-0D906iNCP93..MA201301-201310

main58113-52904iNCP9#..IDN,PH,TH,VN201003-201301

main58113-52920iNCP9#..IDN,PH,TH,VN201301-201403

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-0D060iNCP93..IDN,TH200702-201003

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-0D060iNCP93..IDN,TH200702-201003

58165BCOVER, FRONT FLOOR, RH

main58165-0D010iNCP93..IDN,TH200702-201003

58166COVER, FRONT FLOOR, LH

main58166-0D010iNCP93..IDN,TH200702-201003

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-0D040iNCP9#201003-201403

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-0D020iNCP93..IDN,TH200702-201003

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-0D010iNCP93..IDN,TH200702-201003

58203DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH

main58203-0D010iNCP9#201003-201403

58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

main58204-0D010iNCP93..IDN,TH200702-201003

58208PAN, CENTER FLOOR

main58211-0D060iNCP93..MA200710-201004

main58211-52190iNCP9#..IDN,PH,TH,VN201003-201403

58251BBRACE, FLOOR PANEL, FRONT

main58251-52020×2iNCP93..IDN,TH200702-201003

58289CBRACKET, FLOOR BRAKE HOSE, REAR

main58289-0D050iNCP93..IDN,TH200702-201003

RH

main58289-52030iNCP9#..MA,PH,VN200708-201004

RH

main58289-52080iNCP9#..MA,PH,VN201109-201403

RH

main58299-0D050iNCP93..IDN,TH201003-201304

LH

main58299-52060iNCP9#..MA,PH,VN201004-201108

LH

main58299-52100iNCP9#..MA,PH,VN201109-201403

LH

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-0D041iNCP93..IDN,TH200702-201003

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0D100iNCP93200702-200707

main58307-0D101iNCP9#201003-201403

58311PAN, REAR FLOOR

main58311-0D050iNCP93..MA200710-201004

main58311-52210iNCP93..IDN,TH200702-201003

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-0D060iNCP9#201003-201403

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-0D060iNCP93..IDN,TH200702-201003

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0D040iNCP93..IDN,TH200702-201003

main58325-52050iNCP9#..MA,PH,VN201004-201403

58357BBRACKET, ACTUATOR COVER, NO.3 RH

main58357-0D030iNCP9#..MA,PH,VN201003-201302

58384GGUSSET, LOWER BACK, UPPER RH

main58384-0D040iNCP93200702-200707

58385GGUSSET, LOWER BACK, UPPER LH

main58385-0D070iNCP93200702-200707

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-0D020×2iNCP93200702-200707

58791BCARRIER, JACK

main58791-0D070iNCP93..IDN,TH200702-201003

9011506166

main90115-06166

9011506219

main90115-06219

9011506243

main90115-06243

9011908C48

main90119-08C48

9011910818

main90119-10818

90119T0106

main90119-T0106

90119T0335

main90119-T0335

9020109008

main90201-09008

9046710023

main90467-10023

91511C0818

main91511-C0818

9155180814

main91551-80814

50 parts on this diagram · 2 diagrams in section
