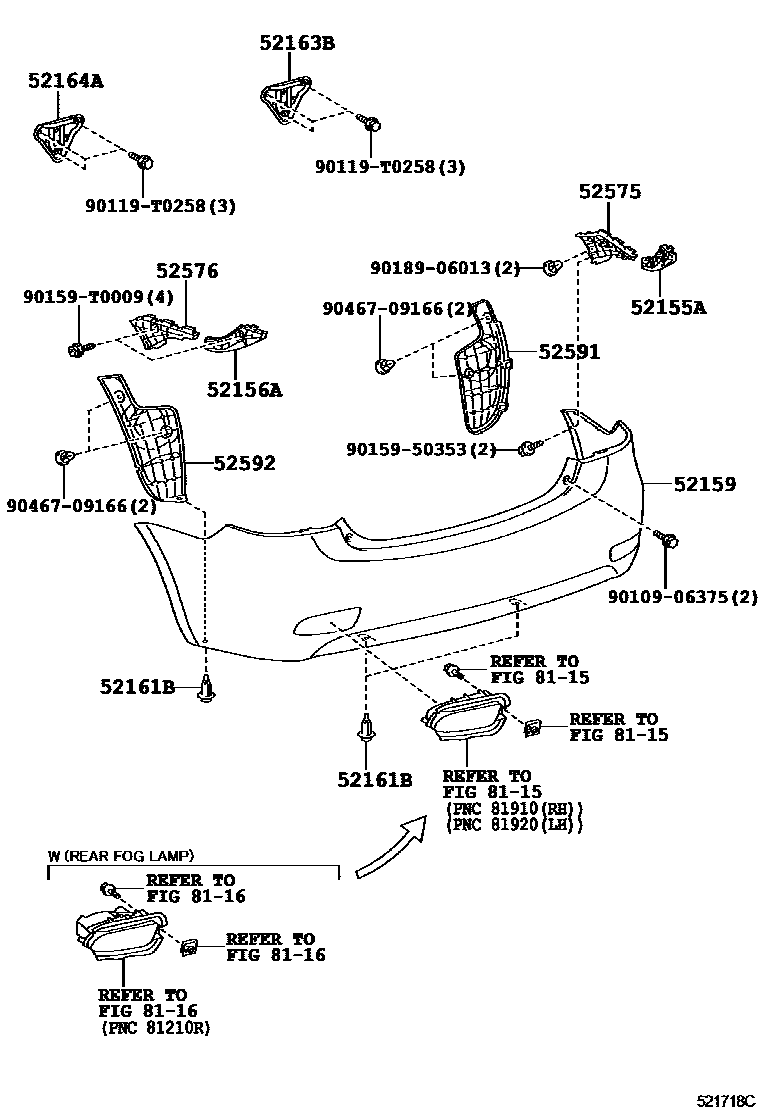

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0D030iNCP9#201003-201403

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0D030iNCP93..IDN,TH200702-201003

52159COVER, REAR BUMPER

main52159-0D983iNCP9#..LHD200702-201004

PAINT REQ.

main52159-0D984iNCP93..MA201004-201310

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-0K040×4iNCP9#201003-201403

main52161-16010×4iNCP93..IDN,TH200702-201003

52163BBRACKET, REAR LICENSE LAMP MOUNTING

main52163-0D040iNCP9#201003-201403

52164APLATE, REAR BUMPER, LH

main52164-0D040iNCP93..IDN,TH200702-201003

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D070iNCP93..IDN,TH200702-201003

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D070iNCP93..IDN,TH200702-201003

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D080iNCP93..IDN,TH200702-201003

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D080iNCP93..IDN,TH200702-201003

8115

8116

9010906375

main90109-06375

90119T0258

main90119-T0258

9015950353

main90159-50353

90159T0009

main90159-T0009

9018906013

main90189-06013

9046709166

main90467-09166

18 parts on this diagram · 1 diagram in section
