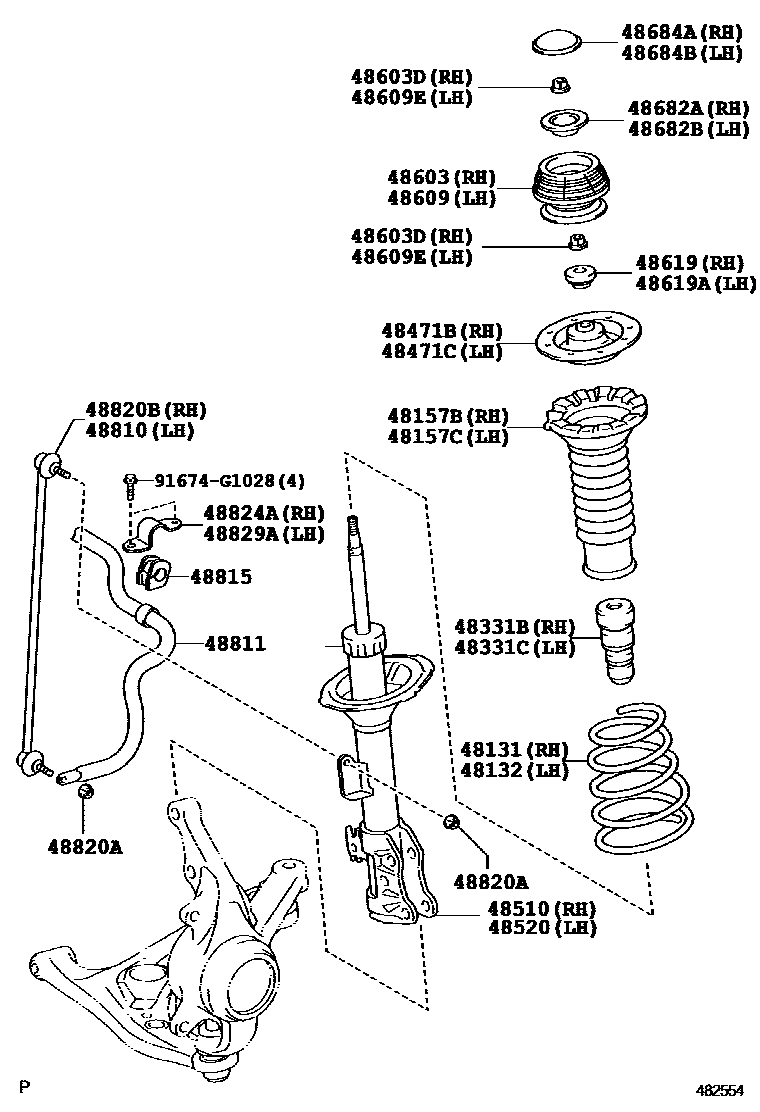

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0D330iNCP93..MTM..(IDN,TH)200702-201003

main48131-0D340iNCP93..ATM..(IDN,TH)200702-201003

main48131-0D410iNCP93..MTM..MA200710-201004

main48131-0D420iNCP93..ATM..MA200710-201004

48132SPRING, FRONT COIL, LH

main48131-0D330iNCP93..MTM..(IDN,TH)200702-201003

main48131-0D340iNCP93..LHD..ATM200702-201004

main48131-0D410iNCP93..MTM..MA200710-201004

main48131-0D420iNCP93..ATM..MA200710-201004

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-0D060iNCP9#..LHD200702-201004

main48157-52030iNCP93..MA200710-201004

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-0D060iNCP9#..IDN,PH,TH,VN201003-201403

main48157-52030iNCP93..MA201004-201310

48331BBUMPER, FRONT SPRING, RH

main48331-52100×2iNCP9#..MA,PH,VN200702-201004

48331CBUMPER, FRONT SPRING, LH

main48331-52100×2iNCP93..IDN,TH200702-201003

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-52030×2iNCP93..IDN,TH200702-201003

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-52030×2iNCP93..IDN,TH200702-201003

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-0D240iNCP9#..IDN,PH,TH,VN201003-201205

MARK 48510-0D240

main48510-0D241iNCP9#..IDN,PH,TH,VN201206-201211

MARK 48510-0D241

main48510-0D242iNCP9#..IDN,PH,TH,VN201212-201403

MARK 48510-0D242

main48510-0D260iNCP93..MA200710-200806

MARK 48510-0D260

main48510-0D261iNCP93..MA200807-200809

MARK 48510-0D261

main48510-0D262iNCP93..MA201004-201205

MARK 48510-0D262

main48510-0D263iNCP93..MA201206-201310

MARK 48510-0D263

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-0D080iNCP9#..IDN,PH,TH,VN201003-201205

MARK 48520-0D080

main48520-0D081iNCP9#..IDN,PH,TH,VN201206-201211

MARK 48520-0D081

main48520-0D082iNCP9#..IDN,PH,TH,VN201212-201403

MARK 48520-0D082

main48520-0D100iNCP93..MA200710-200806

MARK 48520-0D100

main48520-0D101iNCP93..MA200807-200809

MARK 48520-0D101

main48520-0D102iNCP93..MA201004-201205

MARK 48520-0D102

main48520-0D103iNCP93..MA201206-201310

MARK 48520-0D103

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0D050iNCP9#..MA,PH,VN200702-201004

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-12145×2iNCP93..IDN,TH200702-201003

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0D050iNCP93..IDN,TH200702-201003

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-12145×2iNCP93..IDN,TH200702-201003

48619BEARING, STRUT MOUNTING, RH

main48619-0D010×2iNCP93200702-200703

main48619-0D011×2iNCP93..IDN,TH200703-201003

48619ABEARING, STRUT MOUNTING, LH

main48619-0D010×2iNCP93200702-200703

main48619-0D011×2iNCP93..IDN,TH200703-201003

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-0D030iNCP93..IDN,TH200702-201003

main48682-0D031iNCP9#201206-201403

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-0D030iNCP93..IDN,TH200702-201003

main48682-0D031iNCP9#201206-201403

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52020iNCP93..IDN,TH200702-201003

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52020iNCP93..IDN,TH200702-201003

48810LINK ASSY, FRONT STABILIZER, LH

main48820-0D020iNCP93..IDN,TH200702-201003

main48820-52030iNCP9#..MA,PH201004-201310

48811BAR, STABILIZER, FRONT

main48811-0D080iNCP9#..MA,PH,VN200702-201004

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0D080×2iNCP9#200702-200808

main48815-0D081×2iNCP93..IDN,TH200809-201003

sub48815-0D250

main48815-52080×2iNCP93..(15E,15G,15J)..TH200702-200809

SINGAPORE & BRUNEI SPEC

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151×4iNCP93..IDN,TH200702-201003

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0D020iNCP93..IDN,TH200702-201003

main48820-52030iNCP9#..MA,PH200708-201004

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-0D030iNCP93..VN200702-201004

main48824-52060iNCP9#..MA,PH200708-201004

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-0D030iNCP93..IDN,TH,VN201003-201403

main48824-52060iNCP9#..MA,PH201004-201310

91674G1028

main91674-G1028

28 parts on this diagram · 1 diagram in section
