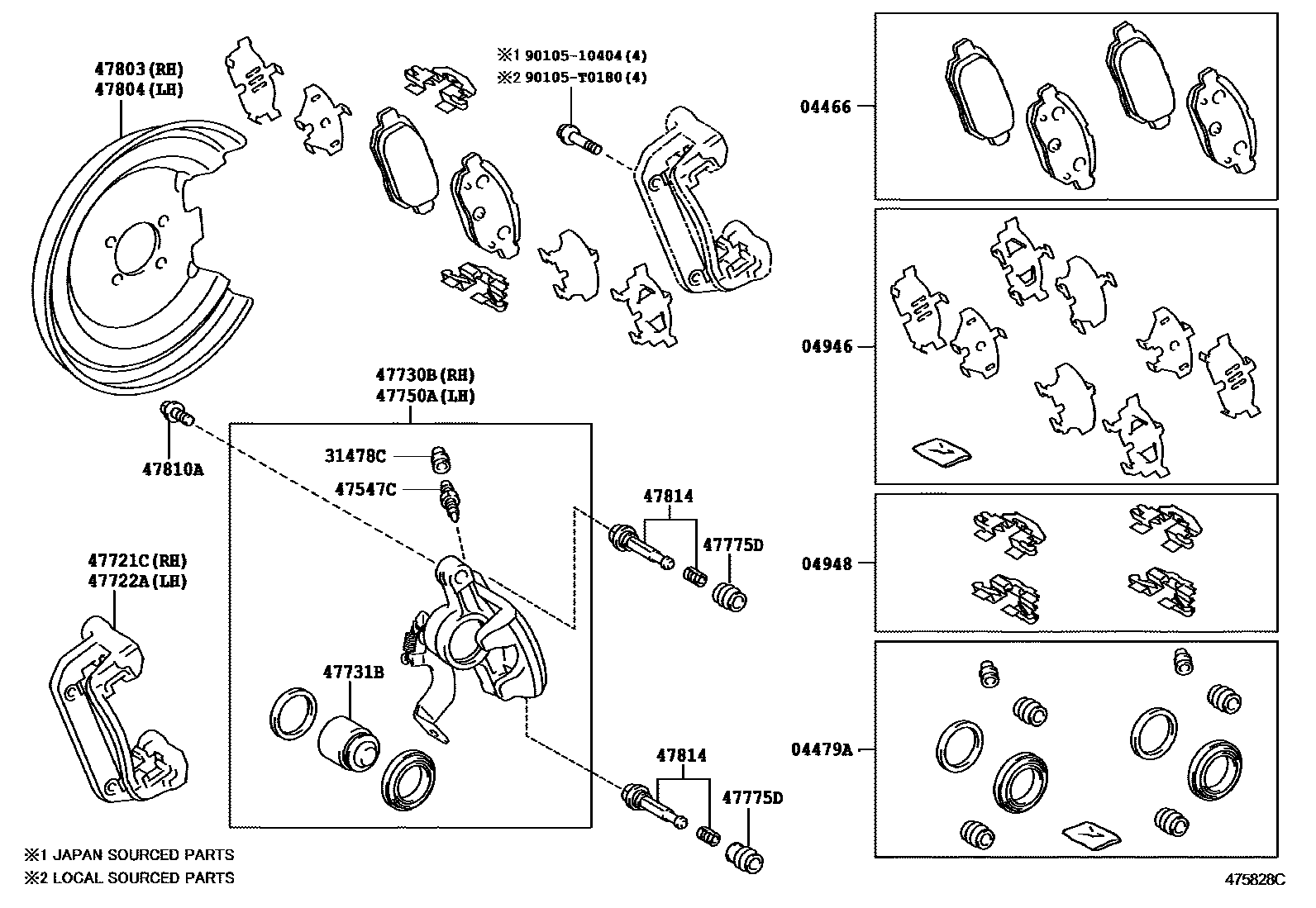

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52130iNCP93..15S;NCP93..15G..IDN200702-201003

MARK NBK D6247,SINGAPORE & BRUNEI SPEC

main04466-52160iNCP93..E..VN;NCP93..15G,G,S201202-201403

MARK NBK D6247

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52170iNCP93..(15S,E)..(TH,VN);NCP93..(15G,G,S)..(IDN,MA,PH,VN)200702-200807

SINGAPORE & BRUNEI SPEC

main04479-52250iNCP93..15G..TH200807-201003

SINGAPORE & BRUNEI SPEC

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52080iNCP93..E..VN;NCP93..15G,G,S201003-201403

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060iNCP93..E..VN;NCP93..15G,G,S201202-201403

main04948-52040iNCP93..E..VN;NCP93..15G,G,S201003-201201

W(REAR DISK BRAKE)

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010×2iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050×2iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12150iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12150iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-52090iNCP93..(15S,E)..(TH,VN);NCP93..(15G,G,S)..(IDN,MA,PH,VN)200702-200810

SINGAPORE & BRUNEI SPEC

main47830-52161iNCP93..15G..TH200810-201003

SINGAPORE & BRUNEI SPEC

47731BPISTON, REAR DISC BRAKE

main47831-52090×2iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52090iNCP93..(15S,E)..(TH,VN);NCP93..(15G,G,S)..(IDN,MA,PH,VN)200702-200810

SINGAPORE & BRUNEI SPEC

main47850-52161iNCP93..E..VN;NCP93..(15G,G,S)..(MA,PH,VN)200810-201004

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150×4iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-0D030iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

main47803-52010iNCP93..E..VN;NCP93..(15G,G,S)..(MA,PH,VN)200702-201004

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-0D030iNCP93..15S;NCP93..15G..IDN200702-201003

SINGAPORE & BRUNEI SPEC

main47804-52010iNCP93..E..VN;NCP93..(15G,G,S)..(MA,PH,VN)200702-201004

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102×4iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47835-12150×4iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

9010510404

main90105-10404

90105T0180

main90105-T0180

18 parts on this diagram · 1 diagram in section
