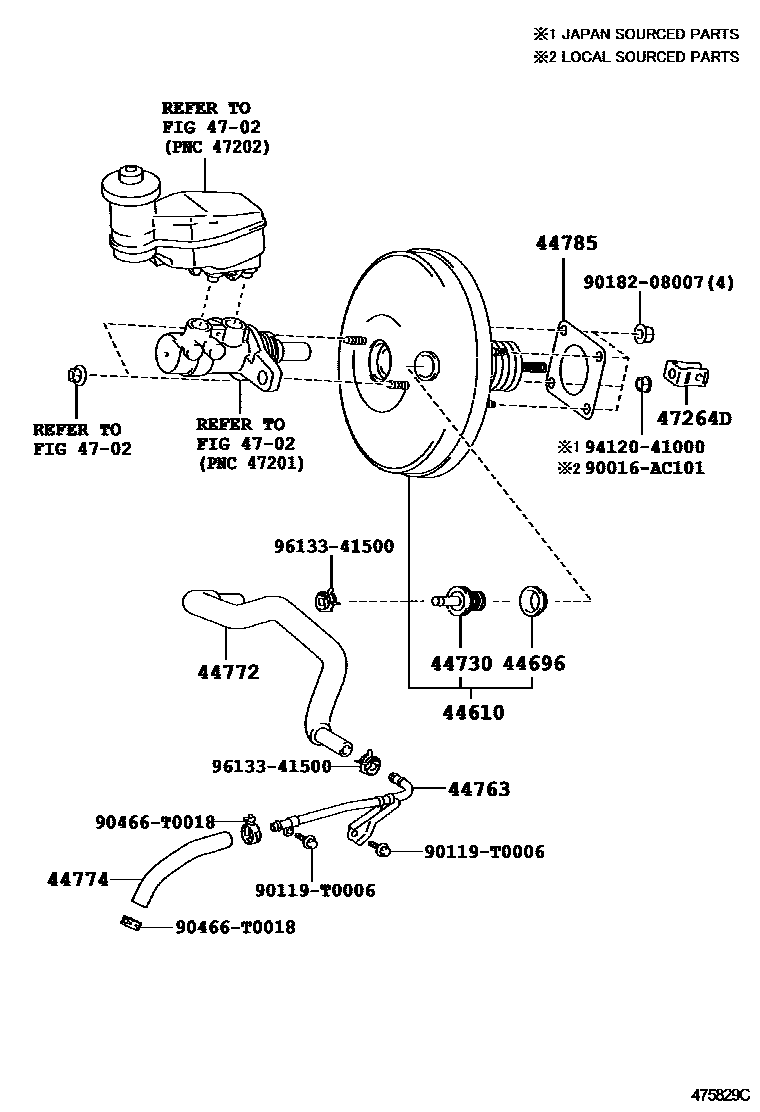

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-0D200iNCP93..RHD..MTM..(15J,LIMO)200702-200806

main44610-0D210iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

main44610-0D220iNCP93..ATM..15J200806-201003

J-ECO PACKAGE

main44610-52570iNCP92..13E201004-201307

main44610-52650iNCP93..LHD..(15G,E,G)200708-201004

main44610-52660iNCP9#..LHD..(13J,LIMO)200708-201004

44696GROMMET, CHECK VALVE

main90080-48050iNCP93..RHD201003-201310

main90480-24439iNCP9#..LHD201004-201403

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iNCP9#..LHD200708-201004

main44730-22150iNCP93..IDN,TH200702-201003

44763TUBE, BOOSTER VACUUM

main44763-0D080iNCP9#201112-201403

(L)

main44763-52080iNCP9#201112-201403

(J)

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0D050iNCP93..IDN,TH200702-201003

main44772-52090iNCP9#..LHD200708-201004

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP9#..MA,PH,VN200702-201004

44785GASKET, BRAKE BOOSTER

main44785-0D020iNCP9#..LHD200702-201004

main44785-0D030iNCP93..MA200710-201004

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0D040iNCP93..MA200702-201004

main47264-52050iNCP9#..LHD201004-201403

90016AC101

main90016-AC101

90119T0006

main90119-T0006

9018208007

main90182-08007

90466T0018

main90466-T0018

9412041000

main94120-41000

9613341500

main96133-41500

15 parts on this diagram · 3 diagrams in section
