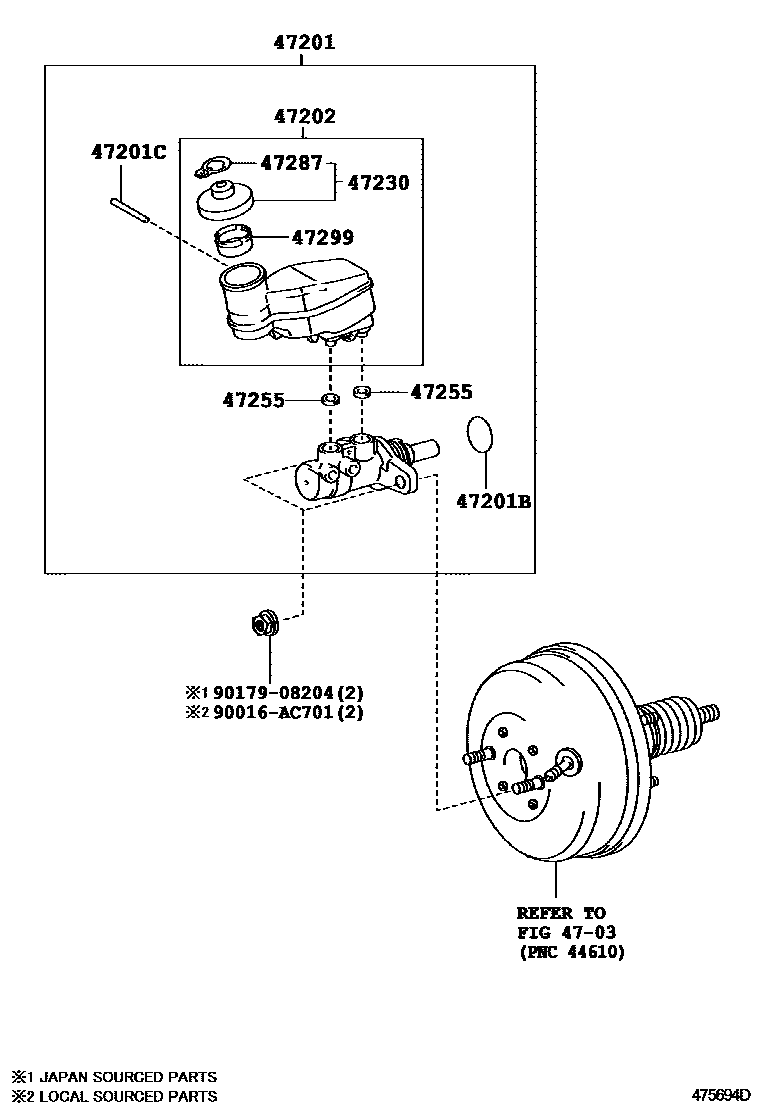

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0D200iNCP93..MTM..15G..IDN200702-201203

sub47201-0D201

main47201-0D201iNCP93..MTM..15G..IDN201204-201207

sub47201-0D202

main47201-0D202iNCP93..MTM..15G..IDN201208-201304

main47201-0D240iNCP93..ATM..(15E,15J,E,J)200702-201310

main47201-0D250iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

sub47201-0D251

main47201-0D250iNCP93..(G,S)..MA200702-201004

sub47201-0D251

main47201-0D250iNCP93..RHD..ATM..(15G,G,S)201003-201203

W(REAR DISK BRAKE)

sub47201-0D251

main47201-0D251iNCP93..RHD..ATM..(15G,G,S)201204-201207

W(REAR DISK BRAKE)

sub47201-0D252

main47201-0D252iNCP93..RHD..ATM..(15G,G,S)201208-201310

main47201-0D260iNCP93..RHD..MTM..(15E,15J,LIMO)200702-201310

main47201-52320iNCP92..ATM201004-201307

main47201-52330iNCP9#..LHD..MTM..(13E,13J,LIMO)200708-201403

main47201-52340iNCP93..LHD..MTM..(15G,E)200708-201403

main47201-52360iNCP93..LHD..ATM200708-201403

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iNCP93..MA200702-201310

main90029-20059iNCP9#..LHD200708-201403

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNCP93..IDN,TH200702-201310

main90029-15804iNCP9#..LHD200708-201403

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-0D100iNCP93..ATM..MA200702-201310

main47220-0D110iNCP93..MTM..(IDN,TH)200702-201310

main47220-52160iNCP9#..LHD..ATM200708-201403

main47220-52170iNCP9#..LHD..MTM200708-201403

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0K010iNCP93..RHD200702-201310

main47230-28240iNCP9#..LHD200708-201403

47255GROMMET, MASTER CYLINDER RESERVOIR

main31417-35010iNCP9#..LHD200708-201403

main90016-AT001iNCP93..RHD..(15G,G,S)201204-201310

main90029-48001iNCP93..RHD..(15G,G,S)200702-201310

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNCP9#..MA,PH,VN200702-201403

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0D100iNCP93..IDN,TH200702-201310

main47299-25010iNCP9#..LHD200708-201403

90016AC701

main90016-AC701

9017908204

main90179-08204

11 parts on this diagram · 2 diagrams in section
