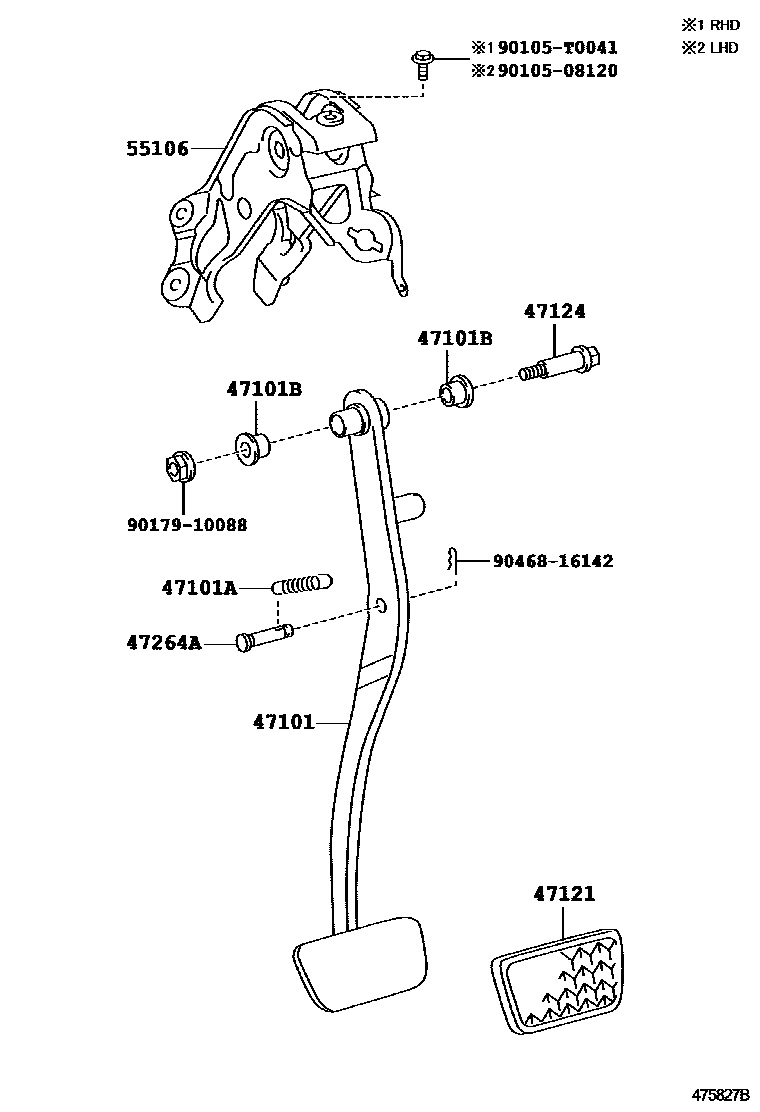

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-0D120iNCP93..RHD..MTM200702-201310

main47101-0D130iNCP93..RHD..ATM200702-201310

main47101-0D180iNCP9#..LHD..MTM..(13E,15G,E)200708-201403

main47101-0D190iNCP9#..LHD..ATM200708-201403

main47101-0D200iNCP9#..LHD..(13J,LIMO)200708-201403

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCP9#200702-201212

main90506-14088iNCP9#..MA,PH,VN201301-201403

main90506-T0015iNCP93..IDN,TH201006-201304

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNCP93..IDN,TH200702-201403

47121PAD, BRAKE PEDAL

main31321-0D040iNCP93..RHD..MTM200911-201310

sub31321-52010

main31321-52010iNCP9#..LHD..MTM200702-201403

main47121-0D050iNCP93..RHD..ATM200911-201310

main47121-52010iNCP93..RHD..ATM200702-201403

47124SHAFT, BRAKE PEDAL

main90109-10167iNCP93..IDN,TH200702-201403

47264APIN(FOR PUSH ROD)

main90249-08051iNCP9#200702-201403

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0D070iNCP93..RHD200702-201310

main55106-0D120iNCP9#..LHD..(13E,15G,E,G)200708-201208

main55106-0D130iNCP9#..LHD..(13J,LIMO)200708-201208

sub55106-0D230

main55106-0D220iNCP9#..LHD..(13E,15G,E,G)201208-201403

main55106-0D230iNCP9#..LHD..(13J,LIMO)201208-201403

9010508120

main90105-08120

90105T0041

main90105-T0041

9017910088

main90179-10088

9046816142

main90468-16142

11 parts on this diagram · 1 diagram in section
