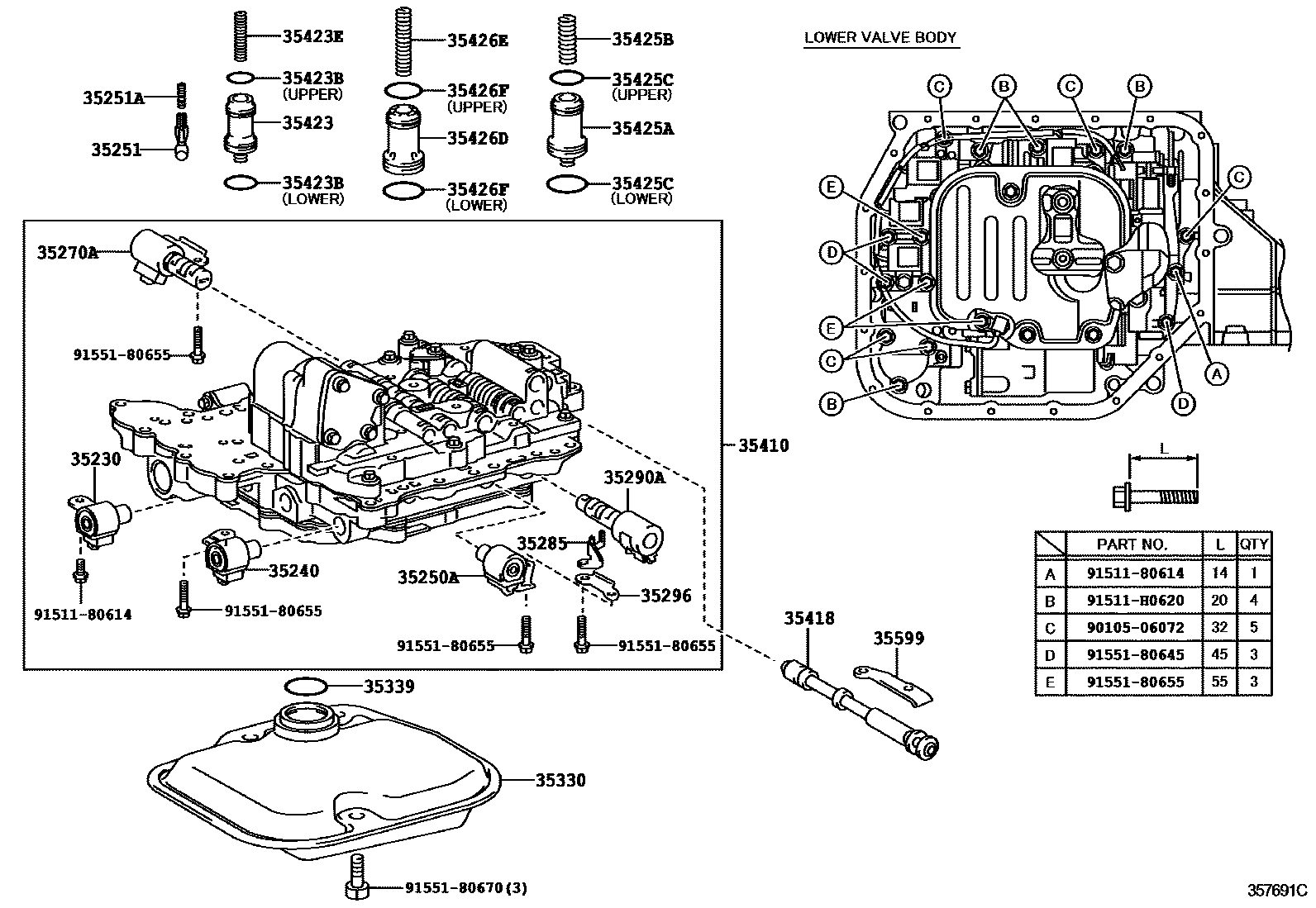

VALVE BODY & OIL STRAINER (ATM)

0001 1U340E 0002 1U441E 0003 1U340E 0004 1U441E

35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2

main35230-52020iNCP93..ATM..(IDN,TH)200702-201003

main35230-52021iNCP93..ATM201201-201403

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-52050iNCP93..ATM..(IDN,TH)200702-201003

main35240-52051iNCP93..ATM201201-201403

35250ASOLENOID ASSY, TRANSMISSION, NO.3

main35250-52060iNCP92..ATM201004-201307

DENSO

main35250-52070iNCP92..ATM201004-201307

AISIN

main35250-52080iNCP93..ATM201003-201403

35251BODY, CHECK BALL

main35251-30020iNCP93..ATM..(IDN,TH)200702-201003

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iNCP93..ATM..(IDN,TH)200702-201003

35270ASOLENOID ASSY, TRANSMISSION 3WAY LOCK UP

main35270-52011iNCP93..ATM200702-201004

35285PLATE, SOLENOID LOCK

main35285-52010iNCP92..ATM201004-201307

main35285-52030iNCP93..ATM..(IDN,TH)200702-201003

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-52010iNCP92..ATM201004-201307

35290ASOLENOID ASSY, LINE PRESSURE CONTROL

main35290-52040iNCP93..ATM..(MA,PH,VN)200702-201004

35296PLATE, SOLENOID LOCK, NO.3

main35296-12010iNCP93..ATM..(MA,PH,VN)200702-201004

35330STRAINER ASSY, VALVE BODY OIL

main35330-0W020iNCP93..ATM..(MA,PH,VN)200702-201004

main35330-0W021iNCP93..ATM201203-201403

main35330-52010iNCP92..ATM201004-201307

35339GASKET, OIL STRAINER

main35339-52010iNCP92..ATM201004-201307

main90301-32010iNCP93..ATM..(MA,PH,VN)200702-201004

main90301-32015iNCP93..ATM201307-201403

35410BODY ASSY, TRANSMISSION VALVE

main35410-52030iNCP92..ATM201004-201209

main35410-52141iNCP93..ATM..(IDN,TH)200702-201003

main35410-52142iNCP93..ATM201301-201403

main35410-52260iNCP92..ATM201209-201307

35418VALVE, MANUAL

main35418-52020iNCP93..ATM..(IDN,TH)200702-201003

35423PISTON, B-2 ACCUMULATOR

main35403-52020iNCP93..ATM..(MA,PH,VN)200702-201004

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-20010iNCP93..ATM..(IDN,TH)200702-201003

UPPER

main90301-29011iNCP93..ATM..(IDN,TH)200702-201003

LOWER

35423ESPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)

main90501-20158iNCP93..ATM..(IDN,TH)200702-201003

35425APISTON, C-2 ACCUMULATOR

main35405-52020iNCP93..ATM..(MA,PH,VN)200702-201004

main35425-52010iNCP92..ATM201004-201307

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-22042iNCP92..ATM201004-201307

main90501-24036iNCP93..ATM..(IDN,TH)200702-201003

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-21011iNCP92..ATM201004-201307

UPPER

main90301-22010iNCP93..ATM..(IDN,TH)200702-201003

UPPER

main90301-29012iNCP92..ATM201004-201307

LOWER

main90301-35004iNCP93..ATM..(IDN,TH)200702-201003

LOWER

35426DPISTON, C-3 ACCUMULATOR

main35426-52020iNCP93..ATM..(MA,PH,VN)200702-201004

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90501-25057iNCP93..ATM..(MA,PH,VN)200702-201004

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-24016iNCP93..ATM201003-201403

UPPER

main90301-29011iNCP93..ATM..(MA,PH,VN)200702-201004

LOWER

35599COVER, MANUAL DETENT SPRING

main35599-52010iNCP93..ATM..(MA,PH,VN)200702-201004

9010506072

main90105-06072

9151180614

main91511-80614

91511H0620

main91511-H0620

9155180645

main91551-80645

9155180655

main91551-80655

9155180670

main91551-80670

30 parts on this diagram · 4 diagrams in section
