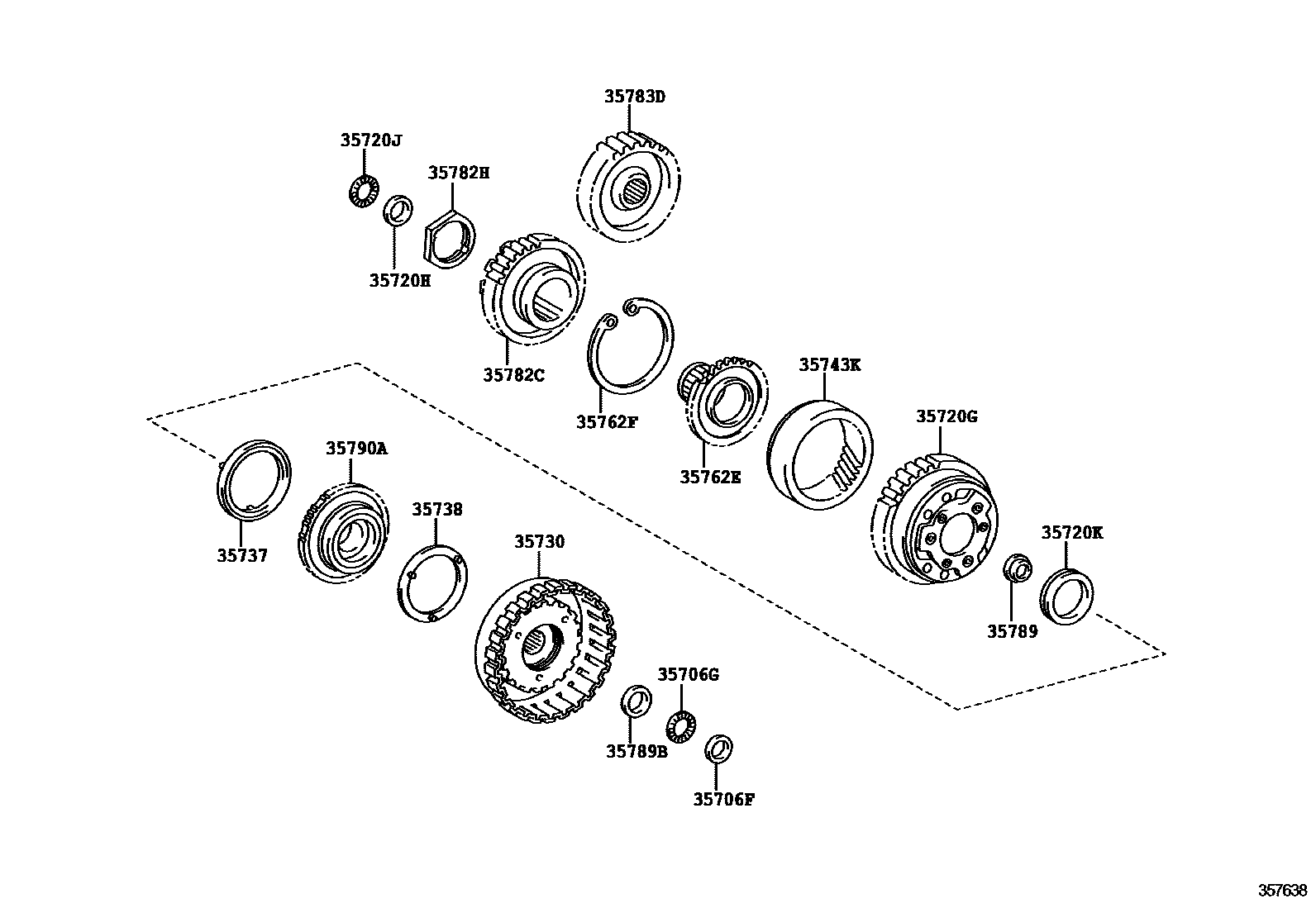

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1 0002 1U340E

35706FRACE, THRUST BEARING (FOR SUN GEAR REAR)

main35789-52050iNCP92..ATM201004-201307

35706GBEARING, THRUST (FOR SUN GEAR REAR)

main90374-18004iNCP92..ATM201004-201307

35720GGEAR ASSY, PLANETARY

main35720-52010iNCP92..ATM201004-201107

sub35720-52070

main35720-52021iNCP93..ATM..(MA,PH,VN)200702-201101

sub35720-52022

main35720-52022iNCP93..ATM201101-201403

main35720-52070iNCP92..ATM201107-201307

35720HRACE, THRUST BEARING(FOR PLANETARY GEAR)

main35789-52010iNCP92..ATM201004-201307

35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)

main90374-17001iNCP92..ATM201004-201307

main90374-33006iNCP93..ATM..(IDN,TH)200702-201403

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-33007iNCP93..ATM..(IDN,TH)200702-201403

main90374-42006iNCP92..ATM201004-201307

35730GEAR ASSY, REAR PLANETARY SUN

main35730-52010iNCP92..ATM201004-201307

main35730-52020iNCP93..ATM..(MA,PH,VN)200702-201403

35737WASHER, PLANETARY CARRIER THRUST

main35737-52010iNCP92..ATM201004-201307

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-52020iNCP92..ATM201004-201307

35743KGEAR, PLANETARY RING

main35743-52010iNCP92..ATM201004-201307

35762EFLANGE, PLANETARY RING GEAR

main35762-52010iNCP92..ATM201004-201307

35762FRING, HOLE SNAP(FOR PLANETARY RING GEAR)

main90520-89003iNCP92..ATM201004-201307

35782CGEAR, COUNTER DRIVE

main35782-52020iNCP93..ATM..(IDN,TH)200702-201403

main35782-52030iNCP92..ATM201004-201307

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-40009iNCP93..ATM200702-201403

main90179-44001iNCP92..ATM201004-201307

35783DGEAR, COUNTER DRIVEN

main35783-52030iNCP92..ATM201004-201307

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-52020iNCP92..ATM201004-201307

35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)

main35789-52040iNCP92..ATM201004-201307

35790ACLUTCH ASSY, 1 WAY

main35790-52010iNCP92..ATM201004-201307

main35790-52020iNCP93..ATM..(IDN,TH)200702-201403

18 parts on this diagram · 2 diagrams in section
