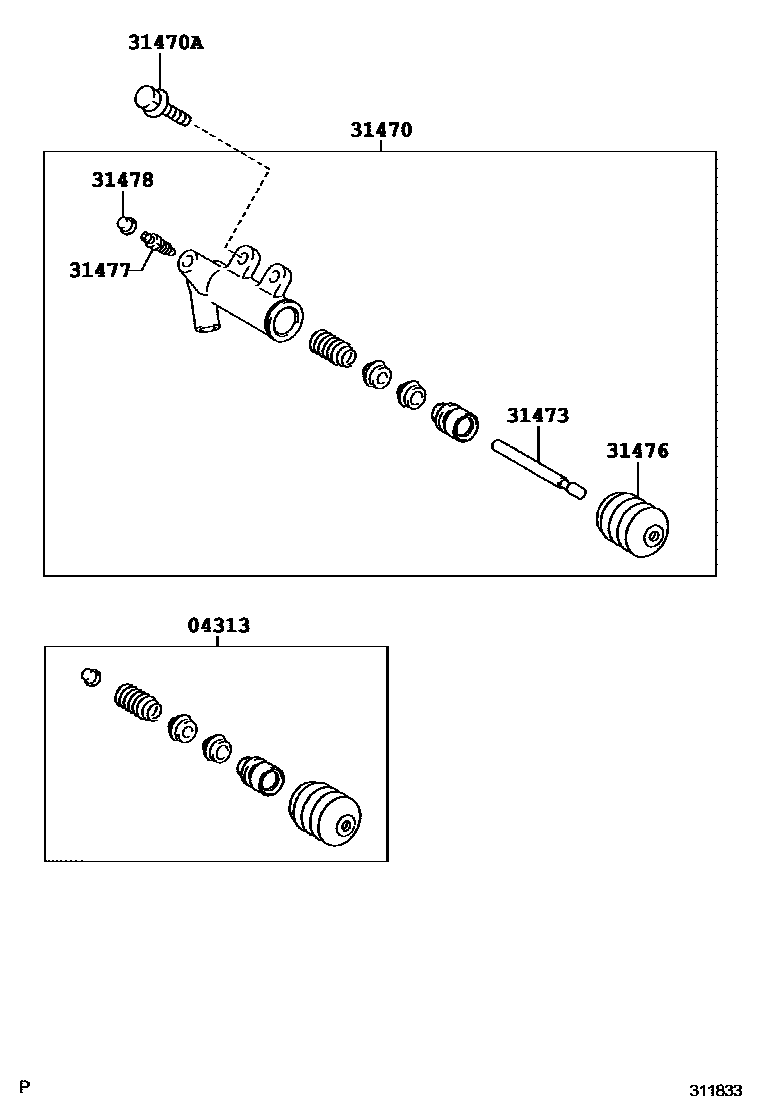

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-35060iNCP92..MTM201004-201307

main04313-52020iNCP93..MTM201003-201403

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-52111iNCP92..MTM201004-201307

main31470-52120iNCP93..MTM200702-200705

main31470-52121iNCP93..MTM..(MA,PH,VN)200705-201004

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822×2iNCP9#..MTM201003-201403

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iNCP93..MTM..(IDN,TH)200702-201003

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iNCP93..MTM..(IDN,TH)200702-201003

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNCP93..MTM..(IDN,TH)200702-201003

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNCP93..MTM..(IDN,TH)200702-201003

7 parts on this diagram · 1 diagram in section
