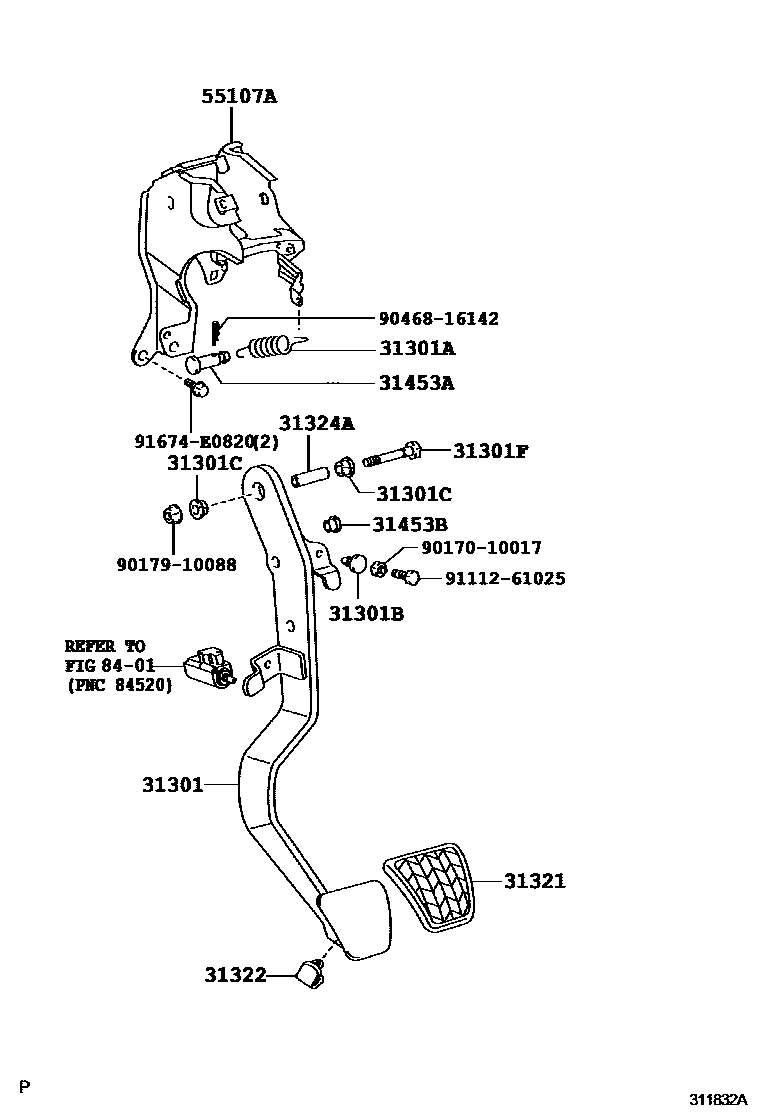

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0D080iNCP93..RHD..MTM200702-201310

main31311-52040iNCP9#..LHD..MTM200708-201403

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iNCP93..MTM..(IDN,TH)200702-201403

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNCP93..MTM..(IDN,TH)200702-201403

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNCP93..MTM..(IDN,TH)200702-201403

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10015iNCP93..MTM..(IDN,TH)200702-201310

main90101-10081iNCP9#..LHD..MTM200708-201012

main90105-10563iNCP9#..LHD..MTM201101-201403

31321PAD, CLUTCH PEDAL

main31321-0D040iNCP93..MTM..MA200911-201310

sub31321-52010

main31321-52010iNCP9#..LHD..MTM200702-201403

31322STOPPER, CLUTCH PEDAL

main31322-52010iNCP93..MTM..(IDN,TH)200702-201310

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iNCP93..MTM..(IDN,TH)200702-201310

main90387-10004iNCP9#..LHD..MTM200708-201403

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iNCP93..MTM..(IDN,TH)200702-201310

L=31.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iNCP93..MTM..(IDN,TH)200702-201310

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0D090iNCP93..RHD..MTM200702-201310

main55107-52120iNCP9#..LHD..MTM200708-201012

sub55107-52121

main55107-52121iNCP9#..LHD..MTM201101-201403

8401

9017010017

main90170-10017

9017910088

main90179-10088

9046816142

main90468-16142

9111261025

main91112-61025

91674E0820

main91674-E0820

17 parts on this diagram · 3 diagrams in section
