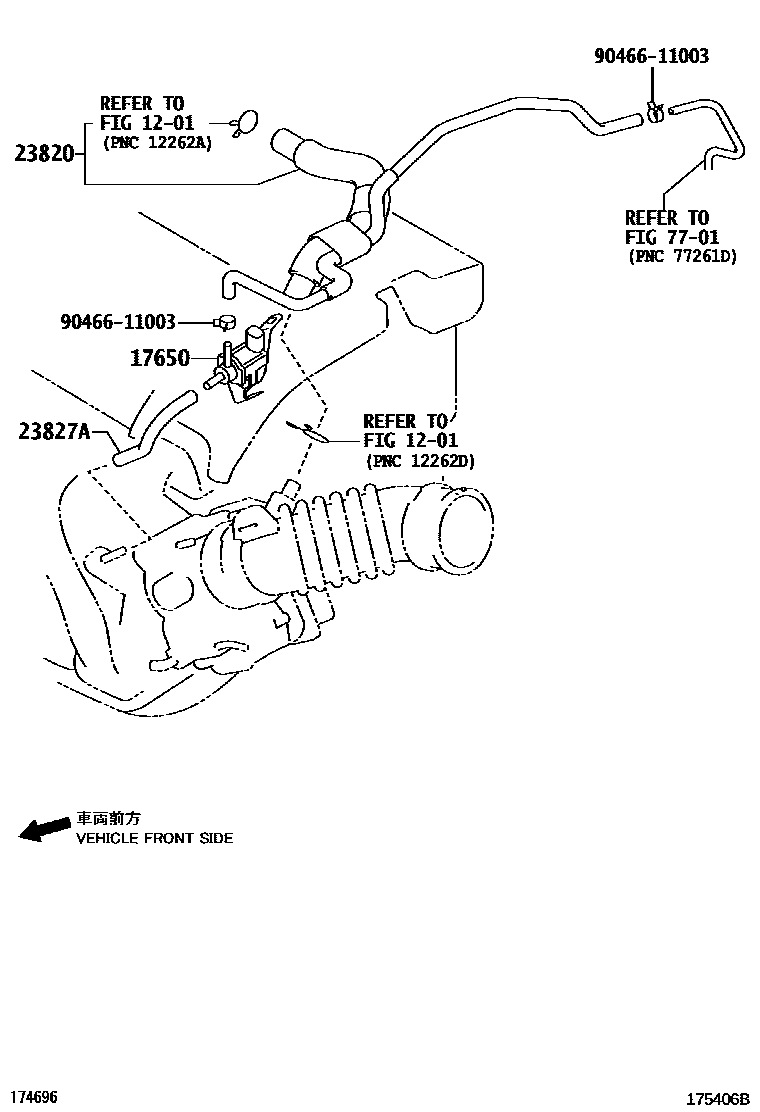

VACUUM PIPING

1201

17650VALVE ASSY, VACUUM SWITCHING

main25860-21070i1NZFE,2NZFE..NCP9#..MA,PH,VN200702-201004

23820HOSE ASSY, FUEL VAPOR FEED

main23820-0M011i1NZFE,2NZFE..NCP9#..MA,PH,VN200702-201004

(L)

main23820-21100i1NZFE,2NZFE..NCP9#..MA,PH,VN200702-201004

(J)

sub23820-21101

23827AHOSE, FUEL VAPOR FEED, NO.2

main95328-07017i1NZFE,2NZFE..NCP9#201003-201403

7701

9046611003

main90466-11003

6 parts on this diagram · 1 diagram in section
