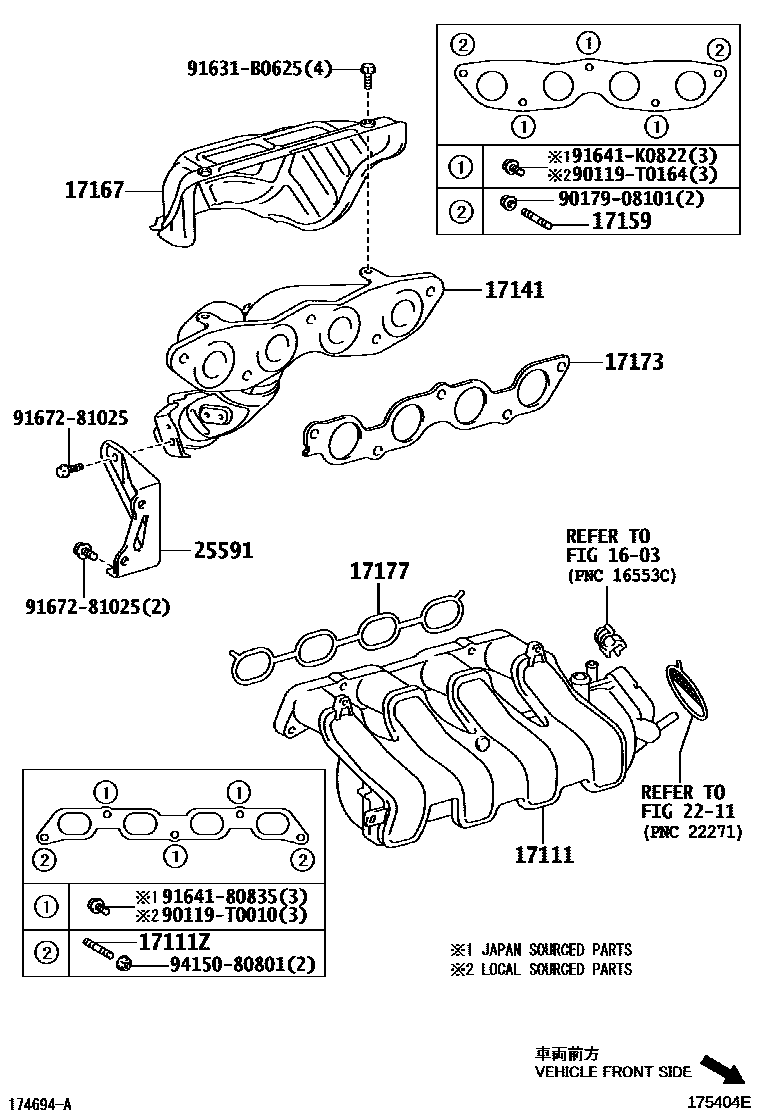

MANIFOLD
1603
17111MANIFOLD, INTAKE
(L)
(J)
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
(J)
(L)
17141MANIFOLD, EXHAUST
(L)
(J)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
2211
25591BRACKET, MANIFOLD SUPPORT
(L)
(J)
90119T0010
main90119-T0010
90119T0164
main90119-T0164
9017908101
main90179-08101
91631B0625
main91631-B0625
9164180835
main91641-80835
91641K0822
main91641-K0822
9167281025
main91672-81025
9415080801
main94150-80801
18 parts on this diagram · 2 diagrams in section
