CRANKSHAFT & PISTON

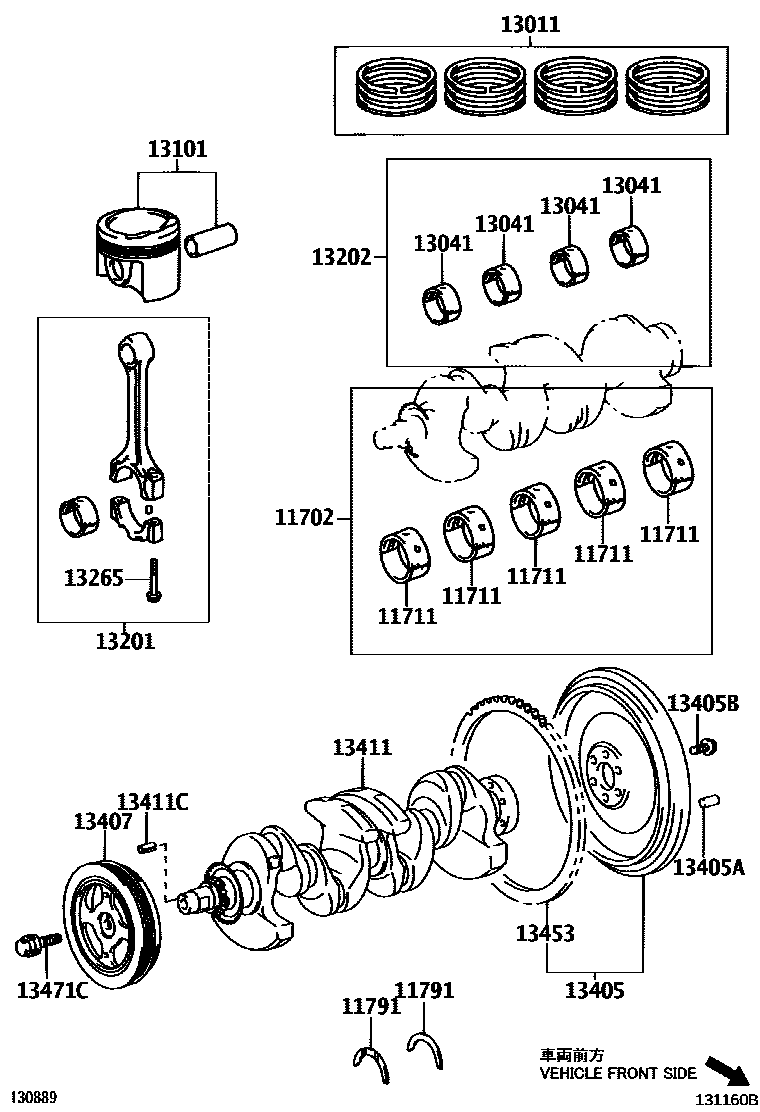

Parts diagram

11702BEARING SET, CRANKSHAFT

main11704-21020i200702-201003

U/S 0.25

main11704-21031i200708-201004

U/S 0.25

11711BEARING, CRANKSHAFT

main11701-0M020-01×5i200702-201003

MARK1,(L):REFER R/M

main11701-0M020-02×5i201003-201311

MARK2,(L):REFER R/M

main11701-0M020-03×5i201003-201311

MARK3,(L):REFER R/M

main11701-0M020-04×5i201003-201311

MARK4,(L):REFER R/M

main11701-0M030-01×5i201311-201401

MARK 1,(L):REFER R/M

main11701-0M030-02×5i201311-201401

MARK 2,(L):REFER R/M

main11701-0M030-03×5i201311-201401

MARK 3,(L):REFER R/M

main11701-0M030-04×5i201311-201401

MARK 4,(L):REFER R/M

main11701-21020-01×5i200702-201003

MARK 1,(J):REFER R/M

main11701-21020-02×5i200702-201003

MARK 2,(J):REFER R/M

main11701-21020-03×5i201003-201401

MARK 3,(J):REFER R/M

main11701-21020-04×5i200702-201003

MARK 4,(J):REFER R/M

main11701-21031-01×5i200708-201004

MARK1,REFER REPAIR MANUAL

main11701-21031-02×5i200708-201004

MARK2,REFER REPAIR MANUAL

main11701-21031-03×5i201004-201307

MARK3,REFER REPAIR MANUAL

main11701-21031-04×5i201004-201307

MARK4,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-0M020×2i201003-201403

STD,(L)

main11791-22020×2i200702-201004

STD,(J)

main11791-37010×2i201003-201310

STD,(J)

main11792-22020×2i201003-201403

O/S 0.125

main11793-22020×2i200702-201003

O/S 0.25

13011RING SET, PISTON

main13011-0M010supersedes 13011-0M020i200911-201004

STD,(L)

main13011-0M020i200803-201003

STD

main13011-21041i200702-200803

STD,(J)

main13011-21050i200708-201004

STD

13041BEARING, CONNECTING ROD

main13041-0M011-01×4i200702-201003

MARK1,(L):REFER R/M

main13041-0M011-02×4i200702-201003

MARK2,(L):REFER R/M

main13041-0M011-03×4i200702-201003

MARK3,(L):REFER R/M

main13041-21022-01×4i200702-201004

MARK1,(J):REFER R/M

main13041-21022-02×4i200702-201003

MARK2,(J):REFER R/M

main13041-21022-03×4i201003-201308

MARK3,(J):REFER R/M

main13041-21033-01×4i201308-201401

MARK 1,(J):REFER R/M

main13041-21033-02×4i201308-201401

MARK 2,(J):REFER R/M

main13041-21033-03×4i201308-201401

MARK 3,(J):REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-0M030×4i200702-200803

STD,(L)

main13101-0M040×4i200803-200911

STD

main13101-21070×4supersedes 13101-0M040i200911-201003

STD,(J)

main13101-21080×4i200708-201004

STD

13201ROD SUB-ASSY, CONNECTING

main13201-29715×4i201004-201307

main13201-29735×4i201003-201308

main13201-29736×4i201308-201401

13202BEARING SET, CONNECTING ROD

main13204-21022i200702-201003

U/S 0.25

main13204-21033i201308-201403

U/S 0.25

13265BOLT, CONNECTING ROD

main13265-21020×8i200702-201003

13405FLYWHEEL SUB-ASSY

main13405-0M010i200702-201003

(L)

main13405-21020i200708-201004

main13405-21030i201003-201403

(J)

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i201004-201307

L=18,OD=8

main90250-T0007×3i201003-201403

L=18,OD=8,(L)

13405BBOLT, FLYWHEEL SETTING

main90913-01024×6i200702-201004

(J)

main90913-T1001×6i200702-201003

(L)

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21031i200702-201004

main13407-21032i201205-201403

13411CRANKSHAFT

main13401-21020i200702-201004

main13401-21030i200708-201004

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90254-03025i200702-201003

13453GEAR, FLYWHEEL RING

main13453-0M010i200702-201003

(L)

main13453-10010i200702-201003

(J)

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i200702-201003

17 parts on this diagram · 1 diagram in section
