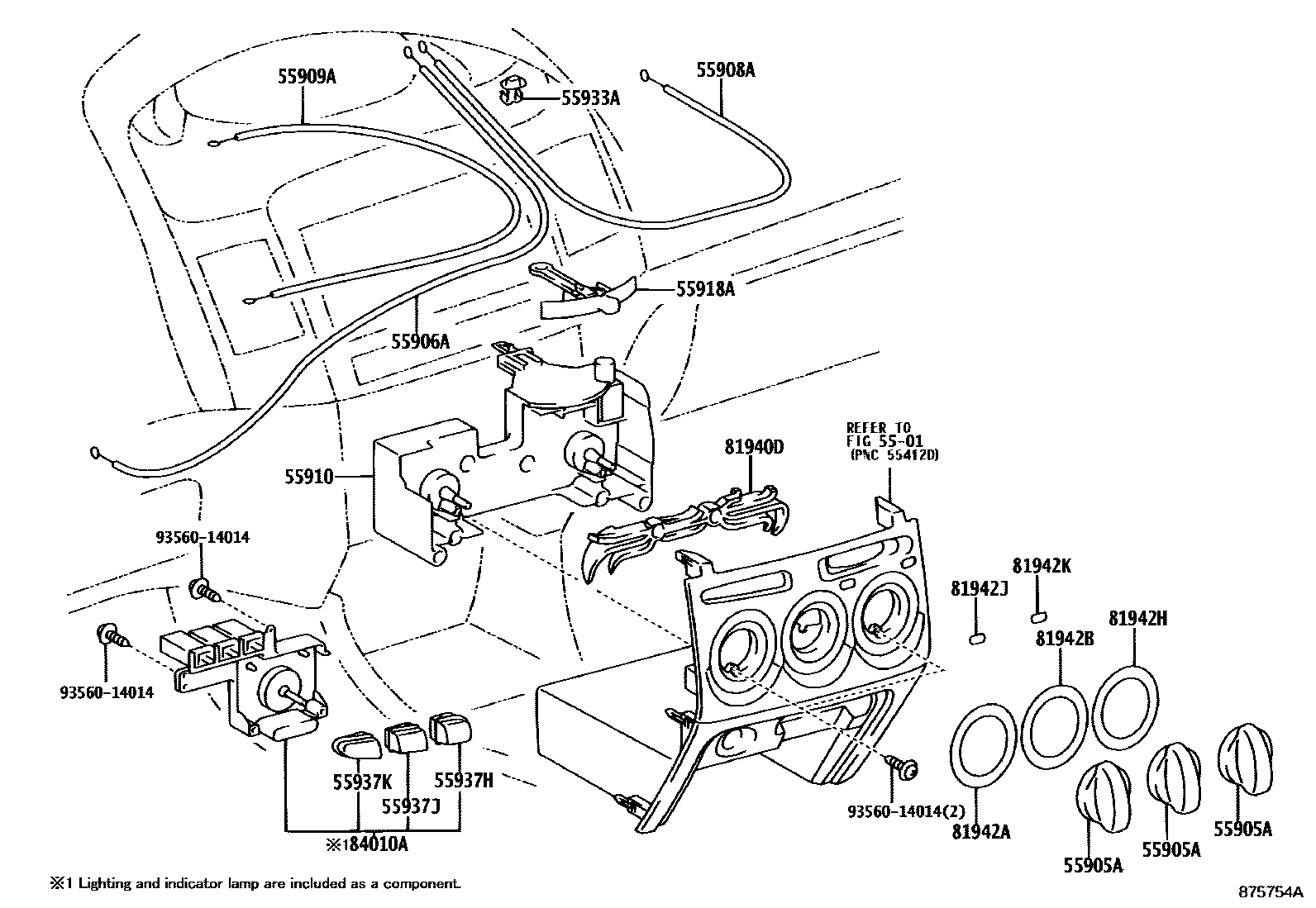

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501
55905AKNOB, HEATER CONTROL
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
55918ALEVER, AIR INLET DAMPER CONTROL
55933ACLAMP, HEATER CONTROL CABLE
55937HKNOB, CENTER CLUSTER MODULE, NO.5
55937JKNOB, CENTER CLUSTER MODULE, NO.6
55937KKNOB, CENTER CLUSTER MODULE, NO.7
81940DLENS ASSY, HEATER CONTROL
81942ASHEET, HEATER CONTROL NAME, NO.1
81942BSHEET, HEATER CONTROL NAME, NO.2
BLACK PANEL OR WOOD GRAIN PANEL
WOOD GRAIN PANEL
SILVER PANEL
81942HSHEET, HEATER CONTROL NAME, NO.3
BLACK PANEL OR WOOD GRAIN PANEL
WOOD GRAIN PANEL
SILVER PANEL
81942JSHEET, HEATER CONTROL NAME, NO.4
BLACK PANEL OR WOOD GRAIN PANEL
81942KSHEET, HEATER CONTROL NAME, NO.5
BLACK PANEL OR WOOD GRAIN PANEL
WOOD GRAIN PANEL
SILVER PANEL
84010ACONTROL & PANEL ASSY, INTEGRATION
9356014014
main93560-14014
19 parts on this diagram · 7 diagrams in section
