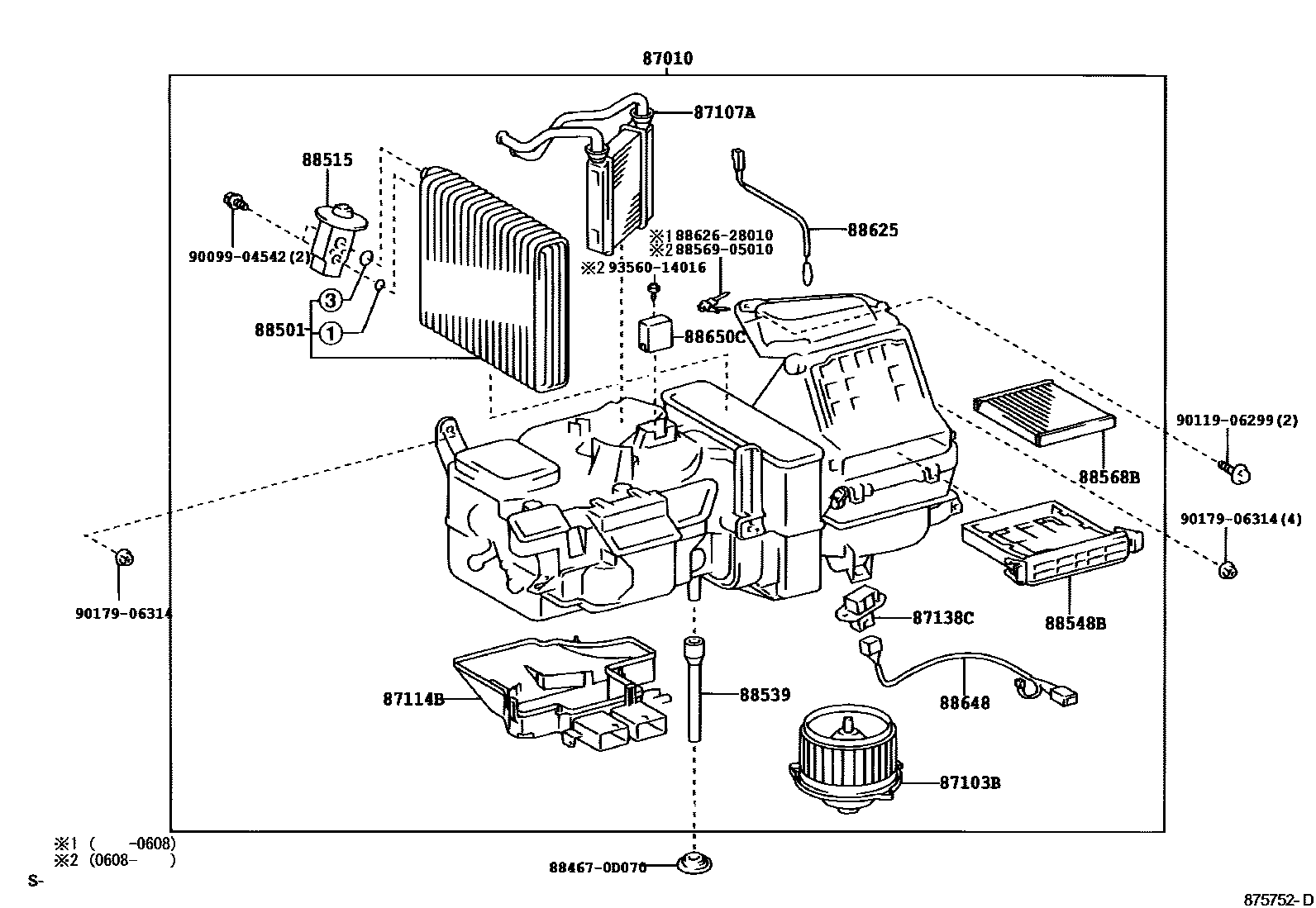

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1O-RING

87010UNIT ASSY, AIR CONDITIONER

main87010-0D070iAXP4#..DLX,DLXI,GL,GLI,GLXI200211-200312

main87010-0D130iNCP42..MA200305-200708

main87010-0D140iNCP4#..PHL200305-200702

main87010-0D150iAXP4#200210-200211

main87010-0D160iAXP4#200210-200211

COLD SPEC

main87010-0D170iNCP42..TAIW,VN200303-200807

main87010-0D171iNCP42200807-201007

main87010-0D172iNCP42201008

main87010-0D180iNCP42..TH200212-200702

main87010-0D200iAXP4#..DLX,DLXI,GL,GLI,GLXI200211-200312

COLD SPEC

main87010-0D210iNCP42..TAIW200310-200510

main87010-0D220iAXP4#200312-200511

main87010-0D230iAXP4#200312-200608

COLD SPEC

main87010-0D390iSCP4#200608

main87010-0D400iSCP4#200608

COLD SPEC

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0D040iAXP4#200210-200211

main87103-0D050iNCP42..TAIW,VN200303-200807

main87103-0D060iNCP42..TH200212-200702

main87103-0D070iNCP42..MA200305-200708

main87103-0D080iNCP4#..PHL200305-200702

main87103-0D090iAXP4#200211-200608

main87103-0D190iNCP42200807-201008

main87103-0D240iNCP42201008-201011

main87103-0D241iNCP42201012

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0D060iAXP4#200210-200608

main87107-0D070iNCP42..TAIW,VN200303-200603

87114BCOVER, HEATER

main87114-0D040iAXP4#200210-200608

COLD SPEC

main87114-0D050iSCP4#200210-200511

87138CRESISTOR, BLOWER

main87138-0D020iAXP4#200210-200608

main87138-0D030iNCP42..TAIW,VN200303-200603

main87138-0D040iNCP4#..PHL200305-200702

main87138-0D050iNCP42..MA200305-200708

main87138-52010iNCP42..TH200212-200702

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0D030iAXP4#..DLX,DLXI,GL,GLI,GLXI200210-200312

main88501-0D040iNCP42..TAIW,VN200303-200607

main88501-0D050iNCP42..TH200212-200702

main88501-0D060iNCP42..MA200305-200708

main88501-0D070iNCP4#..PHL200305-200510

main88501-0D090iAXP4#200312-200608

88515VALVE, COOLER EXPANSION

main88515-0D020iAXP4#200211-200401

main88515-0D021iAXP4#200402-200608

main88515-0D030iNCP42..TAIW,VN200303-200401

main88515-0D031iNCP42..TAIW,VN200402-200603

main88515-0D040iNCP4#..PHL,TH200212-200401

main88515-0D041iNCP4#..PHL,TH200402-200702

main88515-0D050iNCP42..MA200305-200401

main88515-0D051iNCP42..MA200402-200708

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0D020iAXP4#200210-200608

main88539-0D021iSCP4#200608

main88539-0D030iNCP42..TAIW,VN200303-200603

main88539-0D040iNCP4#..PHL,TH200212-200702

main88539-0D050iNCP42..MA200305-200708

88548BCASE, AIR FILTER

main88548-0D030iSCP4#200211-200608

88568BFILTER, AIR

main88568-0D020iAXP4#..DLX,DLXI,GL,GLI,GLXI200211-200312

main88568-0D040iAXP4#200312-200608

88625THERMISTOR, COOLER, NO.1

main88620-0D010iNCP42200807

main88625-0D030iAXP4#200210-200702

main88625-0D040iNCP42..TAIW,VN200303-200807

main88625-0D050iNCP4#..PHL200305-200702

main88625-0D060iNCP42..MA200305-200708

main88625-0D090iSCP4#200608

88648WIRING, COOLER, NO.1

main88648-0D060iAXP4#200210-200608

main88648-0D080iNCP42..TAIW,VN200303-201008

main88648-0D090iNCP4#..PHL200305-200702

main88648-0D110iNCP42201008

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-0D080iAXP4#200210-200608

main88650-0D210iSCP4#200608

884670D070CUSHION, COOLER CONDENSER, NO.1

main88467-0D070

8856905010CLAMP (FOR COOLER RELAY)

main88569-05010

8862628010CASE, BLOWER DRIVE SHAFT BEARING

main88626-28010

9009904542

main90099-04542

9011906299

main90119-06299

9017906314

main90179-06314

9356014016

main93560-14016

20 parts on this diagram · 4 diagrams in section
