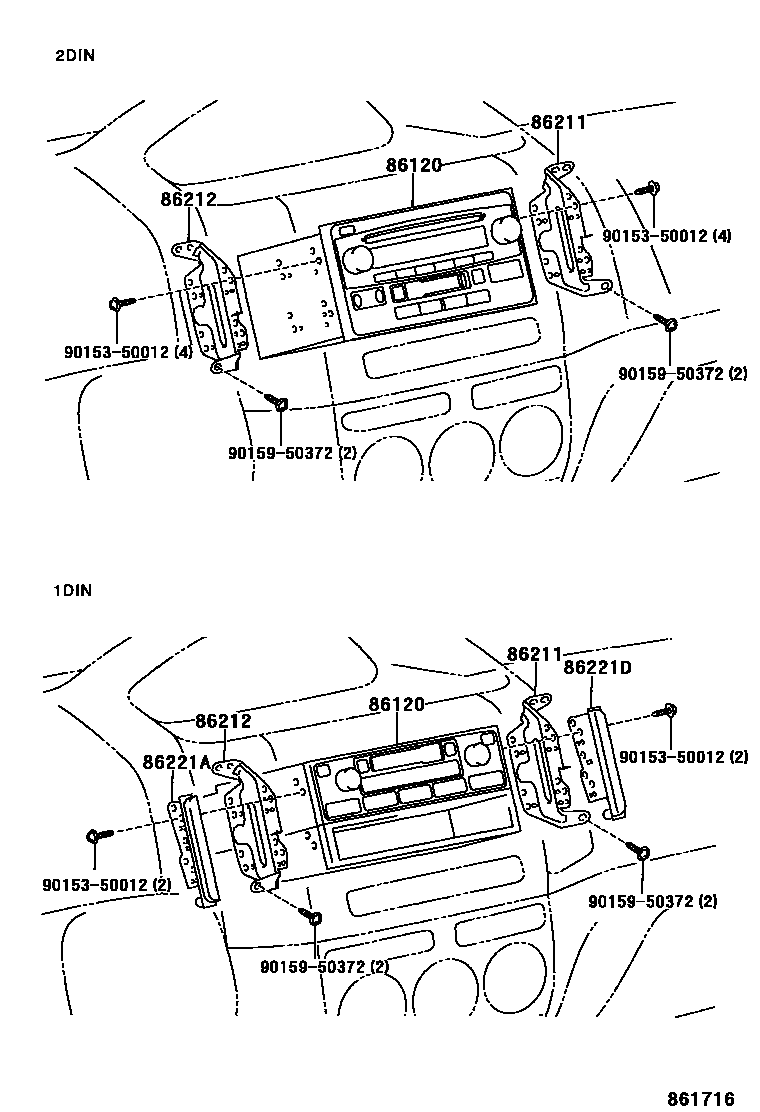

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1CONDENSER & NOISE FILTER

86120RECEIVER ASSY, RADIO

main86120-0D080iAXP41..GL200210-200511

FUJITSU TEN,ID=17415,TYPE A:REFER TO ILLUSTRATION

main86120-0D090iSCP42..GLI200608-200707

FUJITSU TEN,ID=17813,TYPE B:REFER ILLUST.

main86120-0D090iAXP41..GL200210-200608

FUJITSU TEN,ID=17813,TYPE B:REFER TO ILLUSTRATION

main86120-0D110iNCP42..15G..TAIW200303-200510

MATSUSHITA,TYPE B:REFER TO ILLUSTRATION

main86120-0D120iNCP42..15S200212-200510

FUJITSU TEN,ID=17816,TYPE C:REFER TO ILLUSTRATION

main86120-0D150iNCP42..15J..TH200212-200510

FUJITSU TEN,ID=17418,TYPE A:REFER TO ILLUSTRATION

main86120-0D160iNCP42..15E..TH;NCP42..ATM..15S200212-200510

FUJITSU TEN,ID=17417,TYPE D:REFER TO ILLUSTRATION

main86120-0D170iNCP42..15G..TAIW200303-200510

MATSUSHITA,TYPE E:REFER TO ILLUSTRATION

main86120-0D230iAXP42..GLS,GLXI200511-200608

MATSUSHITA,ID=57820,TYPE B:REFER TO ILLUSTRATION

main86120-0D230iSCP42..GLS,GLXI200608

MATSUSHITA,ID=57820,TYPE B:REFER ILLUST.

main86120-0D240iNCP42..15J201003-201110

PIONEER,ID=P2817

main86120-0D240iNCP42..15G..TAIW200510-201110

PIONEER,ID=P2817,TYPE E:REFER TO ILLUSTRATION

main86120-0D250iNCP42..ATM..15S200510-200702

FUJITSU TEN,ID=12832,TYPE E:REFER TO ILLUSTRATION

main86120-0D260iNCP42..VN200603-200709

MATSUSITA ID=57824,TYPE B:REFER TO ILLUSTRATION

main86120-0D270iNCP42..15G..TAIW200510-200709

MATSUSHITA,ID=57820,TYPE B:REFER TO ILLUSTRATION

main86120-0D280iAXP4#200511-200608

FUJITSU TEN,ID=12829,TYPE H:REFER TO ILLUSTRATION

sub86120-0D281

main86120-0D280iSCP42200608-200707

FUJITSU TEN,ID=12829,TYPE H:REFER ILLUST.

sub86120-0D281

main86120-0D290iAXP4#..15GLI,GL,GLS200511-200603

PIONEER,ID=P7861,TYPE B:REFER TO ILLUSTRATION

main86120-0D310iNCP42..15J..TAIW200510-201110

PIONEER,ID=P2819,TYPE E:REFER TO ILLUSTRATION

main86120-0D350iNCP42..(15E,15J)..TH200603-200702

FUJITSU TEN,ID=12838,TYPE E:REFER TO ILLUSTRATION

main86120-0K010iNCP42..MTM..15E200510-200702

FUJITSU TEN,ID=17420,TYPE G:REFER TO ILLUSTRATION

main86120-0K030iNCP42..(15E,15J)..TH200510-200602

FUJITSU TEN,ID=12803,TYPE E:REFER TO ILLUSTRATION

sub86120-0K410

main86120-0K140iNCP42..15S200510-200702

PIONEER,ID=P7836,TYPE B:REFER TO ILLUSTRATION

main86120-16690iNCP42..15J..TAIW200303-200510

***,MATSUSHITA,TYPE F:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-0D010iSCP4#200210-200608

main86211-0D020iNCP42..VN200303-200510

main86211-0D040iNCP4#..MA,PHL,TH200212-200709

86212BRACKET, RADIO, NO.2

main86212-0D010iAXP4#200210-200608

main86212-0D020iNCP42..VN200303-200510

main86212-0D040iNCP4#..MA,PHL,TH200212-200709

86221APANEL, RADIO RECEIVER

main86221-02010iNCP42..ATM..15S;NCP4#..(13E,13STD,15E,15G,15J)..(MA,PHL,TH)200212-200708

main86221-52050iAXP41..GL200210-200709

86221DPANEL, RADIO RECEIVER

main86221-02020iNCP42..ATM..15S;NCP4#..(13E,13STD,15E,15G,15J)..(MA,PHL,TH)200212-200708

main86221-52060iNCP42..VN200210-200709

9015350012

main90153-50012

9015950372

main90159-50372

7 parts on this diagram · 4 diagrams in section
