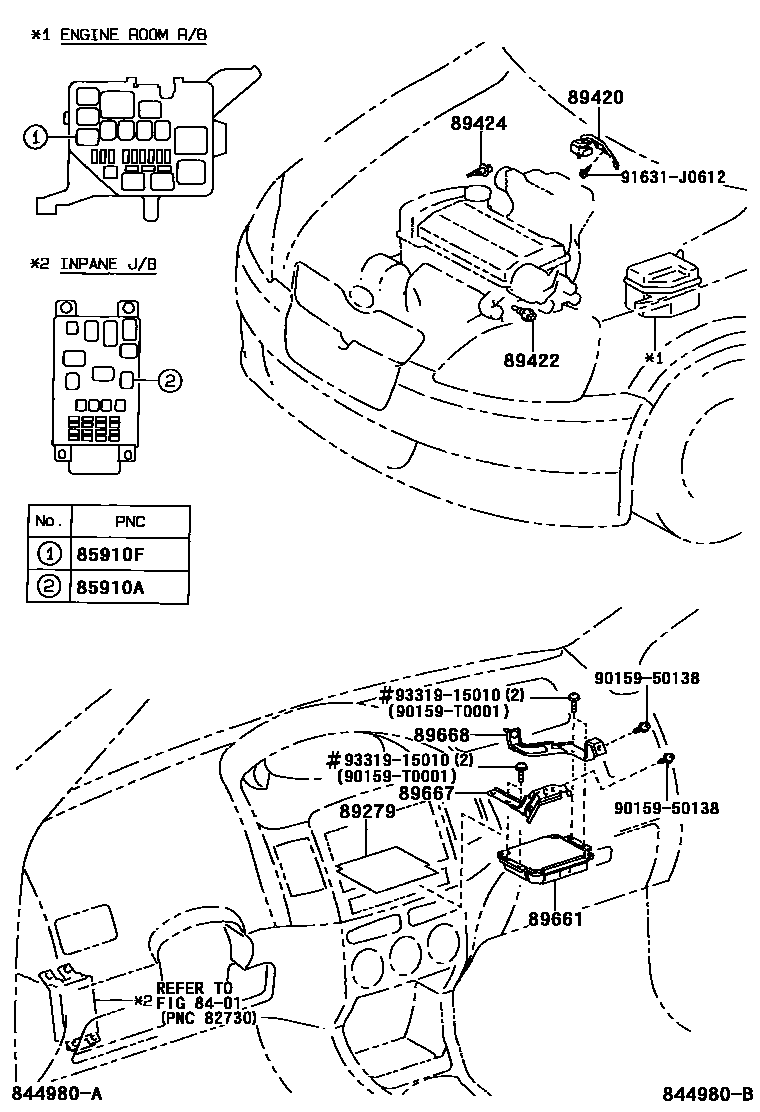

ELECTRONIC FUEL INJECTION SYSTEM
8401
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
(L)
(J)
(J)
85910FRELAY, COMPUTER (FOR EFI)
(L)
(J)
(J)
89279COVER, ENGINE CONTROL COMPUTER
89420SENSOR ASSY, VACUUM
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
DENSO
DENSO
NTC
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
P/N LABEL=896610D030
P/N LABEL=896610D040
P/N LABEL=896610D050
P/N LABEL=896610D060
P/N LABEL=896610D610
P/N LABEL=896610D620
P/N LABEL=896610D630
P/N LABEL=896610D640
P/N LABEL=896610D720
P/N LABEL=896610D730
P/N LABEL=896610D740
P/N LABEL=896610D750
P/N LABEL=896610D760
P/N LABEL=896610D770
P/N LABEL=896610D780
P/N LABEL=896610D790
P/N LABEL=896610D130
P/N LABEL=896610D150
P/N LABEL=896610D160
P/N LABEL=896610D230
P/N LABEL=896610D240
P/N LABEL=896610D250
P/N LABEL=896610DA71
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9015950138
main90159-50138
90159T0001
main90159-T0001
91631J0612
main91631-J0612
9331915010
main93319-15010
14 parts on this diagram · 4 diagrams in section
