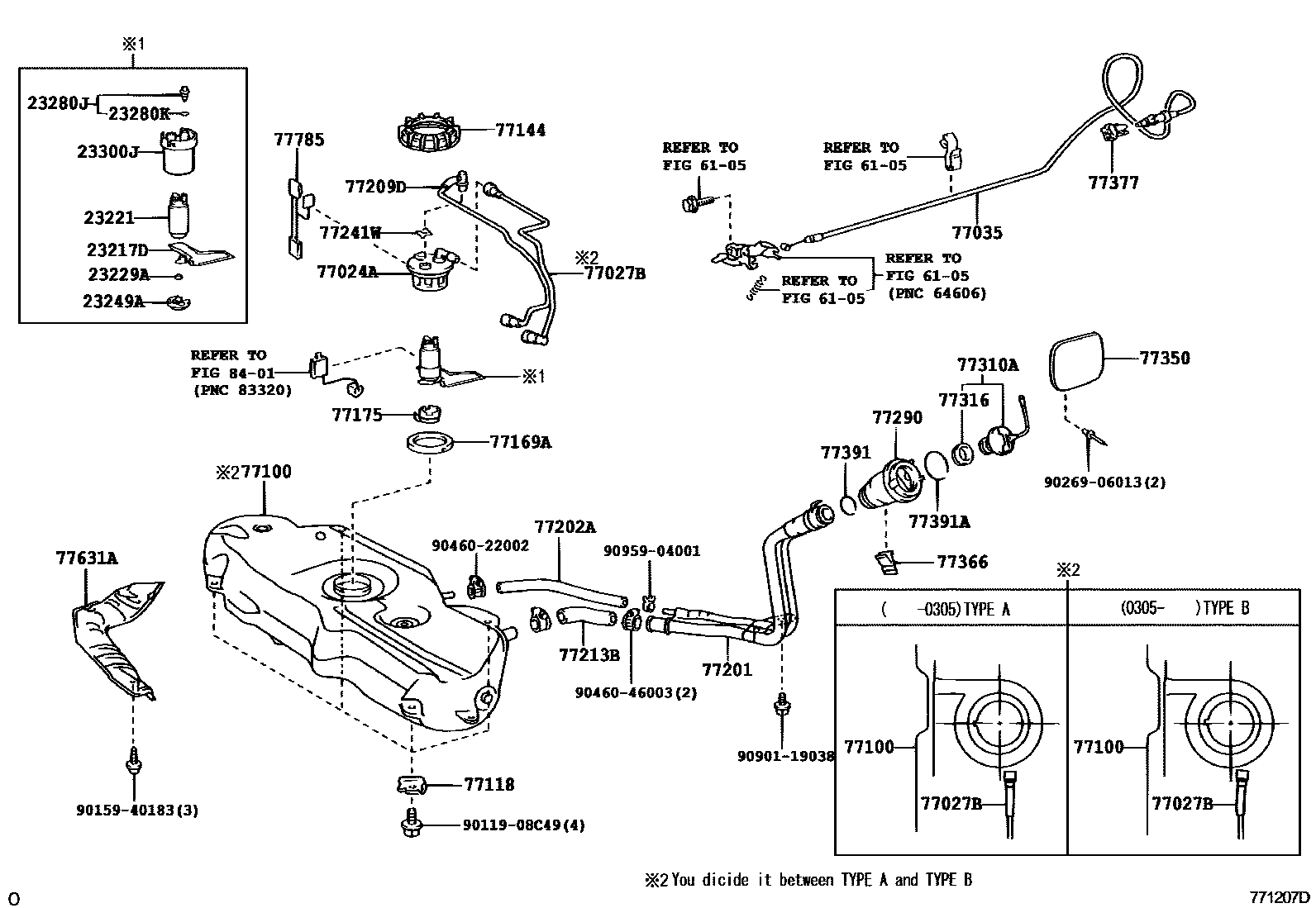

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23229ACLIP(FOR FUEL PUMP FILTER)
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23300JFILTER ASSY, FUEL
6105
77024APLATE SUB-ASSY, FUEL SUCTION
77027BTUBE SUB-ASSY, FUEL EMISSION, NO.1
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77118PLATE, FUEL PUMP CONNECTOR
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77241WCLIP, TUBE JOINT
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77316GASKET, FUEL TANK CAP
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77631APROTECTOR, FUEL TANK, LOWER CENTER
8401
9011908C49
main90119-08C49
9015940183
main90159-40183
9026906013
main90269-06013
9046022002
main90460-22002
9046046003
main90460-46003
9090119038
main90901-19038
9095904001
main90959-04001
39 parts on this diagram · 6 diagrams in section
