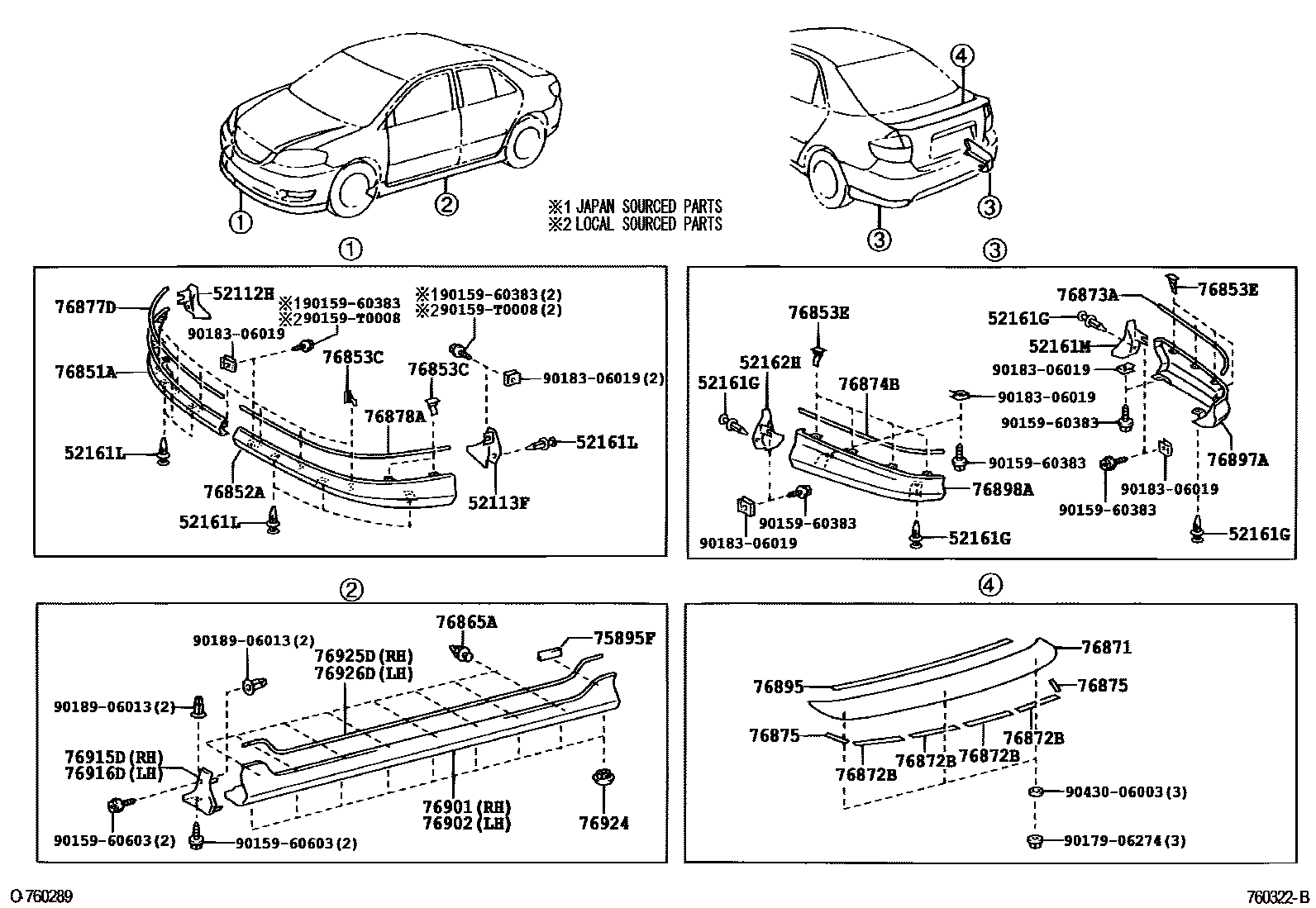

MUDGUARD & SPOILER
52112HEXTENSION, FRONT BUMPER, RH
52113FEXTENSION, FRONT BUMPER, LH
52161GPIECE, REAR BUMPER
52161LPIECE, FRONT SPOILER
52161MEXTENSION, REAR BUMPER SIDE, RH
52162HEXTENSION, REAR BUMPER SIDE, LH
75895FTAPE, MOULDING, NO.1
76853CRETAINER, FRONT SPOILER, NO.1
76853ERETAINER, REAR SPOILER, NO.1
76865ARETAINER, SIDE MUDGUARD
76871SPOILER, REAR
SUPER WHITE 2,040
BLACK MC.,209
PAINT REQ.
76872BPROTECTOR, REAR SPOILER, CENTER
76873APROTECTOR, REAR SPOILER, RH
GRAY,050 ,1D0 ,3E5 ,3L1 ,586 ,8N8 ,933
GRAY,056 ,1C0 ,1C6 ,3P1 ,586 ,8P4
GRAY,056 ,3P1 ,8P4
GRAY,040 ,1C0 ,209 ,3P1 ,586 ,6R4 ,761
GRAY,056 ,1C0 ,3P1 ,585 ,8B6
GRAY,1D0 ,1D4 ,1F8 ,209 ,3N8 ,3P0 ,4R0 ,586 ,8N8
GRAY,040 ,209
GRAY,056 ,1C0 ,3P1 ,585 ,586 ,8B6
76874BPROTECTOR, REAR SPOILER, LH
GRAY,056 ,3P1 ,8P4
GRAY,056 ,1C0 ,1C6 ,3P1 ,586 ,8P4
GRAY,050 ,1D0 ,3E5 ,3L1 ,586 ,8N8 ,933
GRAY,040 ,1C0 ,209 ,3P1 ,586 ,6R4 ,761
GRAY,056 ,1C0 ,3P1 ,585 ,8B6
GRAY,1D0 ,1D4 ,1F8 ,209 ,3N8 ,3P0 ,4R0 ,586 ,8N8
GRAY,040 ,209
GRAY,056 ,1C0 ,3P1 ,585 ,586 ,8B6
76875PROTECTOR, REAR SPOILER, NO.4
76877DPROTECTOR, FRONT SPOILER SIDE, RH
GRAY,056 ,1C0 ,1C6 ,3P1 ,586 ,8P4
GRAY,056 ,3P1 ,8P4
GRAY,050 ,1D0 ,3E5 ,3L1 ,586 ,8N8 ,933
GRAY,040 ,1C0 ,209 ,3P1 ,586 ,6R4 ,761
GRAY,056 ,1C0 ,3P1 ,585 ,8B6 ,8Q1
GRAY,1D0 ,1D4 ,1F8 ,209 ,3N8 ,3P0 ,4R0 ,586 ,8N8
GRAY,040 ,209
GRAY,056 ,1C0 ,3P1 ,585 ,586 ,8B6
76878APROTECTOR, FRONT SPOILER SIDE, LH
GRAY,050 ,1D0 ,3E5 ,3L1 ,586 ,8N8 ,933
GRAY,056 ,1C0 ,1C6 ,3P1 ,586 ,8P4
GRAY,056 ,3P1 ,8P4
GRAY,040 ,1C0 ,209 ,3P1 ,586 ,6R4 ,761
GRAY,1D0 ,1D4 ,1F8 ,209 ,3N8 ,3P0 ,4R0 ,586 ,8N8
GRAY,040 ,209
GRAY,056 ,1C0 ,3P1 ,585 ,586 ,8B6
GRAY,056 ,1C0 ,3P1 ,585 ,8B6 ,8Q1
76895PROTECTOR, REAR SPOILER, NO.5
76915DMUDGUARD, SIDE, FRONT RH
76916DMUDGUARD, SIDE, FRONT LH
76924RETAINER, SIDE MUDGUARD, NO.2
76925DPROTECTOR, SIDE MUDGUARD, RH
GRAY,056 ,1C0 ,3P1 ,585 ,8B6 ,8Q1
GRAY,056 ,1C0 ,1C6 ,3P1 ,586 ,8P4
GRAY,056 ,3P1 ,8P4
GRAY,050 ,1D0 ,3L1 ,586 ,8N8 ,933
GRAY,040 ,1C0 ,3P1 ,586 ,6R4 ,761
GRAY,050 ,1D0 ,3E5 ,3L1 ,586 ,8N8 ,933
GRAY,040 ,1C0 ,209 ,3P1 ,586 ,6R4 ,761
GRAY,1D0 ,1D4 ,1F8 ,209 ,3N8 ,3P0 ,4R0 ,586 ,8N8
GRAY,040 ,209
GRAY,056 ,1C0 ,3P1 ,585 ,586 ,8B6
76926DPROTECTOR, SIDE MUDGUARD, LH
GRAY,056 ,1C0 ,1C6 ,3P1 ,586 ,8P4
GRAY,056 ,3P1 ,8P4
GRAY,050 ,1D0 ,3L1 ,586 ,8N8 ,933
GRAY,040 ,1C0 ,3P1 ,586 ,6R4 ,761
GRAY,050 ,1D0 ,3E5 ,3L1 ,586 ,8N8 ,933
GRAY,040 ,1C0 ,209 ,3P1 ,586 ,6R4 ,761
GRAY,056 ,1C0 ,3P1 ,585 ,8B6 ,8Q1
GRAY,1D0 ,1D4 ,1F8 ,209 ,3N8 ,3P0 ,4R0 ,586 ,8N8
GRAY,056 ,1C0 ,3P1 ,585 ,586 ,8B6
GRAY,040 ,209
9015960383
9015960603
90159T0008
main90159-T0008
9017906274
9018306019
9018906013
9043006003
36 parts on this diagram · 3 diagrams in section
