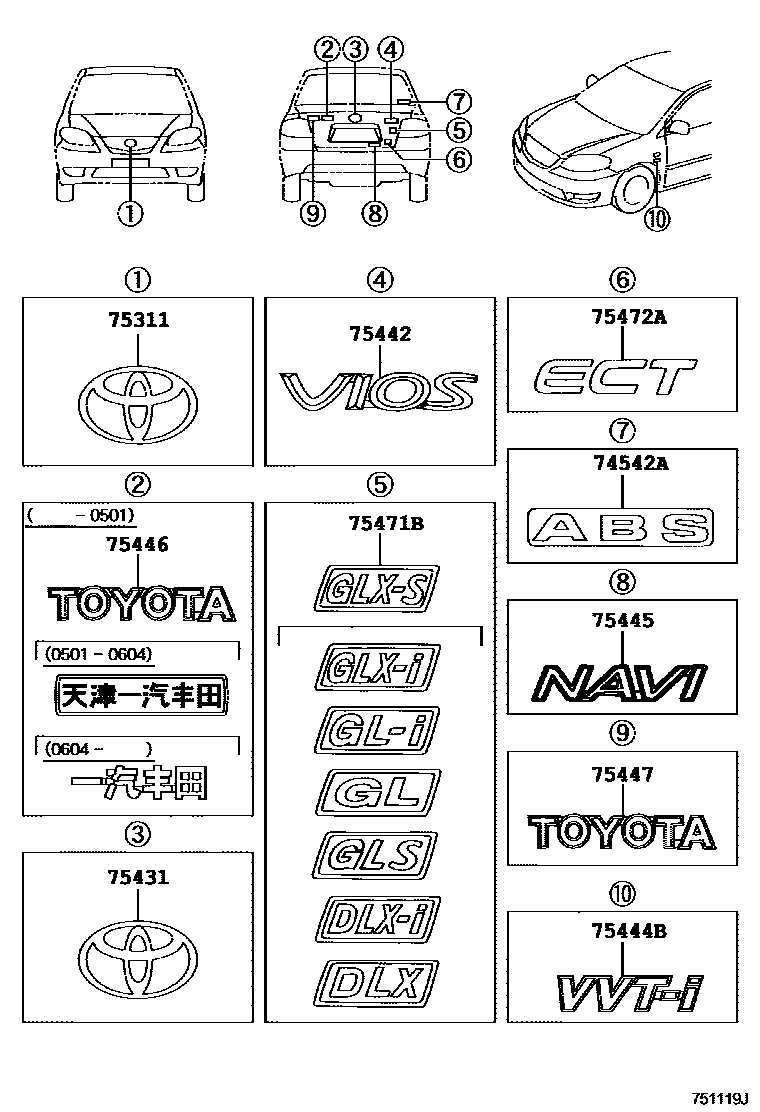

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
74542APLATE, REAR WINDOW MARK
ABS
ABS
75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
PNC 53101 = TYPE A:REFER TO FIG.53-01
PNC 53101 = TYPE B:REFER TO FIG.53-01
75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
VIOS
VIOS
75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
SOLUNA
75445PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5
LIMO
NAVI
75447PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.7
75472APLATE, REAR BODY NAME, NO.2
ECT
11 parts on this diagram · 2 diagrams in section
