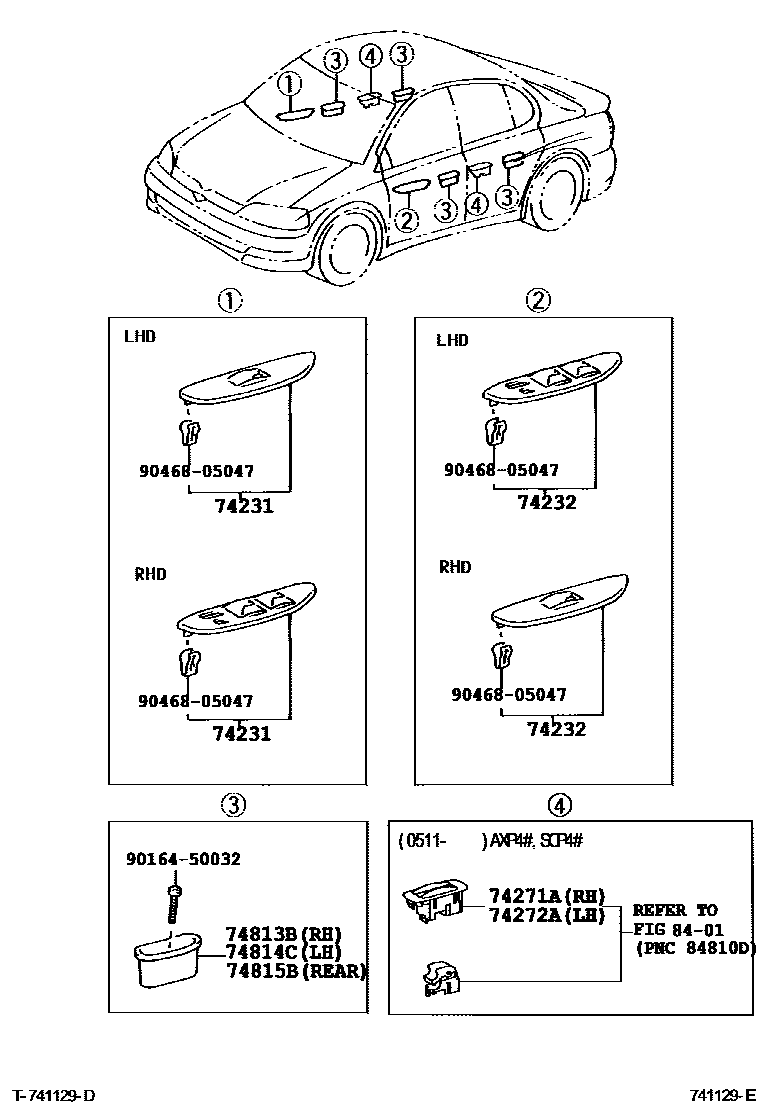

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0D010iAXP4#..DLX,DLXI,GL,GLI200210-200603

main74231-0D030iNCP42..VN200303-201309

main74231-0D040iAXP42..GLI,GLXI200210-200511

WOODEN PANEL

main74231-0D050iNCP42..15J..TH200212-200702

main74231-0D060iNCP42..RHD..(15G,15S)200212-200512

main74231-0D060iNCP42..RHD..(15G,15S)200510-200708

METALLIC PAINTED

main74231-0D070iNCP42..ATM..(15E,15S)..TH200311-200708

WOODEN PANEL

main74231-0D100iNCP42..(15E,15G)..(PHL,TAIW)200510-201303

METALLIC PAINTED

main74231-0D100iNCP42..(15E,15G)..(PHL,TAIW)200303-200709

main74231-0D120iAXP42..GLXI200511-200608

main74231-0D130iAXP41200511-200608

main74231-0D140iNCP42..(15E,15G)..TAIW200510-201110

WOODEN PANEL

main74231-0D790iNCP42..15E201303-201309

TITANIUM TYPE PANEL

main74232-0D060iNCP42..VN200404-200603

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0D010iAXP41200210-200603

main74232-0D030iNCP42..VN200305-201309

main74232-0D040iAXP42..GLI,GLXI200210-200511

WOODEN PANEL

main74232-0D050iNCP42..15J..TAIW200303-200710

main74232-0D060iNCP42..15J..TH200212-200702

main74232-0D070iNCP42..RHD..(15G,15S)200212-200512

main74232-0D070iNCP42..RHD..(15G,15S)200510-200708

METALLIC PAINTED

main74232-0D080iNCP42..ATM..(15E,15S)..TH200311-200708

WOODEN PANEL

main74232-0D100iNCP42..15J200510-201303

METALLIC PAINTED

main74232-0D100iNCP42..VN200303-200709

main74232-0D130iSCP42..GLXI200511-200608

main74232-0D140iAXP42..15GLI,GLS200511-200608

main74232-0D180iNCP42..15J200510-201110

WOODEN PANEL

main74232-0D740iNCP42..15E201303-201309

TITANIUM TYPE PANEL

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main84656-0D010iAXP41200511-200603

main84656-0D020iAXP42..GLXI200511-200608

main84656-0D030iAXP42..15GLI,GLS200511-200608

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main84656-0D010iAXP41200511-200603

main84656-0D020iSCP42..GLXI200511-200608

main84656-0D030iAXP41200511-200608

74813BHANDLE, FRONT DOOR PULL, RH

main74811-0D020-B0iAXP42..15GLI,GLS200511-200608

DK.GRAY,TRIM1#

main74811-0D020-E0iAXP4#..15GLI,GL,GLXI200210-200608

DK.BROWN,TRIM0#

main74811-0D030-A0iNCP42..ATM..(15E,15S)..TH200212-200708

IVORY,TRIM0#

main74811-0D030-B0iNCP4#200212-201309

DK.GRAY,TRIM1#

main74811-0D030-E0iNCP42..(15E,15G)..TAIW200303-201303

DK.BROWN,TRIM0#

74814CHANDLE, FRONT DOOR PULL, LH

main74811-0D020-B0iAXP42..15GLI,GLS200511-200608

DK.GRAY,TRIM1#

main74811-0D020-E0iSCP4#..GL,GLI,GLXI200210-200608

DK.BROWN,TRIM0#

main74811-0D030-A0iNCP42..ATM..(15E,15S)..TH200212-200708

IVORY,TRIM0#

main74811-0D030-B0iNCP42..15E..(TAIW,TH);NCP4#..13E,13STD,15G,15J,15S200212-201309

DK.GRAY,TRIM1#

main74811-0D030-E0iNCP42..TAIW200303-201303

DK.BROWN,TRIM0#

74815BHANDLE, REAR DOOR PULL

main74811-0D020-B0iSCP42..GLI,GLS200511-200608

DK.GRAY,TRIM1#

main74811-0D020-E0iAXP4#..15GLI,GL,GLXI200210-200608

DK.BROWN,TRIM0#

main74811-0D030-A0iNCP42..ATM..(15E,15S)..TH200212-200708

IVORY,TRIM0#

main74811-0D030-B0iNCP42..15E..(TAIW,TH);NCP4#..13E,13STD,15G,15J,15S200212-201309

DK.GRAY,TRIM1#

main74811-0D030-E0iNCP42..TAIW200303-201303

DK.BROWN,TRIM0#

8401

9016450032

main90164-50032¥90

9046805047

main90468-05047¥90

10 parts on this diagram · 2 diagrams in section
