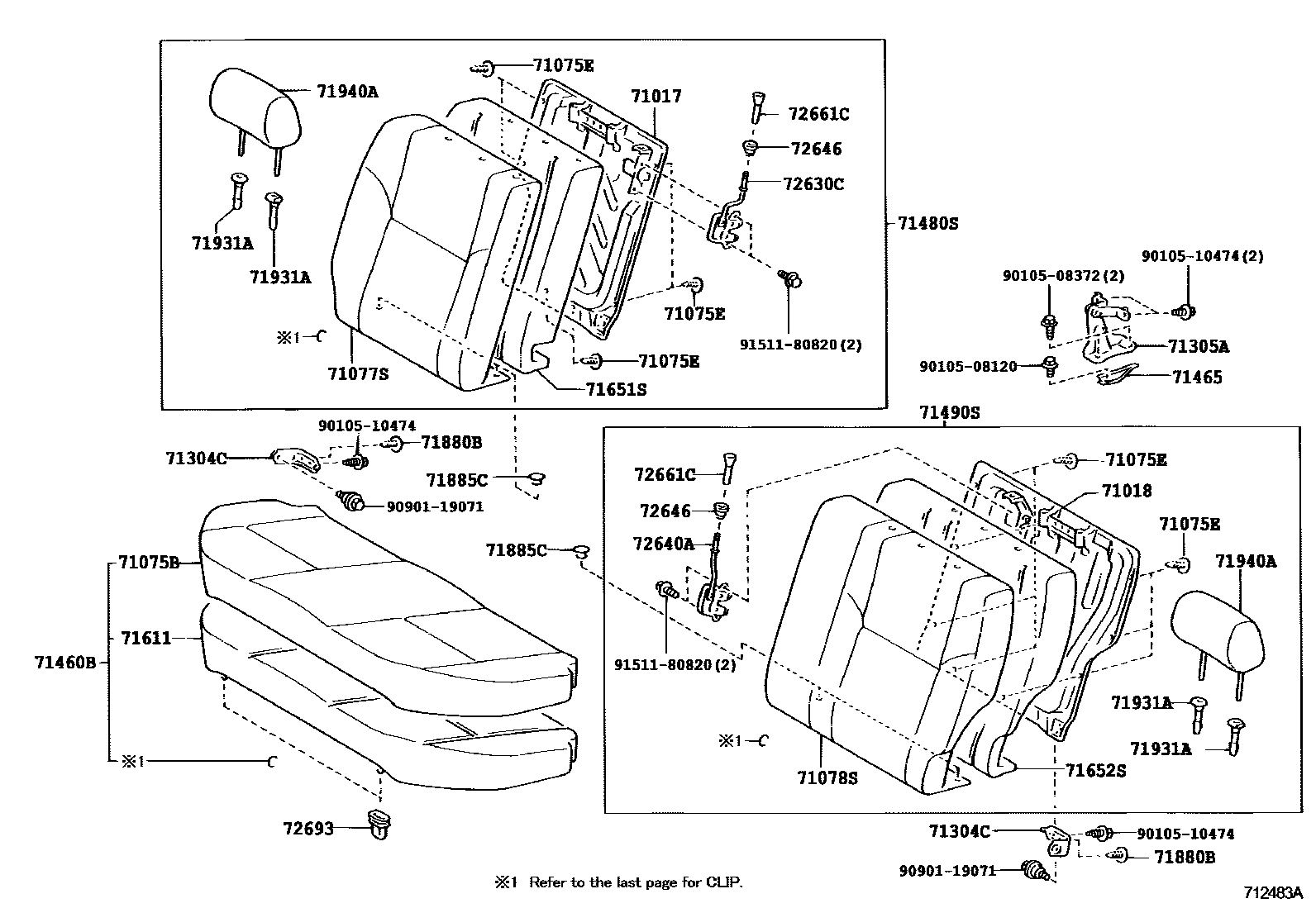

REAR SEAT & SEAT TRACK

0001 1 0002 1 0004 1 0007 1CLIP

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-0D010iAXP4#200210-200511

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-0D010iAXP4#200210-200511

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0D010-A2iAXP4#..DLX,DLXI200210-200511

IVORY,TRIM0#

main71075-0D020-A0iAXP4#..GL,GLI200210-200511

IVORY,TRIM0#

main71075-0D030-A1iAXP42..GLI,GLXI200210-200511

LEATHER SEAT,IVORY,TRIM0#

main71075-0D050-A2iNCP42..(15E,15G)..TAIW200303-200510

SEAT = TYPE A-*104,IVORY,TRIM0#

main71075-0D050-B1iNCP42..15G..TAIW200409-200510

SEAT = TYPE B-*104,DK.GRAY,TRIM13

main71075-0D050-B2iNCP42..15G..TAIW200409-200510

SEAT = TYPE A-*104,MD.GRAY,TRIM13

main71075-0D050-E0iNCP42..(15E,15G)..TAIW200303-200409

SEAT = TYPE A-*104,TAN,TRIM1#

main71075-0D060-B2iNCP4#..(13E,13STD,15J)..(PHL,TH)200212-200403

STONE,TRIM1#

main71075-0D060-B3iNCP4#..(13E,13STD,15J)..(PHL,TH)200403-200510

STONE,TRIM12

main71075-0D070-A0iNCP42..ATM..15E..TH200311-200510

IVORY,TRIM0#

main71075-0D070-B2iNCP42..(15E,15G)..(PHL,TH)200212-200510

DARK GRAY,TRIM1#

main71075-0D080-A0iNCP42..ATM..15S200311-200510

LEATHER SEAT,IVORY,TRIM0#

main71075-0D080-B1iNCP42..ATM..15S200212-200311

LEATHER SEAT,DARK GRAY,TRIM13

main71075-0D080-B2iNCP42..ATM..15S200311-200510

LEATHER SEAT,DARK GRAY,TRIM13

main71075-0D100-B0iNCP42..15S200212-200510

DARK GRAY,TRIM1#

main71075-0D110-B0iNCP42..15E..MA200305-200512

DARK GRAY,TRIM1#

main71075-0D120-B0iNCP42..15G..MA200305-200512

DARK GRAY,TRIM1#

main71075-0D130-B0iNCP42..VN200307-200403

STONE,TRIM1#

main71075-0D130-B1iNCP42..VN200403-200603

STONE,TRIM12

main71075-0D140-B1iNCP42..15J..TAIW200510-201309

SEAT = TYPE C-*104,DK.GRAY,TRIM1#

main71075-0D170-A0iNCP42..ATM..15E..TH200311-200510

LUXURY PACKAGE,IVORY,TRIM0#

main71075-0D180-B0iNCP42..MTM..15E200403-200510

STONE,TRIM1#

main71075-0D190-B0iNCP42..VN200603-200709

LEATHER SEAT,STONE,TRIM1#

main71075-0D200-A0iAXP41200511-200608

SEAT = TYPE B-*104,IVORY,TRIM0#

main71075-0D210-A0iAXP42..15GLI200511-200608

SEAT = TYPE B-*104,IVORY,TRIM0#

main71075-0D220-B0iAXP42..GLS200511-200608

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71075-0D240-A0iNCP42..(15E,15G)..TAIW200510-200911

SEAT = TYPE A-*104,IVORY,TRIM0#

main71075-0D240-B0iNCP42..15G..TAIW200510-200709

SEAT = TYPE B-*104,DK.GRAY,TRIM18

main71075-0D240-B1iNCP42..15G..TAIW200510-200709

SEAT = TYPE A-*104,MD.GRAY,TRIM18

main71075-0D250-A0iNCP42..ATM..15S200510-200702

LEATHER SEAT,IVORY,TRIM0#

main71075-0D260-B0iNCP42..15S200510-200702

DARK GRAY,TRIM1#

main71075-0D270-A0iNCP42..ATM..(15E,15S)..TH200510-200702

IVORY,TRIM0#

main71075-0D280-B0iNCP42..(15E,15G)..(PHL,TH)200510-200702

STONE,TRIM1#

main71075-0D290-B0iNCP4#..(13E,13STD,15J)..(PHL,TH)200510-200702

STONE,TRIM1#

main71075-0D300-B0iNCP42..15G..MA200512-200708

DARK GRAY,TRIM1#

main71075-0D310-A0iNCP42..15E..MA200512-200708

IVORY,TRIM0#

main71075-0D320-B0iNCP42..VN200603-200709

STONE,TRIM1#

main71075-0D370-B0iSCP42..GLI,GLS200608-200610

SEAT = TYPE B-*104,STONE,TRIM1#

main71075-0D530-A0iSCP41200611

SEAT = TYPE B-*104,IVORY,TRIM0#

main71075-0D540-A0iSCP42..GLI200611

SEAT = TYPE B-*104,IVORY,TRIM0#

main71075-0D550-B0iSCP42..GLS200611

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71075-0D560-A0iSCP42..GLXI200611

SEAT = TYPE A-*104,IVORY,TRIM0#

main71075-0D570-B0iSCP42..GLI,GLS200611

SEAT = TYPE B-*104,STONE,TRIM1#

main71075-0D730-A0iNCP42200911-201303

SEAT = TYPE A-*104,IVORY,TRIM0#

main71075-0D730-B0iNCP42200911-201110

SEAT = TYPE A-*104,MD.GRAY,TRIM1#

main71075-0D730-B1iNCP42201110-201303

SEAT = TYPE A-*104,DK.GRAY,TRIM1#

main71075-0DJ60-B0iNCP42..15E201303-201309

DK.GRAY,TRIM1#

71075ECLIP(FOR REAR SEAT)

main90467-07080-C0×13iAXP4#200210-200511

BLACK,TRIM0#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0D010-A2iAXP4#..DLX,DLXI200210-200511

IVORY,TRIM0#

main71077-0D020-A0iAXP4#..GL,GLI200210-200511

IVORY,TRIM0#

main71077-0D030-A1iAXP42..GLI,GLXI200210-200511

LEATHER SEAT,IVORY,TRIM0#

main71077-0D210-A0iSCP41200608-200610

SEAT = TYPE B-*104,IVORY,TRIM0#

main71077-0D220-A0iSCP42..GLI200608-200610

SEAT = TYPE B-*104,IVORY,TRIM0#

main71077-0D230-B0iSCP42..GLS200608-200610

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71077-0D370-B0iSCP42..GLI,GLS200608-200610

SEAT = TYPE B-*104,STONE,TRIM1#

main71077-0D620-A0iSCP41200611

SEAT = TYPE B-*104,IVORY,TRIM0#

main71077-0D630-A0iSCP42..GLI200611

SEAT = TYPE B-*104,IVORY,TRIM0#

main71077-0D640-B0iSCP42..GLS200611

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71077-0D650-A0iSCP42..GLXI200611

SEAT = TYPE A-*104,IVORY,TRIM0#

main71077-0D660-B0iSCP42..GLI,GLS200611

SEAT = TYPE B-*104,STONE,TRIM1#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0D010-A2iAXP4#..DLX,DLXI200210-200511

IVORY,TRIM0#

main71078-0D020-A0iAXP4#..GL,GLI200210-200511

IVORY,TRIM0#

main71078-0D030-A1iSCP42..GLXI200608-200610

SEAT = TYPE A-*104,IVORY,TRIM0#

main71078-0D050-A0iAXP41200511-200608

SEAT = TYPE B-*104,IVORY,TRIM0#

main71078-0D060-A0iSCP42..GLI200608-200610

SEAT = TYPE B-*104,IVORY,TRIM0#

main71078-0D070-B0iAXP42..GLS200511-200608

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71078-0D110-B0iSCP42..GLI,GLS200608-200610

SEAT = TYPE B-*104,STONE,TRIM1#

main71078-0D230-A0iSCP41200611

SEAT = TYPE B-*104,IVORY,TRIM0#

main71078-0D240-A0iSCP42..GLI200611

SEAT = TYPE B-*104,IVORY,TRIM0#

main71078-0D250-B0iSCP42..GLS200611

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71078-0D260-A0iSCP42..GLXI200611

SEAT = TYPE A-*104,IVORY,TRIM0#

main71078-0D270-B0iSCP42..GLI,GLS200611

SEAT = TYPE B-*104,STONE,TRIM1#

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71345-0D010×2iAXP4#200210-200511

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-0D010iAXP4#200210-200511

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-0D020-A2iNCP42..(15E,15G)..TAIW200303-200409

***,IVORY,TRIM0#

main71460-0D020-B1iNCP42..(15E,15G)..TAIW200303-200409

***,DARK GRAY,TRIM1#

main71460-0D030-B2iNCP4#..(13E,13STD,15J)..(PHL,TH)200212-200408

STONE,TRIM1#

main71460-0D030-B3iNCP4#..(13E,13STD,15J)..(PHL,TH)200409-200510

STONE,TRIM12

main71460-0D040-A2iAXP4#..DLX,DLXI200210-200511

IVORY,TRIM0#

main71460-0D050-A0iAXP4#..GL,GLI200210-200511

IVORY,TRIM0#

main71460-0D060-A1iAXP42..GLI,GLXI200210-200511

LEATHER SEAT,IVORY,TRIM0#

main71460-0D070-A0iNCP42..ATM..15E..TH200311-200408

IVORY,TRIM0#

main71460-0D070-B2iNCP42..(15E,15G)..(PHL,TH)200409-200510

STONE,TRIM1#

main71460-0D080-A0iNCP42..ATM..15S200311-200408

IVORY,TRIM0#

main71460-0D080-B1iNCP42..ATM..15S200212-200311

LEATHER SEAT,DK. GRAY,TRIM1#

main71460-0D080-B2iNCP42..ATM..15S200409-200510

DARK GRAY,TRIM13

main71460-0D100-B0iNCP42..15S200409-200510

DK. GRAY,TRIM1#

main71460-0D130-B0iNCP42..15E..MA200305-200408

GRAY,TRIM1#

main71460-0D140-B0iNCP42..15G..MA200305-200408

DK. GRAY,TRIM1#

main71460-0D150-B0iNCP42..VN200307-200408

GRAY,TRIM1#

main71460-0D150-B1iNCP42..VN200409-200603

GRAY,TRIM12

main71460-0D170-B1iNCP42..15J..TAIW200303-200409

***,DARK GRAY,TRIM1#

71465SPRING, REAR SEAT CUSHION, NO.5

main71465-0D010iAXP4#200210-200511

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-0D010-A3iAXP4#..DLX,DLXI200210-200511

IVORY,TRIM0#

main71480-0D020-A1iAXP4#..GL,GLI200210-200511

IVORY,TRIM0#

main71480-0D030-A2iAXP42..GLI,GLXI200210-200511

LEATHER SEAT,IVORY,TRIM0#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-0D010-A3iAXP4#..DLX,DLXI200210-200511

IVORY,TRIM0#

main71490-0D020-A1iAXP4#..GL,GLI200210-200511

IVORY,TRIM0#

main71490-0D030-A2iAXP42..GLI,GLXI200210-200511

LEATHER SEAT,IVORY,TRIM0#

71611PAD, REAR SEAT CUSHION

main71503-0D010iAXP4#200210-200511

main71503-0D020iNCP4#200212-200603

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0D010iAXP4#..15GLI,GL,GLS200511-200608

main71651-0D020iAXP42..GLI,GLXI200210-200511

LEATHER SEAT

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0D010iSCP4#..GL,GLI,GLS200608

main71652-0D020iAXP42..GLI,GLXI200210-200511

LEATHER SEAT

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-06070-C0×2iSCP42..GLS200608

BLACK,TRIM1#

71885CCLIP(FOR REAR SEATBACK CARPET)

main90467-09156-C0×4iSCP42..GLS200608

BLACK,TRIM1#

71931ASUPPORT, REAR SEAT HEADREST

main71956-47010-A0×2iAXP4#200210-200511

W/O(LOCK),IVORY,TRIM0#

sub71956-02040

main71956-47010-B1×2iAXP42..15GLI,GLS200511-200608

W/O(LOCK),STONE,TRIM1#

sub71956-02040

main71956-47010-B2×2iSCP42..GLS200608

W/O(LOCK),DK.GRAY,TRIM1#

sub71956-02040

main71970-47010-A0×2iAXP4#200210-200511

W(LOCK),IVORY,TRIM0#

sub71970-02040

main71970-47010-B1×2iAXP42..15GLI,GLS200511-200608

W(LOCK),STONE,TRIM1#

sub71970-02040

main71970-47010-B2×2iSCP42..GLS200608

W(LOCK),DK.GRAY,TRIM1#

sub71970-02040

71940AHEADREST ASSY, REAR SEAT

main71940-0D010-A1×2iAXP4#..DLX,DLXI200210-200511

IVORY,TRIM0#

main71940-0D020-A0×2iAXP4#..GL,GLI200210-200511

IVORY,TRIM0#

main71940-0D030-A1×2iAXP42..GLI,GLXI200210-200511

LEATHER SEAT,IVORY,TRIM0#

main71940-0D140-A0×2iSCP41200608

SEAT = TYPE B-*104,IVORY,TRIM0#

main71940-0D150-A0×2iAXP42..15GLI200511-200608

SEAT = TYPE B-*104,IVORY,TRIM0#

main71940-0D160-B0×2iAXP42..GLS200511-200608

SEAT = TYPE C-*104,DARK GRAY,TRIM1#

main71940-0D200-B0×2iAXP42..15GLI,GLS200511-200608

SEAT = TYPE B-*104,STONE,TRIM1#

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-0D010iAXP4#200511-200608

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-0D010iAXP4#200210-200511

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-0D010-A0×2iAXP4#200210-200511

IVORY,TRIM0#

main72646-0D010-B0×2iSCP42..GLS200608

SEAT = TYPE B-*104,STONE,TRIM1#

main72646-0D010-B1×2iSCP42..GLS200608

SEAT = TYPE C-*104,DK.GRAY,TRIM11

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-32030-A0×2iAXP4#200210-200511

IVORY,TRIM0#

main72661-32030-B2×2iAXP42..15GLI200511-200608

SEAT = TYPE B-*104,STONE,TRIM1#

main72661-32030-B3×2iAXP42..GLS200511-200608

SEAT = TYPE C-*104,DK.GRAY,TRIM11

72693HOOK, REAR SEAT CUSHION LOCK

main72693-02020×2iNCP4#200510

main72693-12080×2iAXP4#200511-200608

9010508120

main90105-08120

9010508372

main90105-08372

9010510474

main90105-10474

9090119071

main90901-19071

9151180820

main91511-80820

29 parts on this diagram · 4 diagrams in section
