E
EPC Data

FRONT SEAT & SEAT TRACK

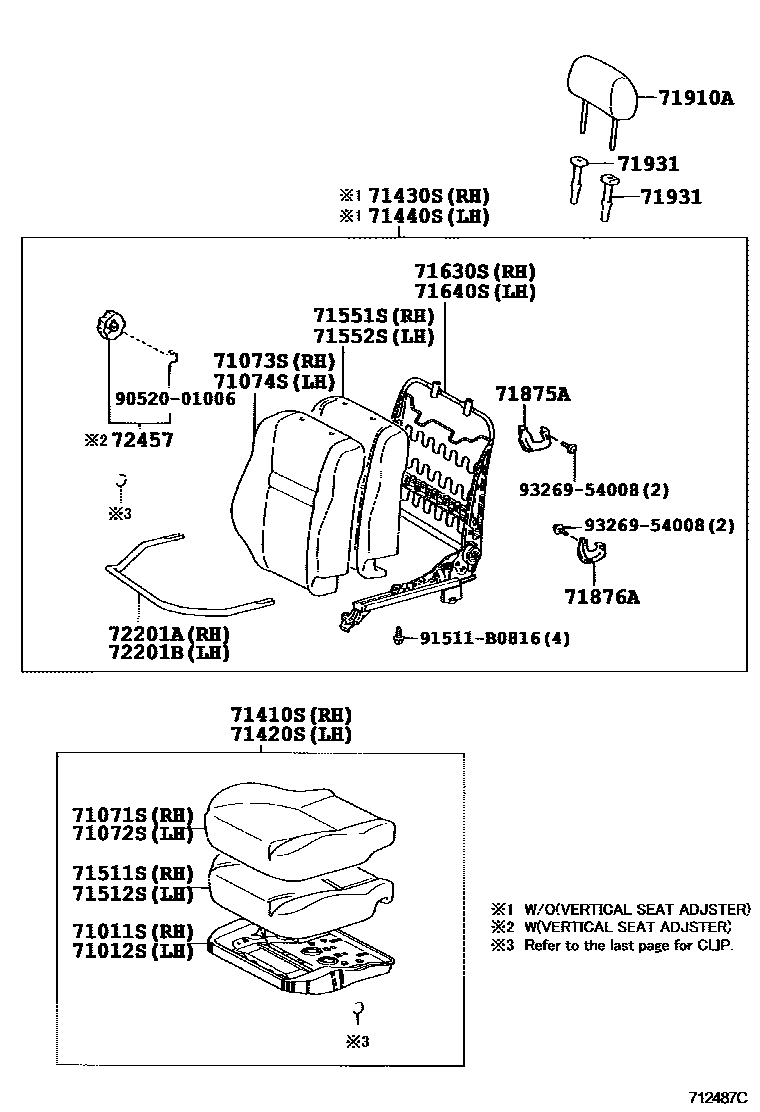

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-02040i200212-200603
main71011-02050i200311-200708
W(VERTICAL SEAT ADJUSTER)
main71011-0D010i200210-200702
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-02040i200212-200709
main71011-02050i200510
W(VERTICAL SEAT ADJUSTER)
main71011-02050i200409-200510
main71011-02070i200511-200702
main71011-0D010i200210-200511
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-02200-B1i200403-200709
LEATHER SEAT,STONE,TRIM1#
main71071-02200-B1i200510-200702
INDONESIA SPEC,STONE,TRIM1#
main71071-0D010-A2i200210-200511
IVORY,TRIM0#
main71071-0D020-A0i200210-200511
IVORY,TRIM0#
main71071-0D030-A1i200511-200608
SEAT = TYPE A-*104,IVORY,TRIM0#
main71071-0D030-A1i200210-200511
LEATHER SEAT,IVORY,TRIM0#
main71071-0D050-A2i200303-200510
SEAT = TYPE A-*104,IVORY,TRIM0#
main71071-0D050-B1i200409-200510
SEAT = TYPE B-*104,DK.GRAY,TRIM13
main71071-0D050-B2i200409-200510
MD.GRAY,TRIM1#
main71071-0D050-B2i200409-200510
SEAT = TYPE A-*104,MD.GRAY,TRIM13
main71071-0D050-E0i200303-200409
SEAT = TYPE A-*104,TAN,TRIM1#
main71071-0D060-B2i200212-200403
STONE,TRIM1#
main71071-0D060-B3i200403-200510
STONE,TRIM12
main71071-0D070-B2i200212-200510
DARK GRAY,TRIM1#
main71071-0D080-A0i200311-200510
IVORY,TRIM0#
sub71071-0D260
main71071-0D080-B1i200311-200510
DARK GRAY,TRIM13
sub71071-0D260
main71071-0D080-B2i200311-200510
LEATHER SEAT,DARK GRAY,TRIM13
sub71071-0D260
main71071-0D100-B0i200212-200510
DARK GRAY,TRIM1#
main71071-0D110-B0i200305-200512
DARK GRAY,TRIM1#
main71071-0D120-B0i200305-200512
DARK GRAY,TRIM1#
main71071-0D130-B0i200307-200403
STONE,TRIM1#
main71071-0D130-B1i200403-200603
STONE,TRIM12
main71071-0D140-B1i200303-200510
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71071-0D140-B1i200510-201309
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71071-0D170-A0i200311-200510
IVORY,TRIM0#
main71071-0D180-B0i200311-200403
W(VERTICAL SEAT ADJUSTER),STONE,TRIM12
main71071-0D180-B1i200403-200510
W(VERTICAL SEAT ADJUSTER),STONE,TRIM12
main71071-0D190-B0i200311-200510
W(VERTICAL SEAT ADJUSTER),DARK GRAY,TRIM1#
main71071-0D200-B0i200311-200510
W(VERTICAL SEAT ADJUSTER),DARK GRAY,TRIM1#
main71071-0D220-A0i200511-200608
SEAT = TYPE B-*104,IVORY,TRIM0#
main71071-0D230-A0i200511-200608
SEAT = TYPE B-*104,IVORY,TRIM0#
main71071-0D240-B0i200511-200608
SEAT = TYPE C-*104,DARK GRAY,TRIM1#
main71071-0D250-A0i200510-200911
SEAT = TYPE A-*104,IVORY,TRIM0#
main71071-0D250-B0i200510-200709
SEAT = TYPE B-*104,DK.GRAY,TRIM18
main71071-0D250-B1i200510-200709
SEAT = TYPE A-*104,MD.GRAY,TRIM18
main71071-0D250-B1i200510-200911
SEAT = TYPE A-*104,MD.GRAY,TRIM1#
main71071-0D260-A0i200510-200702
LEATHER SEAT,IVORY,TRIM0#
main71071-0D270-B0i200510-200702
DARK GRAY,TRIM1#
main71071-0D280-A0i200510-200702
IVORY,TRIM0#
main71071-0D290-B0i200510-200702
STONE,TRIM1#
main71071-0D300-B0i200510-200702
STONE,TRIM1#
main71071-0D310-B0i200510-200702
STONE,TRIM1#
main71071-0D320-B0i200510-200702
STONE,TRIM1#
main71071-0D330-B0i200512-200708
DARK GRAY,TRIM1#
main71071-0D340-A0i200512-200708
IVORY,TRIM0#
main71071-0D350-B0i200603-200709
STONE,TRIM1#
main71071-0D390-B0i200511-200608
SEAT = TYPE B-*104,STONE,TRIM1#
main71071-0D740-A0i200911-201303
SEAT = TYPE A-*104,IVORY,TRIM0#
main71071-0D740-B0i200911-201110
SEAT = TYPE A-*104,MD.GRAY,TRIM1#
main71071-0D740-B1i201110-201303
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71071-0DQ60-B0i201303-201309
DK.GRAY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-0D010-A2i200210-200511
IVORY,TRIM0#
main71071-0D020-A0i200210-200511
IVORY,TRIM0#
main71072-0D030-A1i200210-200511
LEATHER SEAT,IVORY,TRIM0#
main71072-0D050-A2i200303-200409
SEAT = TYPE A-*104,IVORY,TRIM0#
main71072-0D050-E0i200303-200409
SEAT = TYPE A-*104,TAN,TRIM1#
main71072-0D060-B2i200212-200403
STONE,TRIM1#
main71072-0D060-B3i200403-200510
STONE,TRIM12
main71072-0D070-B2i200212-200510
DARK GRAY,TRIM1#
main71072-0D080-A0i200311-200510
IVORY,TRIM0#
sub71072-0D250
main71072-0D080-B1i200311-200510
DARK GRAY,TRIM13
sub71072-0D250
main71072-0D080-B2i200311-200510
LEATHER SEAT,DARK GRAY,TRIM13
sub71072-0D250
main71072-0D090-A0i200311-200510
IVORY,TRIM0#
main71072-0D100-B0i200510-200702
INDONESIA SPEC,STONE,TRIM1#
main71072-0D100-B0i200403-200510
STONE,TRIM1#
main71072-0D110-B0i200212-200510
DARK GRAY,TRIM1#
main71072-0D120-B0i200305-200512
DARK GRAY,TRIM1#
main71072-0D130-B0i200305-200512
DARK GRAY,TRIM1#
main71072-0D140-B0i200307-200403
STONE,TRIM1#
main71072-0D140-B1i200403-200603
STONE,TRIM12
main71072-0D150-B1i200303-200409
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71072-0D170-B0i200510-201309
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71072-0D170-B0i200409-200510
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71072-0D180-A0i200409-200510
SEAT = TYPE A-*104,IVORY,TRIM0#
main71072-0D180-B0i200409-200510
SEAT = TYPE B-*104,DK.GRAY,TRIM13
main71072-0D180-B1i200409-200510
SEAT = TYPE A-*104,MD.GRAY,TRIM1#
main71072-0D180-B1i200409-200510
SEAT = TYPE A-*104,MD.GRAY,TRIM13
main71072-0D190-B0i200409-200709
LEATHER SEAT,STONE,TRIM1#
main71072-0D200-A0i200511-200608
SEAT = TYPE B-*104,IVORY,TRIM0#
main71072-0D210-A0i200511-200608
SEAT = TYPE B-*104,IVORY,TRIM0#
main71072-0D220-B0i200511-200608
SEAT = TYPE C-*104,DARK GRAY,TRIM1#
main71072-0D230-A0i200511-200608
SEAT = TYPE A-*104,IVORY,TRIM0#
main71072-0D240-A0i200510-200911
SEAT = TYPE A-*104,IVORY,TRIM0#
main71072-0D240-B0i200510-200709
SEAT = TYPE B-*104,DK.GRAY,TRIM18
main71072-0D240-B1i200510-200709
SEAT = TYPE A-*104,MD.GRAY,TRIM18
main71072-0D240-B1i200510-200911
SEAT = TYPE A-*104,MD.GRAY,TRIM1#
main71072-0D250-A0i200510-200702
LEATHER SEAT,IVORY,TRIM0#
main71072-0D260-B0i200510-200702
DARK GRAY,TRIM1#
main71072-0D270-A0i200510-200702
IVORY,TRIM0#
main71072-0D280-B0i200510-200702
STONE,TRIM1#
main71072-0D290-B0i200510-200702
STONE,TRIM1#
main71072-0D300-B0i200510-200702
STONE,TRIM1#
main71072-0D310-B0i200510-200702
STONE,TRIM1#
main71072-0D320-B0i200512-200708
DARK GRAY,TRIM1#
main71072-0D330-A0i200512-200708
IVORY,TRIM0#
main71072-0D340-B0i200603-200709
STONE,TRIM1#
main71072-0D380-B0i200511-200608
SEAT = TYPE B-*104,STONE,TRIM1#
main71072-0D780-A0i200911-201303
SEAT = TYPE A-*104,IVORY,TRIM0#
main71072-0D780-B0i200911-201110
SEAT = TYPE A-*104,MD.GRAY,TRIM1#
main71072-0D780-B1i201110-201303
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71072-0DR40-B0i201303-201309
DK.GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-0D010-A2i200210-200511
IVORY,TRIM0#
main71073-0D020-A0i200210-200511
IVORY,TRIM0#
main71073-0D030-A1i200210-200511
LEATHER SEAT,IVORY,TRIM0#
main71073-0D030-A1i200511-200608
SEAT = TYPE A-*104,IVORY,TRIM0#
main71073-0D050-A2i200303-200409
SEAT = TYPE A-*104,IVORY,TRIM0#
main71073-0D050-E0i200303-200409
SEAT = TYPE A-*104,TAN,TRIM1#
main71073-0D051-A2i200409-200510
SEAT = TYPE A-*104,IVORY,TRIM0#
main71073-0D051-B1i200409-200510
SEAT = TYPE B-*104,DK.GRAY,TRIM13
main71073-0D051-B2i200409-200510
SEAT = TYPE A-*104,MD.GRAY,TRIM13
main71073-0D051-B2i200409-200510
SEAT = TYPE A-*104,MD.GRAY,TRIM1#
main71073-0D060-B2i200212-200409
STONE,TRIM1#
main71073-0D061-B3i200409-200510
STONE,TRIM1#
main71073-0D070-B2i200305-200409
DARK GRAY,TRIM1#
main71073-0D071-B2i200409-200510
DARK GRAY,TRIM1#
main71073-0D120-A0i200311-200409
W(SEAT BACK POCKET),IVORY,TRIM0#
main71073-0D120-B0i200212-200409
DARK GRAY,TRIM1#
main71073-0D121-A0i200409-200510
W(SEAT BACK POCKET),IVORY,TRIM0#
main71073-0D121-B0i200409-200510
DARK GRAY,TRIM1#
main71073-0D130-A0i200311-200409
LEATHER SEAT,IVORY,TRIM0#
sub71073-0D320
main71073-0D130-B0i200311-200409
DARK GRAY,TRIM13
sub71073-0D320
main71073-0D130-B1i200311-200409
LEATHER SEAT,DARK GRAY,TRIM13
sub71073-0D320
main71073-0D131-A0i200409-200510
LEATHER SEAT,IVORY,TRIM0#
sub71073-0D320
main71073-0D140-B0i200212-200409
DARK GRAY,TRIM1#
main71073-0D141-B0i200409-200510
DARK GRAY,TRIM1#
main71073-0D150-B0i200305-200409
STONE,TRIM1#
main71073-0D151-B1i200409-200510
STONE,TRIM1#
main71073-0D160-B0i200305-200409
DARK GRAY,TRIM1#
main71073-0D161-B0i200409-200512
DARK GRAY,TRIM1#
main71073-0D180-B0i200305-200409
DARK GRAY,TRIM1#
main71073-0D181-B0i200409-200512
DARK GRAY,TRIM1#
main71073-0D200-B0i200307-200409
STONE,TRIM1#
main71073-0D201-B1i200409-200603
STONE,TRIM1#
main71073-0D220-B0i200303-200409
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71073-0D221-B0i200409-200510
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71073-0D221-B0i200510-201309
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71073-0D240-A0i200311-200409
IVORY,TRIM0#
main71073-0D241-A0i200409-200510
IVORY,TRIM0#
main71073-0D260-B0i200409-200510
LEATHER SEAT,STONE,TRIM1#
main71073-0D270-B0i200409-200603
LEATHER SEAT,STONE,TRIM1#
main71073-0D280-A0i200511-200608
SEAT = TYPE B-*104,IVORY,TRIM0#
main71073-0D290-A0i200511-200608
SEAT = TYPE B-*104,IVORY,TRIM0#
main71073-0D300-B0i200511-200608
SEAT = TYPE C-*104,DARK GRAY,TRIM1#
main71073-0D310-A0i200510-200911
SEAT = TYPE A-*104,IVORY,TRIM0#
main71073-0D310-B0i200510-200709
SEAT = TYPE B-*104,DK.GRAY,TRIM18
main71073-0D310-B1i200510-200911
SEAT = TYPE A-*104,MD.GRAY,TRIM1#
main71073-0D310-B1i200510-200709
SEAT = TYPE A-*104,MD.GRAY,TRIM18
main71073-0D320-A0i200510-200702
LEATHER SEAT,IVORY,TRIM0#
main71073-0D330-B0i200510-200702
DARK GRAY,TRIM1#
main71073-0D340-A0i200510-200702
IVORY,TRIM0#
main71073-0D350-B0i200510-200702
STONE,TRIM1#
main71073-0D360-B0i200510-200702
STONE,TRIM1#
main71073-0D370-B0i200510-200702
STONE,TRIM1#
main71073-0D380-B0i200510-200702
STONE,TRIM1#
main71073-0D400-B0i200510-200702
INDONESIA SPEC,STONE,TRIM1#
main71073-0D410-B0i200512-200708
DARK GRAY,TRIM1#
main71073-0D420-A0i200512-200708
IVORY,TRIM0#
main71073-0D430-B0i200603-200709
STONE,TRIM1#
main71073-0D440-B0i200603-200709
LEATHER SEAT,STONE,TRIM1#
main71073-0D510-B0i200511-200608
SEAT = TYPE B-*104,STONE,TRIM1#
main71073-0DA00-A0i200911-201303
SEAT = TYPE A-*104,IVORY,TRIM0#
main71073-0DA00-B0i200911-201110
SEAT = TYPE A-*104,MD.GRAY,TRIM1#
main71073-0DA00-B1i201110-201303
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71073-0DS20-B0i201303-201309
DK.GRAY,TRIM1#
main71074-02220-B1i200403-200409
LEATHER SEAT,STONE,TRIM1#
sub71074-02221
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-0D010-A2i200210-200511
IVORY,TRIM0#
main71073-0D020-A0i200210-200511
IVORY,TRIM0#
main71073-0D030-A1i200511-200608
SEAT = TYPE A-*104,IVORY,TRIM0#
main71073-0D030-A1i200210-200511
LEATHER SEAT,IVORY,TRIM0#
main71073-0D060-B2i200212-200409
STONE,TRIM1#
main71073-0D061-B3i200409-200510
STONE,TRIM1#
main71073-0D070-A0i200311-200409
W(SEAT BACK POCKET),IVORY,TRIM0#
main71073-0D070-B2i200212-200409
DARK GRAY,TRIM1#
main71073-0D071-A0i200409-200510
W(SEAT BACK POCKET),IVORY,TRIM0#
main71073-0D071-B2i200409-200510
DARK GRAY,TRIM1#
main71073-0D080-A0i200311-200409
LEATHER SEAT,IVORY,TRIM0#
sub71074-0D070
main71073-0D081-A0i200409-200510
LEATHER SEAT,IVORY,TRIM0#
sub71074-0D070
main71073-0D110-B0i200212-200409
DARK GRAY,TRIM1#
main71073-0D111-B0i200409-200510
DARK GRAY,TRIM1#
main71073-0D120-B0i200305-200409
DARK GRAY,TRIM1#
main71073-0D121-B0i200409-200510
DARK GRAY,TRIM1#
main71073-0D170-B0i200305-200409
DARK GRAY,TRIM1#
main71073-0D171-B0i200409-200512
DARK GRAY,TRIM1#
main71073-0D190-B0i200305-200409
DARK GRAY,TRIM1#
main71073-0D191-B0i200409-200512
DARK GRAY,TRIM1#
main71073-0D210-B0i200307-200409
STONE,TRIM1#
main71073-0D211-B1i200409-200603
STONE,TRIM1#
main71073-0D250-A0i200311-200409
IVORY,TRIM0#
main71073-0D251-A0i200409-200510
IVORY,TRIM0#
main71073-0D260-B0i200409-200510
LEATHER SEAT,STONE,TRIM1#
main71073-0D270-B0i200409-200603
LEATHER SEAT,STONE,TRIM1#
main71073-0D280-A0i200511-200608
SEAT = TYPE B-*104,IVORY,TRIM0#
main71073-0D290-A0i200511-200608
SEAT = TYPE B-*104,IVORY,TRIM0#
main71073-0D300-B0i200511-200608
SEAT = TYPE C-*104,DARK GRAY,TRIM1#
main71073-0D510-B0i200511-200608
SEAT = TYPE B-*104,STONE,TRIM1#
main71074-02220-B1i200403-200409
LEATHER SEAT,STONE,TRIM1#
sub71074-02221
main71074-0D050-A2i200303-200409
SEAT = TYPE A-*104,IVORY,TRIM0#
main71074-0D050-E0i200303-200409
SEAT = TYPE A-*104,TAN,TRIM1#
main71074-0D051-A2i200409-200510
SEAT = TYPE A-*104,IVORY,TRIM0#
main71074-0D051-B1i200409-200510
SEAT = TYPE B-*104,DK.GRAY,TRIM13
main71074-0D051-B2i200409-200510
SEAT = TYPE A-*104,MD.GRAY,TRIM13
main71074-0D051-B2i200409-200510
SEAT = TYPE A-*104,MD.GRAY,TRIM1#
main71074-0D060-A0i200510-200911
SEAT = TYPE A-*104,IVORY,TRIM0#
main71074-0D060-B0i200510-200709
SEAT = TYPE B-*104,DK.GRAY,TRIM18
main71074-0D060-B1i200510-200911
SEAT = TYPE A-*104,MD.GRAY,TRIM1#
main71074-0D060-B1i200510-200709
SEAT = TYPE A-*104,MD.GRAY,TRIM18
main71074-0D070-A0i200510-200702
LEATHER SEAT,IVORY,TRIM0#
main71074-0D080-B0i200510-200702
DARK GRAY,TRIM1#
main71074-0D090-B1i200303-200409
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71074-0D091-B1i200510-201309
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71074-0D091-B1i200409-200510
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71074-0D100-A0i200510-200702
IVORY,TRIM0#
main71074-0D110-B0i200510-200702
STONE,TRIM1#
main71074-0D120-B0i200510-200702
STONE,TRIM1#
main71074-0D130-B0i200510-200702
STONE,TRIM1#
main71074-0D150-B0i200510-200702
INDONESIA SPEC,STONE,TRIM1#
main71074-0D160-B0i200512-200708
DARK GRAY,TRIM1#
main71074-0D170-A0i200512-200708
IVORY,TRIM0#
main71074-0D180-B0i200603-200709
STONE,TRIM1#
main71074-0D190-B0i200603-200709
LEATHER SEAT,STONE,TRIM1#
main71074-0D610-A0i200911-201303
SEAT = TYPE A-*104,IVORY,TRIM0#
main71074-0D610-B0i200911-201110
SEAT = TYPE A-*104,MD.GRAY,TRIM1#
main71074-0D610-B1i201110-201303
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71074-0DP00-B0i201303-201309
DK.GRAY,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-0D050-A2i200303-200409
***,IVORY,TRIM0#
main71410-0D050-B1i200303-200409
***,DARK GRAY,TRIM1#
main71410-0D060-B2i200212-200408
STONE,TRIM1#
sub71410-0D060
main71410-0D060-B3i200409-200510
STONE,TRIM12
sub71410-0D060
main71410-0D070-A0i200311-200408
IVORY,TRIM0#
main71410-0D070-B2i200212-200510
STONE,TRIM1#
main71410-0D080-A0i200311-200510
IVORY,TRIM0#
main71410-0D080-B1i200311-200510
***,DK.GRAY,TRIM13
main71410-0D080-B2i200311-200510
DARK GRAY,TRIM13
main71410-0D120-B0i200212-200510
DK. GRAY,TRIM1#
main71410-0D150-B0i200305-200512
GRAY,TRIM1#
main71410-0D160-B0i200307-200408
GRAY,TRIM1#
sub71410-0D160
main71410-0D160-B1i200409-200603
GRAY,TRIM12
sub71410-0D160
main71410-0D170-B0i200305-200512
DK. GRAY,TRIM1#
main71410-0D190-B1i200303-200409
***,DARK GRAY,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-0D050-A2i200303-200409
***,IVORY,TRIM0#
main71420-0D050-B1i200303-200409
***,DARK GRAY,TRIM1#
main71420-0D060-B2i200212-200408
STONE,TRIM1#
sub71420-0D060
main71420-0D060-B3i200409-200510
STONE,TRIM12
sub71420-0D060
main71420-0D070-A0i200311-200408
IVORY,TRIM0#
main71420-0D070-B2i200212-200510
STONE,TRIM1#
main71420-0D080-A0i200311-200510
IVORY,TRIM0#
main71420-0D080-B1i200311-200510
***,DK. GRAY,TRIM13
main71420-0D080-B2i200311-200510
DARK GRAY,TRIM13
main71420-0D100-B0i200212-200510
DK. GRAY,TRIM1#
main71420-0D130-B0i200305-200512
DK. GRAY,TRIM1#
main71420-0D140-B0i200305-200512
GRAY,TRIM1#
main71420-0D150-B0i200307-200408
GRAY,TRIM1#
sub71420-0D150
main71420-0D150-B1i200409-200603
GRAY,TRIM12
sub71420-0D150
main71420-0D160-B1i200303-200409
***,DARK GRAY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-0D020-A3i200303-200409
***,IVORY,TRIM0#
main71430-0D020-B1i200303-200409
***,DARK GRAY,TRIM1#
main71430-0D060-B4i200212-200409
STONE,TRIM1#
main71430-0D061-B0i200409-200510
STONE,TRIM1#
main71430-0D071-A0i200311-200409
IVORY,TRIM0#
main71430-0D071-B0i200212-200409
STONE,TRIM1#
main71430-0D072-B0i200409-200510
STONE,TRIM1#
main71430-0D081-A0i200311-200409
IVORY,TRIM0#
main71430-0D081-B0i200311-200409
***,DK. GRAY,TRIM13
main71430-0D081-B1i200311-200409
DARK GRAY,TRIM13
main71430-0D082-A0i200409-200510
IVORY,TRIM0#
main71430-0D082-B0i200409-200510
DK.GRAY,TRIM1#
main71430-0D151-B0i200212-200409
DK.GRAY,TRIM1#
main71430-0D152-B0i200409-200510
DK.GRAY,TRIM1#
main71430-0D170-B0i200305-200409
GRAY,TRIM1#
main71430-0D171-B0i200409-200510
GRAY,TRIM1#
main71430-0D180-B0i200305-200409
GRAY,TRIM1#
main71430-0D181-B0i200409-200510
GRAY,TRIM1#
main71430-0D200-B0i200305-200409
GRAY,TRIM1#
main71430-0D201-B0i200409-200512
GRAY,TRIM1#
main71430-0D210-B0i200307-200409
GRAY,TRIM1#
main71430-0D211-B0i200409-200603
GRAY,TRIM1#
main71430-0D220-B0i200305-200409
DK. GRAY,TRIM1#
main71430-0D221-B0i200409-200512
DK.GRAY,TRIM1#
main71430-0D240-B1i200303-200409
***,DARK GRAY,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-0D020-A3i200303-200409
***,IVORY,TRIM0#
main71440-0D020-B1i200303-200409
***,DARK GRAY,TRIM1#
main71440-0D030-B2i200212-200409
STONE,TRIM1#
main71440-0D031-B0i200409-200510
STONE,TRIM1#
main71440-0D040-A0i200311-200409
IVORY,TRIM0#
main71440-0D040-B2i200212-200409
DK. GRAY,TRIM1#
main71440-0D041-A0i200409-200510
IVORY,TRIM0#
main71440-0D041-B0i200409-200510
DK.GRAY,TRIM1#
main71440-0D050-A0i200311-200409
IVORY,TRIM0#
main71440-0D050-B1i200311-200409
***,DK. GRAY,TRIM13
main71440-0D050-B2i200311-200409
DARK GRAY,TRIM13
main71440-0D051-A0i200409-200510
IVORY,TRIM0#
main71440-0D051-B0i200409-200510
LEATHER SEAT,DK.GRAY,TRIM1#
main71440-0D110-B0i200212-200409
DK. GRAY,TRIM1#
main71440-0D111-B0i200409-200510
DK.GRAY,TRIM1#
main71440-0D150-B0i200305-200409
GRAY,TRIM1#
main71440-0D151-B0i200409-200510
GRAY,TRIM1#
main71440-0D160-B0i200305-200409
DK. GRAY,TRIM1#
main71440-0D161-B0i200409-200512
DK.GRAY,TRIM1#
main71440-0D170-B0i200305-200409
GRAY,TRIM1#
main71440-0D171-B0i200409-200512
GRAY,TRIM1#
main71440-0D180-B0i200307-200409
GRAY,TRIM1#
main71440-0D181-B0i200409-200603
GRAY,TRIM1#
main71440-0D200-B1i200303-200409
***,DARK GRAY,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-02090i200311-200708
W(VERTICAL SEAT ADJUSTER)
main71511-02100i200212-201110
main71511-0D010i200210-200702
main71511-0D360i201110
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-02090i200510-201110
W(VERTICAL SEAT ADJUSTER)
main71511-02090i200409-200510
main71511-02100i200212-200709
main71511-02280i200511-200702
main71511-0D010i200210-200511
main71511-0D350i201110
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-02090i200512-200709
main71551-02100i200212-200603
main71551-02120i200403-200510
LEATHER SEAT
main71551-02130i200510-200702
main71551-02140i200510-200702
LEATHER SEAT
main71551-0D010i200210-200701
main71551-0D011i200702
main71551-0D020i200608-200701
sub71551-0D021
main71551-0D020i200210-200608
LEATHER SEAT
sub71551-0D021
main71551-0D021i200702
main71551-0D030i200311-200402
LEATHER SEAT
sub71551-02120
main71551-0D040i200510
main71551-0D040i200911-201303
LEATHER SEAT
main71551-0D050i200303-200510
main71551-0D060i200510
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-02100i200212-200603
main71551-02120i200403-200510
LEATHER SEAT
main71551-0D010i200210-200701
main71551-0D011i200702
main71551-0D020i200210-200611
LEATHER SEAT
sub71551-0D021
main71551-0D020i200611-200701
sub71551-0D021
main71551-0D021i200702
main71551-0D030i200311-200402
LEATHER SEAT
sub71551-02120
main71551-0D050i200303-200510
main71552-02070i200303-200510
main71552-02080i200911-201303
LEATHER SEAT
main71552-02080i200510
main71552-0D010i200510-200702
LEATHER SEAT
main71552-0D020i200510-200702
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-0D010i200210-200701
sub71630-0D011
main71630-0D011i200702
main71630-0D020i200303-200409
main71630-0D021i200409-200911
main71630-0D030i200311-200409
W(VERTICAL SEAT ADJUSTER)
main71630-0D031i200409-200702
W(VERTICAL SEAT ADJUSTER)
main71630-0D040i200512-200708
main71630-0D070i200212-200409
main71630-0D071i200409-200702
main71630-0D110i200305-200409
main71630-0D111i200409-200709
main71630-0D220i200911
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-0D010i200210-200511
main71640-0D020i200303-200409
main71640-0D030i200409-200911
main71640-0D040i200511-200701
sub71640-0D041
main71640-0D041i200702
main71640-0D050i200212-200409
main71640-0D051i200409-200702
main71640-0D060i200305-200409
main71640-0D061i200409-200709
main71640-0D070i200510-200702
main71640-0D080i200603-200709
W(VERTICAL SEAT ADJUSTER)
main71640-0D190i200911
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-06060-A0i200303-201303
IVORY,TRIM0#
main71875-06060-B1i200212-201309
DK.GRAY,TRIM1#
main71875-0D010-A0i200511-200608
IVORY,TRIM0#
main71875-0D010-B1i200511-200608
DK.GRAY,TRIM1#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-06060-A0i200303-201303
IVORY,TRIM0#
main71876-06060-B1i200212-201309
DK.GRAY,TRIM1#
main71876-0D010-A0i200511-200608
IVORY,TRIM0#
main71876-0D010-B1i200511-200608
DK.GRAY,TRIM1#
71910AHEADREST ASSY, FRONT SEAT
main71910-02180-B1i200409-200709
LEATHER SEAT,STONE,TRIM1#
main71910-02180-B1i200403-200510
STONE,TRIM1#
main71910-02180-B1i200510-200702
INDONESIA SPEC,STONE,TRIM1#
main71910-0D050-A1i200210-200511
IVORY,TRIM0#
main71910-0D060-A0i200210-200511
IVORY,TRIM0#
main71910-0D070-A1i200511-200608
SEAT = TYPE A-*104,IVORY,TRIM0#
main71910-0D070-A1i200210-200511
LEATHER SEAT,IVORY,TRIM0#
main71910-0D090-A1i200303-200911
IVORY,TRIM0#
main71910-0D090-B1i200303-200911
DK.GRAY,TRIM1#
main71910-0D100-B3i200212-200311
STONE,TRIM1#
main71910-0D100-B4i200311-200510
STONE,TRIM12
main71910-0D110-A0i200311-200510
IVORY,TRIM0#
main71910-0D110-B2i200212-200311
DARK GRAY,TRIM1#
main71910-0D110-B3i200311-200510
DARK GRAY,TRIM12
main71910-0D120-A0i200510-200702
LEATHER SEAT,IVORY,TRIM0#
main71910-0D120-A0i200311-200510
IVORY,TRIM0#
main71910-0D120-B1i200311-200510
LEATHER SEAT,DARK GRAY,TRIM1#
main71910-0D160-A0i200311-200510
LUXURY PACKAGE,IVORY,TRIM0#
main71910-0D200-B0i200212-200311
DARK GRAY,TRIM1#
main71910-0D200-B1i200311-200510
DARK GRAY,TRIM13
main71910-0D230-B0i200305-200310
DARK GRAY,TRIM1#
main71910-0D230-B1i200310-200512
DARK GRAY,TRIM12
main71910-0D240-B0i200305-200310
DARK GRAY,TRIM1#
main71910-0D240-B1i200310-200512
DARK GRAY,TRIM13
main71910-0D250-B0i200307-200310
STONE,TRIM1#
main71910-0D250-B1i200310-200603
STONE,TRIM12
main71910-0D300-A0i200511-200608
SEAT = TYPE B-*104,IVORY,TRIM0#
main71910-0D310-A0i200511-200608
SEAT = TYPE B-*104,IVORY,TRIM0#
main71910-0D320-B0i200511-200608
SEAT = TYPE C-*104,DARK GRAY,TRIM1#
main71910-0D330-B0i200510-200702
DARK GRAY,TRIM1#
main71910-0D340-A0i200510-200702
IVORY,TRIM0#
main71910-0D350-B0i200510-200702
STONE,TRIM1#
main71910-0D360-B0i200510-200702
STONE,TRIM1#
main71910-0D370-B0i200512-200708
DARK GRAY,TRIM1#
main71910-0D380-A0i200512-200708
IVORY,TRIM0#
main71910-0D390-B0i200603-200709
STONE,TRIM1#
main71910-0D420-B0i200511-200608
SEAT = TYPE B-*104,STONE,TRIM1#
main71910-0D760-A0i200911-201303
IVORY,TRIM0#
main71910-0D760-B0i200911-201309
DK.GRAY,TRIM1#
main71910-0DE50-B0i201303-201309
DK.GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-02050-A0i200311-200708
W(LOCK),IVORY,TRIM0#
sub71930-02050
main71930-02050-B0i200212-200709
W(LOCK),STONE,TRIM1#
sub71930-02050
main71930-02050-B1i200212-200708
W(LOCK),DK.GRAY,TRIM1#
sub71930-02050
main71930-0D090-A0i200210-200705
W(LOCK),IVORY,TRIM0#
sub71930-0D110
main71930-0D090-B1i200511-200705
W(LOCK),DK.GRAY,TRIM1#
sub71930-0D110
main71930-0D090-B2i200511-200705
W(LOCK),STONE,TRIM1#
sub71930-0D110
main71930-0D110-A0i200706
W(LOCK),IVORY,TRIM0#
main71930-0D110-B0i200706
W(LOCK),STONE,TRIM1#
main71930-0D110-B1i200706
W(LOCK),DK.GRAY,TRIM1#
main71930-20130-A0i200303-200911
W(LOCK),IVORY,TRIM0#
main71930-20130-B3i200303-200911
W(LOCK),DK.GRAY,TRIM1#
main71930-44020-A0i200911-201303
W(LOCK),IVORY,TRIM0#
sub71930-44020
sub71930-02370
main71930-44020-B0i200911-201309
W(LOCK),DK.GRAY,TRIM1#
sub71930-44020
sub71930-02370
main71931-02030-A0i200311-200708
W/O(LOCK),IVORY,TRIM0#
sub71931-02030
main71931-02030-B0i200212-200709
W/O(LOCK),STONE,TRIM1#
sub71931-02030
main71931-02030-B1i200212-200708
W/O(LOCK),DK.GRAY,TRIM1#
sub71931-02030
main71931-0D110-A0i200210-200608
W/O(LOCK),IVORY,TRIM0#
main71931-0D110-B1i200511-200608
W/O(LOCK),DK.GRAY,TRIM1#
main71931-0D110-B2i200511-200608
W/O(LOCK),STONE,TRIM1#
main71931-12040-A5i200303-200911
W/O(LOCK),IVORY,TRIM0#
sub71931-12040
sub71931-10020
main71931-12040-S7i200303-200911
W/O(LOCK),DK.GRAY,TRIM1#
sub71931-12040
sub71931-10020
main71931-47010-A0i200911-201303
W/O(LOCK),IVORY,TRIM0#
sub71931-47010
sub71931-42020
main71931-47010-B2i200911-201309
W/O(LOCK),DK.GRAY,TRIM1#
sub71931-47010
sub71931-42020
72201AHANDLE SUB-ASSY, SEAT TRACK RH
main72211-02020i200212-200603
main72211-0D030i200210-200702
72201BHANDLE SUB-ASSY, SEAT TRACK LH
main72211-02020i200212-200603
main72211-0D030i200210-200702
72457KNOB, VERTICAL SEAT ADJUSTER
main72457-12030-A0i200311-200708
IVORY,TRIM0#
sub72457-12030
sub72457-0K010
main72457-12030-B2i200311-200708
DK.GRAY,TRIM1#
sub72457-12030
sub72457-0K010
main72457-18010-A1i200409-201303
IVORY,TRIM0#
sub72457-18010
main72457-18010-S1i200409-201309
DK.GRAY,TRIM1#
sub72457-18010
9052001006
main90520-01006
91511B0816
main91511-B0816
9326954008
main93269-54008

26 parts on this diagram · 5 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
