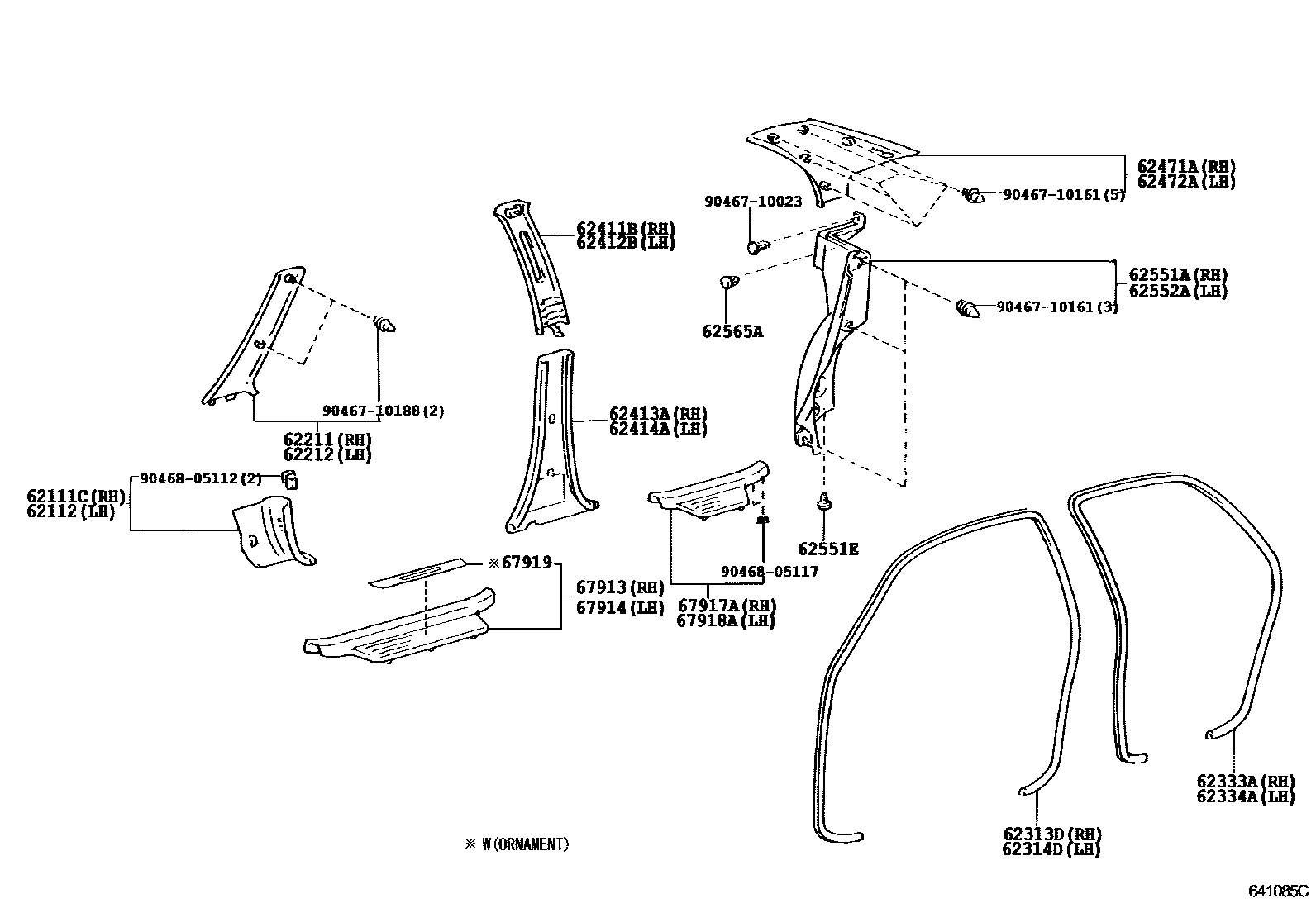

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0003 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-0D020-B0iSCP42..GLI,GLS200511-200611

DK.GRAY,TRIM1#

sub62111-0D100

main62111-0D020-E0iAXP4#..15GLI,GL,GLXI200210-200611

DK.BROWN,TRIM0#

sub62111-0D100

main62111-0D030-B0iNCP4#..LHD200303-201309

DK.GRAY,TRIM1#

main62111-0D030-E0iNCP42..(15E,15G)..TAIW200303-201303

DK.BROWN,TRIM0#

main62111-0D040-A0iNCP42..ATM..(15E,15S)..TH200212-200708

IVORY,TRIM0#

main62111-0D040-B0iNCP42..15E..TH;NCP42..RHD..(15G,15J,15S)200212-200708

DK.GRAY,TRIM1#

main62111-0D100-B0iSCP42..GLI,GLS200611

DK.GRAY,TRIM1#

main62111-0D100-E0iSCP4#..GL,GLI,GLXI200611

DK.BROWN,TRIM0#

62112BOARD, COWL SIDE TRIM, LH

main62112-0D020-B0iAXP42..15GLI,GLS200511-200611

DK.GRAY,TRIM1#

sub62112-0D140

main62112-0D020-E0iAXP4#200210-200611

DK.BROWN,TRIM0#

sub62112-0D140

main62112-0D030-B0iNCP4#..LHD200303-201309

DK.GRAY,TRIM1#

main62112-0D030-E0iNCP42..TAIW200303-201303

DK.BROWN,TRIM0#

main62112-0D040-A0iNCP42..ATM..(15E,15S)..TH200212-200708

IVORY,TRIM0#

main62112-0D040-B0iNCP42..RHD200212-200708

DK.GRAY,TRIM1#

main62112-0D140-B0iSCP42..GLI,GLS200611

DK.GRAY,TRIM1#

main62112-0D140-E0iSCP4#..GL,GLI,GLXI200611

DK.BROWN,TRIM0#

62211GARNISH, FRONT PILLAR, RH

main62211-0D020-A0iAXP4#..15GLI,GL,GLXI200210-200611

IVORY,TRIM0#

sub62211-0D150

main62211-0D020-B0iAXP42..15GLI,GLS200511-200611

LT.GRAY,TRIM1#

sub62211-0D150

main62211-0D030-A0iNCP42..(15E,15G)..TAIW200303-201303

IVORY,TRIM0#

main62211-0D030-B0iNCP42..TAIW200303-201309

LT.GRAY,TRIM1#

main62211-0D040-A0iNCP42..ATM..(15E,15S)..TH200212-200708

IVORY,TRIM0#

main62211-0D040-B0iNCP42..VN200212-200709

LT.GRAY,TRIM1#

main62211-0D150-A0iSCP4#..GL,GLI,GLXI200611

IVORY,TRIM0#

main62211-0D150-B0iSCP42..GLI,GLS200611

LT.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-0D020-A0iAXP4#..15GLI,GL,GLXI200210-200611

IVORY,TRIM0#

sub62212-0D160

main62212-0D020-B0iSCP42..GLI,GLS200511-200611

LT.GRAY,TRIM1#

sub62212-0D160

main62212-0D030-A0iNCP42..TAIW200303-201303

IVORY,TRIM0#

main62212-0D030-B0iNCP42..TAIW200303-201309

LT.GRAY,TRIM1#

main62212-0D040-A0iNCP42..ATM..(15E,15S)..TH200212-200708

IVORY,TRIM0#

main62212-0D040-B0iNCP4#..MA,PHL,TH200212-200709

LT.GRAY,TRIM1#

main62212-0D160-A0iSCP4#..GL,GLI,GLXI200611

IVORY,TRIM0#

main62212-0D160-B0iSCP42..GLI,GLS200611

LT.GRAY,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62311-0D050-B0iAXP42..15GLI,GLS200511-200608

DK.GRAY,TRIM1#

main62311-0D050-E0iAXP4#..GL,GLI,GLXI200210-200608

DK.BROWN,TRIM0#

main62313-0D030-E0iAXP4#..DLX,DLXI200210-200511

DK.BROWN,TRIM0#

62314DTRIM, FRONT DOOR OPENING, LH

main62312-0D050-B0iAXP42..15GLI,GLS200511-200608

DK.GRAY,TRIM1#

main62312-0D050-E0iAXP4#..15GLI,GL,GLXI200210-200608

DK.BROWN,TRIM0#

main62314-0D030-E0iAXP4#..DLX,DLXI200210-200511

DK.BROWN,TRIM0#

62333ATRIM, REAR DOOR OPENING, RH

main62333-0D020-B0iSCP42..GLI,GLS200511-200608

DK.GRAY,TRIM1#

main62333-0D020-E0iAXP4#..15GLI,GL,GLXI200210-200608

DK.BROWN,TRIM0#

main62333-0D030-B0iNCP42..TAIW200303-201309

DK.GRAY,TRIM1#

main62333-0D030-E0iNCP42..(15E,15G)..TAIW200303-201303

DK.BROWN,TRIM0#

main62333-0D050-A0iNCP42..RHD..ATM..(15E,15S)200212-200708

IVORY,TRIM0#

main62333-0D050-B0iNCP4#..MA,PHL,TH,VN200212-200709

DK.GRAY,TRIM1#

62334ATRIM, REAR DOOR OPENING, LH

main62334-0D020-B0iAXP42..15GLI,GLS200511-200608

DK.GRAY,TRIM1#

main62334-0D020-E0iAXP4#200210-200608

DK.BROWN,TRIM0#

main62334-0D030-B0iNCP42..TAIW200303-201309

DK.GRAY,TRIM1#

main62334-0D030-E0iNCP42..15J200303-201303

DK.BROWN,TRIM0#

main62334-0D050-A0iNCP42..RHD..ATM..(15E,15S)200212-200708

IVORY,TRIM0#

main62334-0D050-B0iNCP4#..MA,PHL,TH,VN200212-200709

DK.GRAY,TRIM1#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-0D020-A0iAXP4#..15GLI,GL,GLXI200210-200611

IVORY,TRIM0#

sub62411-0D120

main62411-0D020-B0iSCP42..GLI,GLS200511-200611

LT.GRAY,TRIM1#

sub62411-0D120

main62411-0D030-A0iNCP42..(15E,15G)..TAIW200303-201303

IVORY,TRIM0#

main62411-0D030-B0iNCP42..TAIW200303-201309

LT.GRAY,TRIM1#

main62411-0D040-A0iNCP42..ATM..(15E,15S)..TH200212-200708

IVORY,TRIM0#

main62411-0D040-B0iNCP42..15E..TH;NCP4#..(13E,13STD,15G,15J,15S)..(MA,PHL,TH,VN)200212-200709

LT.GRAY,TRIM1#

main62411-0D120-A0iSCP4#..GL,GLI,GLXI200611

IVORY,TRIM0#

main62411-0D120-B0iSCP42..GLI,GLS200611

LT.GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-0D020-A0iAXP4#200210-200611

IVORY,TRIM0#

sub62412-0D120

main62412-0D020-B0iAXP42..15GLI,GLS200511-200611

LT.GRAY,TRIM1#

sub62412-0D120

main62412-0D030-A0iNCP42..(15E,15G)..TAIW200303-201303

IVORY,TRIM0#

main62412-0D030-B0iNCP42..VN200303-201309

LT.GRAY,TRIM1#

main62412-0D040-A0iNCP42..RHD..ATM..(15E,15S)200212-200708

IVORY,TRIM0#

main62412-0D040-B0iNCP4#..MA,PHL,TH200212-200709

LT.GRAY,TRIM1#

main62412-0D120-A0iSCP4#..GL,GLI,GLXI200611

IVORY,TRIM0#

main62412-0D120-B0iSCP42..GLI,GLS200611

LT.GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62030-0D020-B0iSCP42..GLI,GLS200511-200611

DK.GRAY,TRIM1#

sub62030-0D080

main62030-0D020-E0iAXP4#200210-200611

DK.BROWN,TRIM0#

sub62030-0D080

main62030-0D030-B0iNCP42..TAIW200303-200906

DK.GRAY,TRIM1#

sub62030-0D031

main62030-0D030-E0iNCP42..(15E,15G)..TAIW200303-200906

DK.BROWN,TRIM0#

sub62030-0D031

main62030-0D031-B0iNCP42200907-201309

DK.GRAY,TRIM1#

main62030-0D031-E0iNCP42200907-201303

DK.BROWN,TRIM0#

main62030-0D040-A0iNCP42..ATM..(15E,15S)..TH200212-200708

IVORY,TRIM0#

main62030-0D040-B0iNCP42..15E..TH;NCP4#..(13E,13STD,15G,15J,15S)..(MA,PHL,TH,VN)200212-200709

DK.GRAY,TRIM1#

main62030-0D080-B0iSCP42..GLI,GLS200611

DK.GRAY,TRIM1#

main62030-0D080-E0iSCP4#..GL,GLI,GLXI200611

DK.BROWN,TRIM0#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62040-0D020-B0iSCP42..GLI,GLS200511-200611

DK.GRAY,TRIM1#

sub62040-0D060

main62040-0D020-E0iSCP4#..GL,GLI,GLXI200210-200611

DK.BROWN,TRIM0#

sub62040-0D060

main62040-0D030-B0iNCP42..TAIW200303-200906

DK.GRAY,TRIM1#

sub62040-0D031

main62040-0D030-E0iNCP42..(15E,15G)..TAIW200303-200906

DK.BROWN,TRIM0#

sub62040-0D031

main62040-0D031-B0iNCP42200907-201309

DK.GRAY,TRIM1#

main62040-0D031-E0iNCP42200907-201303

DK.BROWN,TRIM0#

main62040-0D040-A0iNCP42..RHD..ATM..(15E,15S)200212-200708

IVORY,TRIM0#

main62040-0D040-B0iNCP4#..MA,PHL,TH200212-200709

DK.GRAY,TRIM1#

main62040-0D060-B0iSCP42..GLI,GLS200611

DK.GRAY,TRIM1#

main62040-0D060-E0iSCP4#..GL,GLI,GLXI200611

DK.BROWN,TRIM0#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-0D030-A0iNCP42..(15E,15G)..TAIW200303-201303

IVORY,TRIM0#

main62471-0D030-B0iNCP42..TAIW200303-201309

LT.GRAY,TRIM1#

main62471-0D040-A0iAXP4#200210-200611

IVORY,TRIM0#

sub62471-0D200

main62471-0D040-B0iAXP42..15GLI,GLS200511-200611

LT.GRAY,TRIM1#

sub62471-0D200

main62471-0D050-A0iNCP42..RHD..ATM..(15E,15S)200212-200708

IVORY,TRIM0#

main62471-0D050-B0iNCP42..15E..TH;NCP4#..(13E,13STD,15G,15J,15S)..(MA,PHL,TH,VN)200212-200709

LT.GRAY,TRIM1#

main62471-0D200-A0iSCP4#..GL,GLI,GLXI200611

IVORY,TRIM0#

main62471-0D200-B0iSCP42..GLI,GLS200611

LT.GRAY,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-0D030-A0iNCP42..TAIW200303-201303

IVORY,TRIM0#

main62472-0D030-B0iNCP42..TAIW200303-201309

LT.GRAY,TRIM1#

main62472-0D040-A0iAXP4#..15GLI,GL,GLXI200210-200611

IVORY,TRIM0#

sub62472-0D230

main62472-0D040-B0iAXP42..15GLI,GLS200511-200611

LT.GRAY,TRIM1#

sub62472-0D230

main62472-0D050-A0iNCP42..ATM..(15E,15S)..TH200212-200708

IVORY,TRIM0#

main62472-0D050-B0iNCP42..VN200212-200709

LT.GRAY,TRIM1#

main62472-0D230-A0iSCP4#..GL,GLI,GLXI200611

IVORY,TRIM0#

main62472-0D230-B0iSCP42..GLI,GLS200611

LT.GRAY,TRIM1#

62551ACOVER, REAR SEAT SIDE, RH

main62551-0D020-B0iSCP42..GLI,GLS200511-200611

DK.GRAY,TRIM1#

sub62551-0D080

main62551-0D020-E0iAXP4#..15GLI,GL,GLXI200210-200611

DK.BROWN,TRIM0#

sub62551-0D080

main62551-0D080-B0iSCP42..GLI,GLS200611

DK.GRAY,TRIM1#

sub62551-0D081

main62551-0D080-E0iSCP4#..GL,GLI,GLXI200611

DK.BROWN,TRIM0#

sub62551-0D081

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-07115-B0iSCP42..GLI,GLS200511-200608

DK.GRAY,TRIM1#

sub90467-07115

main90467-07115-E0iSCP4#..GL,GLI,GLXI200210-200608

DK.BROWN,TRIM0#

sub90467-07115

62552ACOVER, REAR SEAT SIDE, LH

main62552-0D010-B0iSCP42..GLI,GLS200511-200611

DK.GRAY,TRIM1#

sub62552-0D060

main62552-0D010-E0iAXP4#..15GLI,GL,GLXI200210-200611

DK.BROWN,TRIM0#

sub62552-0D060

main62552-0D060-B0iSCP42..GLI,GLS200611

DK.GRAY,TRIM1#

sub62552-0D061

main62552-0D060-E0iSCP4#..GL,GLI,GLXI200611

DK.BROWN,TRIM0#

sub62552-0D061

62565ACLIP (FOR REAR SEAT SIDE GARNISH)

main90467-12129-B1iAXP4#200210-200511

LT. BLUISH GRAY,TRIM0#

sub90467-12129

main90467-12129-B1iAXP4#200511-200608

LT. BLUISH GRAY

sub90467-12129

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0D030-B0iAXP42..15GLI,GLS200511-200611

DK.GRAY,TRIM1#

sub67913-0D150

main67913-0D030-E0iAXP4#200210-200611

DK.BROWN,TRIM0#

sub67913-0D150

main67913-0D040-B0iNCP42..VN200303-201309

DK.GRAY,TRIM1#

main67913-0D040-E0iNCP42..(15E,15G)..TAIW200303-201303

DK.BROWN,TRIM0#

main67913-0D060-A0iNCP42..ATM..(15E,15S)..TH200212-200708

IVORY,TRIM0#

main67913-0D060-B0iNCP4#..MA,PHL,TH200212-200709

DK.GRAY,TRIM1#

main67913-0D100-B0iAXP42..GLS200511-200611

W(ORNAMENT),DK.GRAY,TRIM1#

sub67913-0D160

main67913-0D150-B0iSCP42..GLI,GLS200611

DK.GRAY,TRIM1#

main67913-0D150-E0iSCP4#..GL,GLI,GLXI200611

DK.BROWN,TRIM0#

main67913-0D160-B0iSCP42..GLS200611

W(ORNAMENT),DK.GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0D030-B0iSCP42..GLI,GLS200511-200611

DK.GRAY,TRIM1#

sub67914-0D160

main67914-0D030-E0iSCP4#..GL,GLI,GLXI200210-200611

DK.BROWN,TRIM0#

sub67914-0D160

main67914-0D040-B0iNCP42..TAIW200303-201309

DK.GRAY,TRIM1#

main67914-0D040-E0iNCP42..TAIW200303-201303

DK.BROWN,TRIM0#

main67914-0D060-A0iNCP42..RHD..ATM..(15E,15S)200212-200708

IVORY,TRIM0#

main67914-0D060-B0iNCP42..15E..TH;NCP4#..(13E,13STD,15G,15J,15S)..(MA,PHL,TH,VN)200212-200709

DK.GRAY,TRIM1#

main67914-0D110-B0iAXP42..GLS200511-200611

W(ORNAMENT),DK.GRAY,TRIM1#

sub67914-0D170

main67914-0D160-B0iSCP42..GLI,GLS200611

DK.GRAY,TRIM1#

main67914-0D160-E0iSCP4#..GL,GLI,GLXI200611

DK.BROWN,TRIM0#

main67914-0D170-B0iSCP42..GLS200611

W(ORNAMENT),DK.GRAY,TRIM1#

67917APLATE, REAR DOOR SCUFF, RH

main67917-0D020-B0iSCP42..GLI,GLS200511-200611

DK.GRAY,TRIM1#

sub67917-0D110

main67917-0D020-E0iAXP4#..15GLI,GL,GLXI200210-200611

DK.BROWN,TRIM0#

sub67917-0D110

main67917-0D030-B0iNCP42..TAIW200303-201309

DK.GRAY,TRIM1#

main67917-0D030-E0iNCP42..(15E,15G)..TAIW200303-201303

DK.BROWN,TRIM0#

main67917-0D050-A0iNCP42..RHD..ATM..(15E,15S)200212-200708

IVORY,TRIM0#

main67917-0D050-B0iNCP42..VN200212-200709

DK.GRAY,TRIM1#

main67917-0D110-B0iSCP42..GLI,GLS200611

DK.GRAY,TRIM1#

main67917-0D110-E0iSCP4#..GL,GLI,GLXI200611

DK.BROWN,TRIM0#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0D020-B0iAXP42..15GLI,GLS200511-200611

DK.GRAY,TRIM1#

sub67918-0D110

main67918-0D020-E0iAXP4#..15GLI,GL,GLXI200210-200611

DK.BROWN,TRIM0#

sub67918-0D110

main67918-0D030-B0iNCP42..TAIW200303-201309

DK.GRAY,TRIM1#

main67918-0D030-E0iNCP42..(15E,15G)..TAIW200303-201303

DK.BROWN,TRIM0#

main67918-0D050-A0iNCP42..ATM..(15E,15S)..TH200212-200708

IVORY,TRIM0#

main67918-0D050-B0iNCP42..VN200212-200709

DK.GRAY,TRIM1#

main67918-0D110-B0iSCP42..GLI,GLS200611

DK.GRAY,TRIM1#

main67918-0D110-E0iSCP4#..GL,GLI,GLXI200611

DK.BROWN,TRIM0#

67919ORNAMENT, DOOR SCUFF

main67919-0D020iSCP42..GLS200511-200608

9046710023

main90467-10023

9046710161

main90467-10161

9046710188

main90467-10188

9046805112

main90468-05112

9046805117

main90468-05117

28 parts on this diagram · 2 diagrams in section
