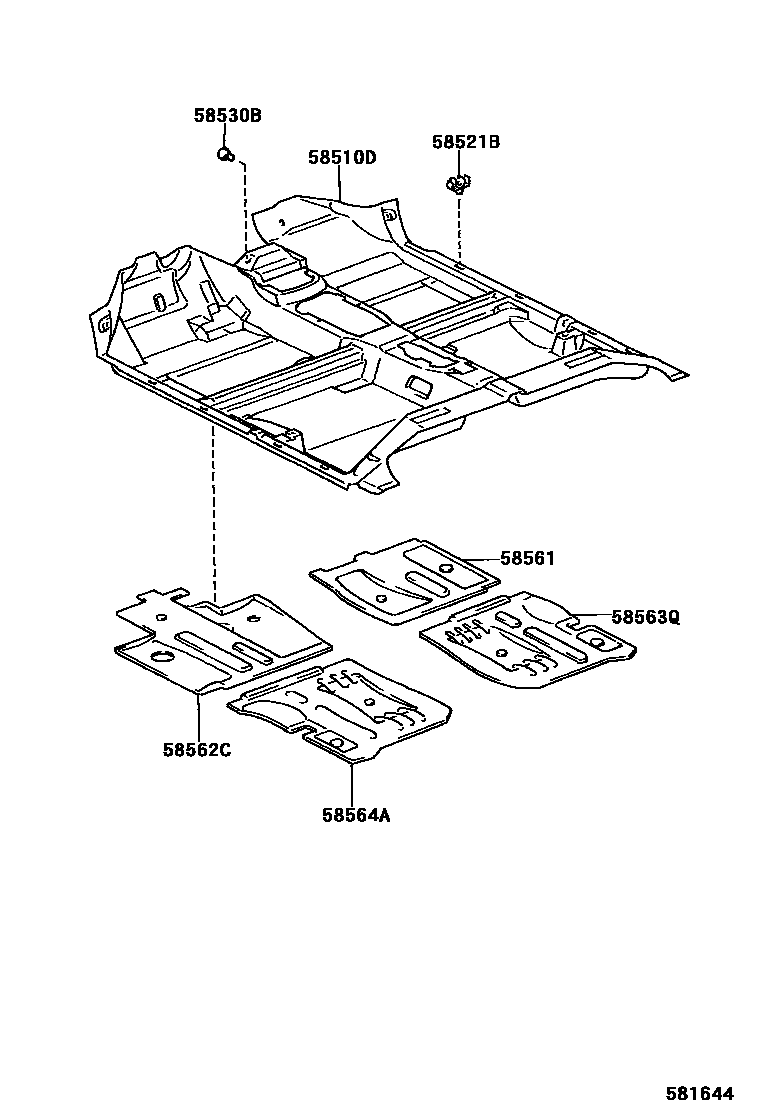

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-0D110-A1iAXP4#200210-200410

IVORY,TRIM0#

main58510-0D120-A1iAXP4#200210-200410

W(REAR HEATER DUCT),IVORY,TRIM0#

main58510-0D130-A2iNCP42..(15E,15G)..TAIW200303-200510

IVORY,TRIM0#

main58510-0D130-B5iNCP42..TAIW200303-200510

DK.GRAY,TRIM1#

main58510-0D140-A0iNCP42..ATM..(15E,15S)..TH200212-200510

IVORY,TRIM0#

main58510-0D140-B5iNCP42..MTM..15E200212-200702

STONE,TRIM1#

main58510-0D140-B6iNCP42..15S200212-200510

DK.GRAY,TRIM1#

main58510-0D270-B2iNCP42..15E..MA200305-200512

STONE,TRIM1#

main58510-0D270-B3iNCP42..15G..MA200305-200512

DK.GRAY,TRIM1#

main58510-0D350-B0iNCP42..VN200305-200603

STONE,TRIM1#

main58510-0D350-B0iNCP42..VN200603-200709

LOW PACKEGE VE,STONE,TRIM1#

main58510-0D360-B0iNCP42..VN200307-200404

STONE,TRIM1#

main58510-0D390-A0iNCP42..TAIW200510-201303

IVORY,TRIM0#

main58510-0D390-B0iNCP42..TAIW200510-201309

DK.GRAY,TRIM1#

main58510-0D400-A0iNCP42..ATM..(15E,15S)..TH200510-200702

IVORY,TRIM0#

main58510-0D400-B0iNCP42..ATM..15S200510-200702

STONE,TRIM17

main58510-0D400-B0iNCP42..(15E,15J)..TH200510-200702

W(SEAT UNDER TRAY),STONE,TRIM1#

main58510-0D400-B1iNCP42..ATM..15S200510-200702

DK.GRAY,TRIM1#

main58510-0D400-B1iNCP42..MTM..15S200510-200702

DK.GRAY,TRIM18

main58510-0D410-B0iNCP4#..PHL,VN200510-200709

STONE,TRIM1#

main58510-0D420-A0iNCP42..15E..MA200512-200708

IVORY,TRIM0#

main58510-0D420-B0iNCP42..15G..MA200512-200708

DK.GRAY,TRIM1#

main58510-0D430-A0iAXP4#..15GLI,GL,GLXI200410-200611

IVORY,TRIM0#

sub58510-0D590

main58510-0D430-B1iSCP42..GLI,GLS200608-200611

STONE,TRIM1#

sub58510-0D590

main58510-0D430-B1iAXP42..15GLI,GLS200511-200608

STONE,TRIM11

sub58510-0D590

main58510-0D440-A0iAXP4#200410-200511

COLD SPEC,IVORY,TRIM0#

sub58510-0D600

main58510-0D440-A0iAXP4#..15GLI,GL,GLXI200511-200611

W(REAR HEATER DUCT),IVORY,TRIM0#

sub58510-0D600

main58510-0D440-B1iAXP42..15GLI,GLS200511-200611

W(REAR HEATER DUCT),STONE,TRIM1#

sub58510-0D600

main58510-0D590-A0iSCP4#..GL,GLI,GLXI200611

IVORY,TRIM0#

main58510-0D590-B0iSCP42..GLI,GLS200611

STONE,TRIM1#

main58510-0D600-A0iSCP4#..GL,GLI,GLXI200611

W(REAR HEATER DUCT),IVORY,TRIM0#

main58510-0D600-B0iSCP42..GLI,GLS200611

W(REAR HEATER DUCT),STONE,TRIM1#

58521BHOOK, FLOOR CARPET

main58521-0D020iAXP4#200210-200608

main58521-0D040iNCP4#200212-200603

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-10091iAXP4#¥120200210-200608

58561RETAINER, FLOOR MAT, NO.1

main58561-0D020iAXP4#200210-200608

58562CSILENCER, FRONT FLOOR, NO.2

main58562-0D020iAXP4#200210-200608

58563QSILENCER, FRONT FLOOR, NO.3

main58563-0D020iAXP4#200210-200608

58564ASILENCER, FRONT FLOOR, NO.4

main58564-0D020iAXP4#200210-200608

7 parts on this diagram · 1 diagram in section
