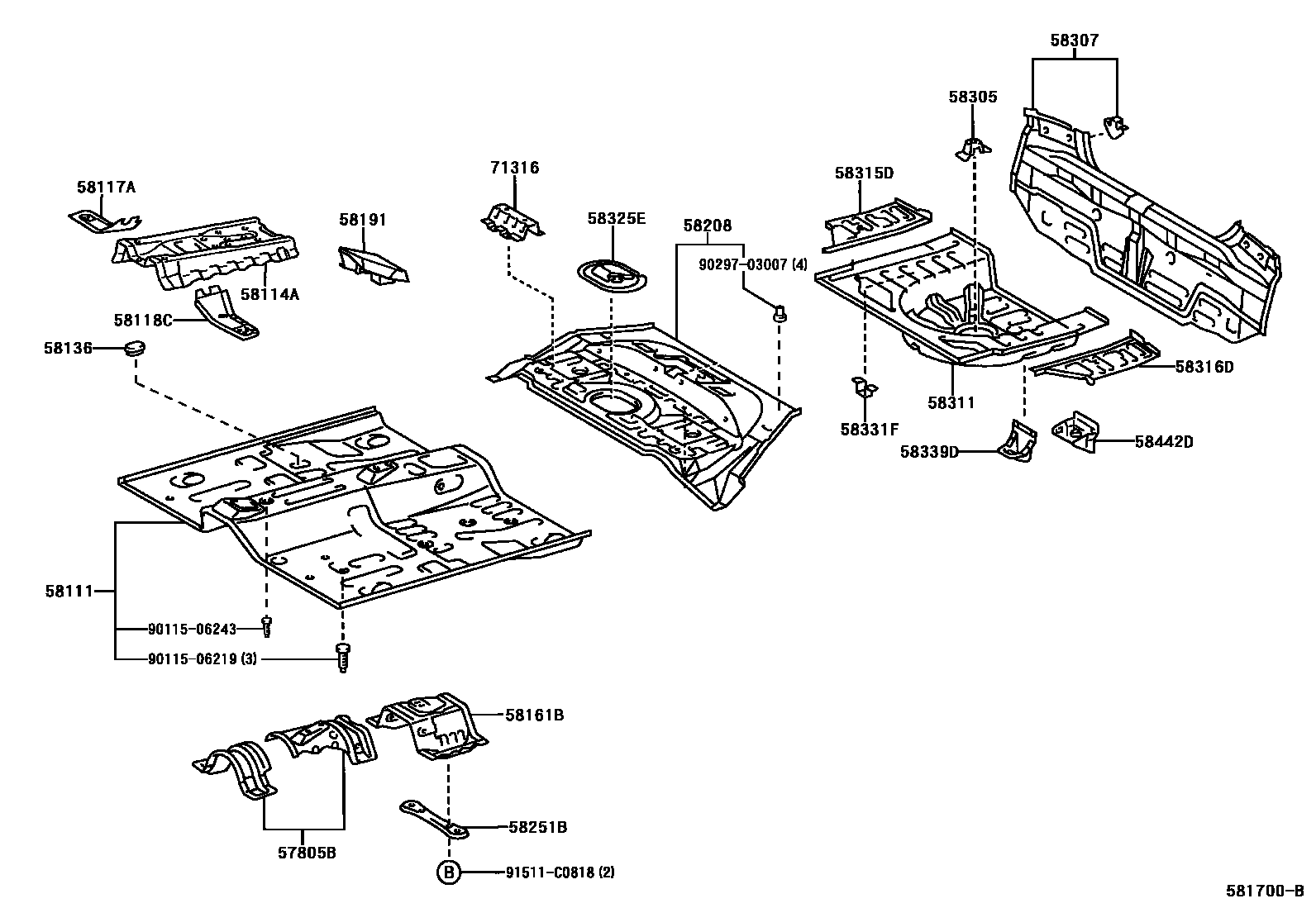

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-0D050iNCP4#..MA,PHL,TH,VN200510-200709

main57805-52090iAXP4#200511-200608

58111PAN, FRONT FLOOR

main58111-0D020iSCP4#200608

main58111-0D902iNCP4#200212-200508

sub90333-25001

main58111-0D904iNCP4#200510

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-0D020iNCP42..TAIW200303-200510

main58114-0D040iNCP4#..MA,PHL,TH200212-200603

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-52030iNCP4#200212-200603

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-52020iAXP4#200210-200511

58136COVER, FRONT FLOOR HOLE

main58136-0D020×2iNCP42..TAIW,VN200303-200603

main58136-52010×2iAXP4#200210-200511

main61688-0D010×2iNCP4#..MA,PHL,TH200510-200708

main67811-33040×2iNCP42200212-200301

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-0D040iNCP4#200212-200507

sub90333-25001

main58161-0D041iNCP4#200510

main58161-52030iAXP4#200511-200608

58191FOOTREST, FRONT FLOOR

main58190-52010iSCP4#200608

main58191-0D020iNCP4#..LHD200510

58208PAN, CENTER FLOOR

main58211-0D020iAXP4#200210-200511

main58211-0D030iNCP4#200212-200603

58251BBRACE, FLOOR PANEL, FRONT

main58251-52010iSCP4#200608

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-33010iSCP4#200608

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0D020iAXP4#200210-200511

main58307-0D030iNCP42..(15E,15J)..TAIW200510-201309

main58307-0D040iNCP4#..MA,PHL,TH200212-200603

main58307-0D050iNCP42..15G..TAIW200303-200510

58311PAN, REAR FLOOR

main58311-0D020iNCP4#200212-200603

main58311-0D040iAXP4#200210-200511

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-0D010iSCP4#200608

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-0D010iAXP4#200210-200511

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-52010iAXP4#200210-200511

58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58331-10010iAXP4#200210-200511

58339DBRACKET, JACK UP

main58339-52010iAXP4#200210-200511

58442DCOVER, JACK

main58442-0D010iAXP4#200210-200511

main58442-0D020iNCP4#..MA,PHL,TH200212-200512

main58442-52030iNCP42..TAIW,VN200510

71316BRACKET, REAR SEAT SUPPORT

main71316-0D010×2iAXP4#200210-200511

9011506219

main90115-06219

9011506243

main90115-06243

9029703007

main90297-03007

91511C0818

main91511-C0818

24 parts on this diagram · 2 diagrams in section
