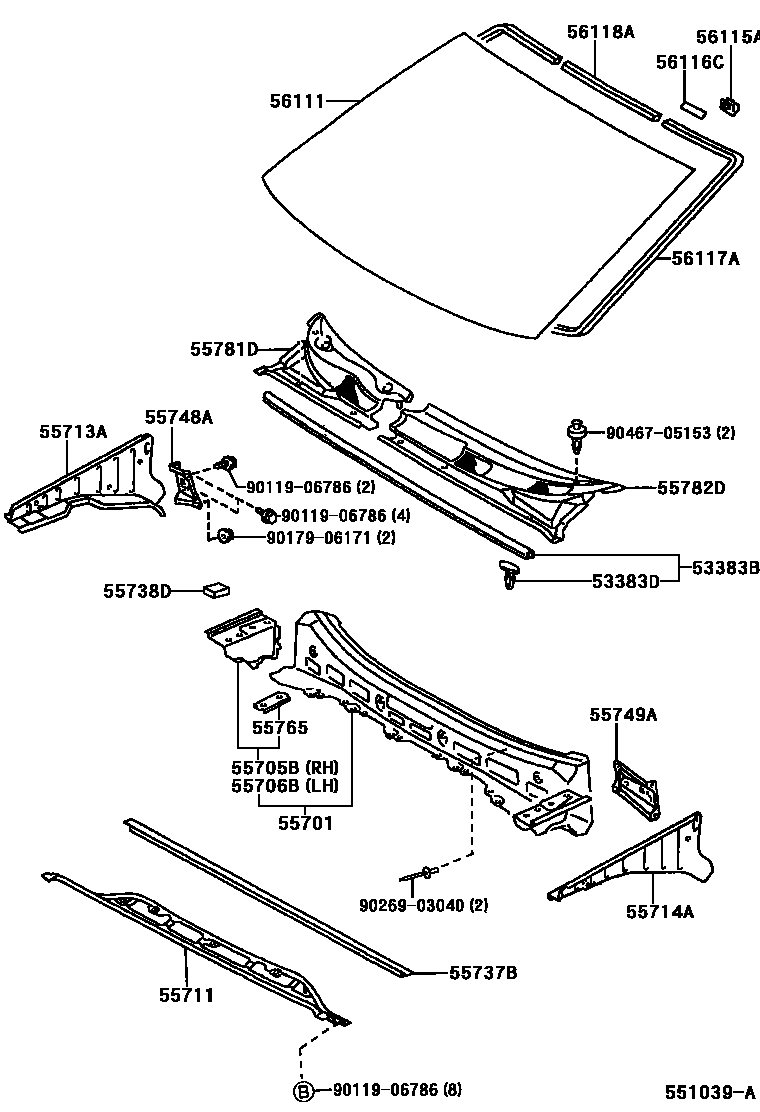

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1

53383BSEAL, HOOD TO COWL TOP

main53383-0D020iAXP4#200210-200511

main53383-0D030iNCP4#200212-200603

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90080-46318×8iSCP4#200608

main90467-08108×8iNCP4#200510

55701PANEL SUB-ASSY, COWL

main55700-0D030iAXP4#200511-200608

main55700-0D040iNCP4#..LHD200510-201309

main55700-0D050iNCP42..RHD200212-200512

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0D020iAXP4#200210-200511

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0D020iAXP4#200210-200511

55711PANEL, COWL TOP, OUTER

main55701-0D030iSCP4#200608

main55701-0D040iNCP4#..LHD200510

main55701-0D050iNCP42..RHD200212-200512

55713APANEL, COWL TOP SIDE, RH

main55713-0D010iSCP4#200608

55714APANEL, COWL TOP SIDE, LH

main55714-0D010iAXP4#200210-200511

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0D020iNCP4#..LHD200303-200603

(L)

main55737-0D100iSCP4#200608

main55737-52010iNCP42..TAIW200303-200304

(J)

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-0D010×2iAXP4#200210-200511

main55738-0D020×2iNCP4#200212-200603

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-0D010iSCP4#200608

main55748-0D020iNCP42..RHD200212-200512

55749ABRACE, COWL TOP INNER TO PILLAR, LH

main55749-0D010iAXP4#200511-200608

main55749-0D020iNCP42..RHD200212-200512

55765BRACKET, HOOD DAMPER MOUNTING

main55765-44010×2iNCP4#200212-200603

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-0D040iAXP4#200210-200511

main55781-0D050iSCP4#200608

COLD SPEC

main55781-0D060iNCP4#..LHD200303-200603

main55781-0D070iNCP42..RHD200212-200512

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-0D040iAXP4#200210-200511

main55782-0D050iNCP4#..LHD200510

main55782-0D060iNCP42..RHD200212-200512

main55782-0D080iAXP4#200511-200608

COLD SPEC

56111GLASS, WINDSHIELD

main56101-0D020iNCP42..TAIW,VN200510

*LAM,T=4.76,GREEN

main56101-0D030iAXP4#200210-200302

*LAM,T=4.76,GREEN

main56101-0D031iAXP4#200511-200608

*LAM,T=4.76,GREEN

main56101-0D040iNCP42..RHD200212-200512

*LAM,T=4.76,GREEN

sub56101-0DB10

main56101-0D050iNCP4#..PHL200305-200510

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iNCP4#200510

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iAXP4#200210-200511

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0D010iAXP4#200210-200511

main56117-0D020iNCP42..TAIW200510

L=3095

main56117-52100iNCP4#..MA,PHL,VN200303-200603

L=3095

main56117-64010iNCP42..TH200406-200510

L=3095

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-52040iNCP42..TH200406-200510

L=618

sub56117-74010

main56118-0D010iAXP4#200210-200511

main56118-0D020iNCP42..TAIW200510

L=618

main56118-52060iNCP42..TH200303-200406

L=618

9011906786

main90119-06786

9017906171

main90179-06171

9026903040

main90269-03040

9046705153

main90467-05153

24 parts on this diagram · 3 diagrams in section
