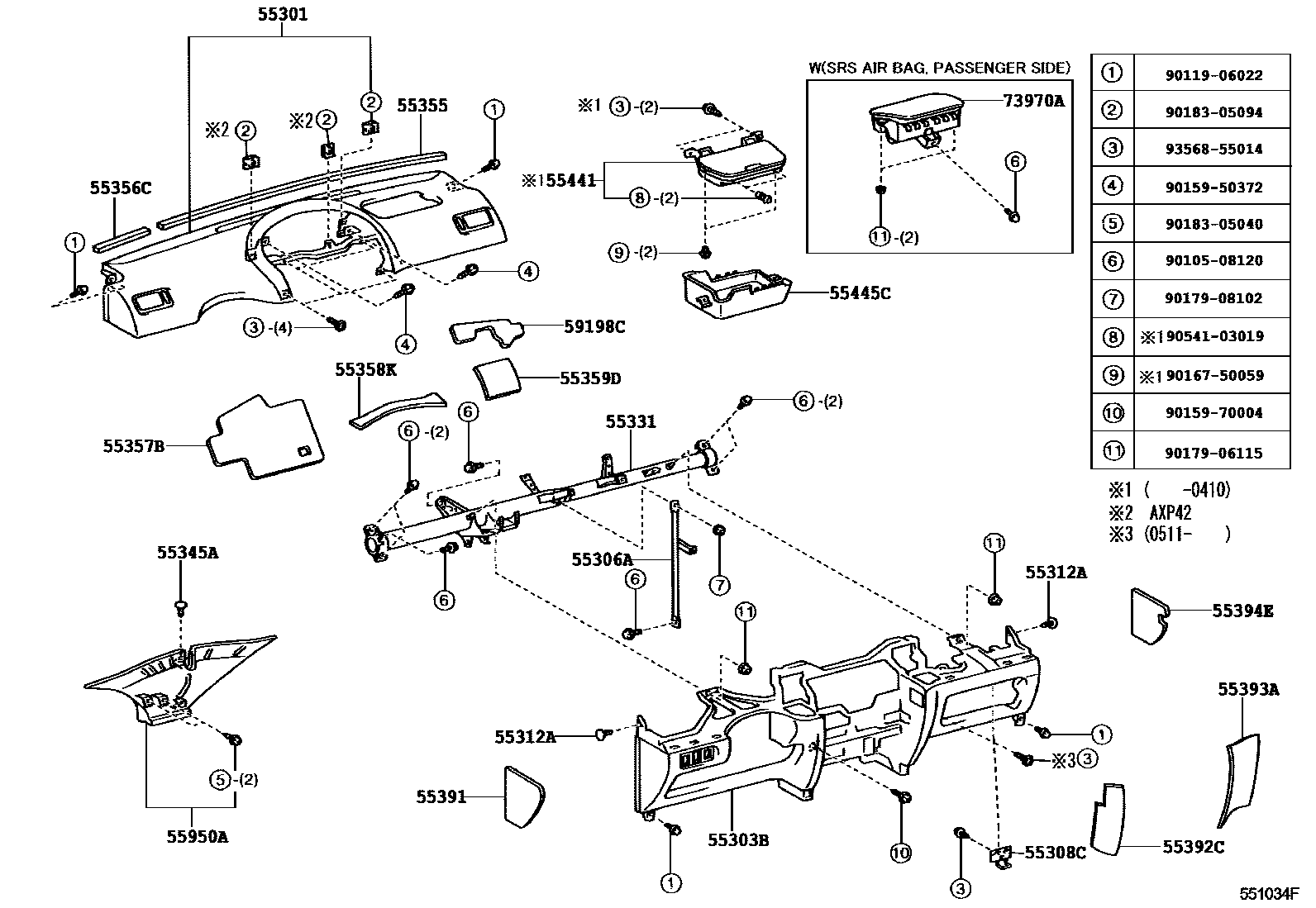

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0003 1 0004 1 0005 1DRIVER SIDE 0007 1DRIVER SIDE 0008 1DRIVER SIDE 0009 1CENTER 0011 1CENTER 0012 1CENTER 0013 1PASSENGER SIDE 0015 1PASSENGER SIDE 0016 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-0D030-B0iAXP42..15GLI,GLS200511-200608

DK.GRAY,TRIM1#

sub55301-0D031

main55301-0D030-E0iAXP4#..15GLI,GL,GLXI200511-200608

DK.BROWN,TRIM0#

sub55301-0D031

main55301-0D040-B0iNCP42..RHD200212-200512

DK.GRAY,TRIM1#

main55301-0D040-E0iNCP42..RHD..ATM..(15E,15S)200510-200708

SANDAL WOOD,TRIM0#

main55301-0D050-B0iNCP4#..LHD200303-200603

DK.GRAY,TRIM1#

main55301-0D050-E0iNCP42..(15E,15G)..TAIW200510-201303

DK.BROWN,TRIM0#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0D030-A0iNCP42..ATM..(15E,15S)..TH200212-200510

IVORY,TRIM0#

main55303-0D030-B0iNCP42..RHD..(15E,15J)200212-200512

STONE,TRIM1#

main55303-0D030-B1iNCP42..RHD..(15G,15S)200510-200708

DK.GRAY,TRIM1#

main55303-0D040-A0iAXP4#..15GLI,GL,GLXI200511-200608

IVORY,TRIM0#

sub55303-0D041

main55303-0D040-B0iSCP42..GLI,GLS200608

STONE,TRIM1#

sub55303-0D041

main55303-0D050-A0iNCP42..(15E,15G)..TAIW200303-200510

IVORY,TRIM0#

main55303-0D050-B0iNCP4#..PHL,VN200510-200709

STONE,TRIM1#

main55303-0D050-B1iNCP42..TAIW200303-200510

DK.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D030iAXP4#200210-200511

main55306-0D040iNCP4#..LHD200303-200603

main55306-0D050iNCP42..RHD200510-200708

main55306-0D110iNCP4#..LHD200510

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-02080iNCP42..RHD200510-200708

main55308-0D020iNCP4#..LHD200510

main55308-12280iSCP4#200608

55312ACLIP, INSTRUMENT PANEL

main90467-05020-A4×2iSCP42..GLS200608

IVORY,TRIM0#

sub90467-05027

main90467-05020-P1×2iNCP42..(15E,15J)..TAIW;NCP42..(15G,15S)..(MA,TAIW,TH)200212-200512

DK.GRAY,TRIM13

sub90467-05027

main90467-05020-P2×2iNCP42..(15E,15G)..TAIW200303-200510

STONE,TRIM04,13

sub90467-05027

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0D050iAXP4#..MTM200210-200410

main55330-0D060iSCP4#..MTM200608

main55330-0D070iAXP4#..ATM200210-200410

main55330-0D080iAXP4#..ATM200210-200511

W(SRS AIR BAG,PASSENGER SIDE)

main55330-0D100iNCP42..LHD..ATM200303-200510

main55330-0D110iNCP42..MTM..15E200212-200510

W(SRS AIR BAG,PASSENGER SIDE)

main55330-0D120iNCP42..MTM..TH200212-200510

main55330-0D130iNCP42..ATM..15E..TH;NCP42..RHD..ATM..(15G,15S)200510-200708

W(SRS AIR BAG,PASSENGER SIDE)

main55330-0D140iNCP42..RHD..ATM..(15E,15J,15S)200510-200708

main55330-0D200iNCP4#..LHD..MTM200305-200603

main55330-0D340iNCP42200911

55345ACLIP, INSTRUMENT PANEL, NO.1

main90467-05020-A4iNCP42..(15E,15G)..TAIW200303-200510

IVORY,TRIM04

sub90467-05027

main90467-05020-E7iSCP4#200608

DK.BROWN

sub90467-05027

main90467-05020-P1iNCP42..TAIW200303-200510

DK.GRAY,TRIM13

sub90467-05027

main90467-05020-P2iNCP42..15J..TAIW200303-200510

STONE,TRIM04,13

sub90467-05027

55355CUSHION, INSTRUMENT PANEL, NO.1

main55349-0D030iNCP42..RHD200510-200708

main55349-52030iAXP4#200308-200511

main55355-52020iAXP4#..DLX,DLXI,GL,GLI,GLXI200210-200308

main55355-52070iNCP42200212-200303

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55349-52050iAXP4#200308-200511

main55356-52080iAXP4#..DLX,DLXI,GL,GLI,GLXI200210-200308

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-0D050iSCP4#200608

main55357-0D060iNCP4#..LHD200303-200603

main55357-0D070iNCP42..RHD200212-200512

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-0D040iAXP4#200511-200608

main55358-0D060iNCP4#..LHD200303-200603

main55358-0D070iNCP42..RHD200510-200708

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-0D010iAXP4#200511-200608

main55359-0D030iNCP42..RHD200212-200512

55391CUSHION, INSTRUMENT PANEL, LOWER NO.1

main55391-0D030iSCP4#200608

main55391-0D100iNCP42..RHD200212-200512

55392CCUSHION, INSTRUMENT PANEL, LOWER NO.2

main55392-0D030iAXP4#200210-200511

main55392-0D100iNCP42..RHD200510-200708

55393ACUSHION, INSTRUMENT PANEL, LOWER NO.3

main55393-0D030iAXP4#200511-200608

main55393-0D070iNCP42..RHD200510-200708

55394ECUSHION, INSTRUMENT PANEL, LOWER NO.4

main55394-0D020iAXP4#200511-200608

main55394-0D060iNCP42..RHD200212-200512

55441BOX, INSTRUMENT PANEL

main55440-0D030-E0iAXP4#..DLX,DLXI,GL,GLI,GLXI200210-200410

DK.BROWN,TRIM0#

main55440-0D040-B0iNCP4#..LHD200303-200603

DK.GRAY,TRIM1#

main55440-0D040-E0iNCP42..(15E,15G)..TAIW200510-200911

DK.BROWN,TRIM0#

main55440-0D050-B0iNCP42..ATM..15S200510-200702

DK.GRAY,TRIM1#

main55440-0D050-E0iNCP42..ATM..(15E,15S)..TH200212-200510

SANDAL WOOD,TRIM0#

55445CPLATE, INSTRUMENT PANEL BOX

main55445-0D030iAXP4#..DLX,DLXI,GL,GLI,GLXI200210-200410

main55445-0D040-B0iNCP4#..LHD200510-200911

DK.GRAY,TRIM1#

main55445-0D040-E0iNCP42..(15E,15G)..TAIW200303-200510

DK.BROWN,TRIM0#

main55445-0D050-B0iNCP42..ATM..15S200510-200702

DK.GRAY,TRIM1#

main55445-0D050-E0iNCP42..RHD..ATM..(15E,15S)200510-200708

SANDAL WOOD,TRIM0#

55950ANOZZLE ASSY, DEFROSTER

main55950-0D030iSCP4#200608

main55950-0D040iNCP4#..LHD200510

59198CSEAL, NOISE SHUTTER

main59198-0D040iAXP4#200210-200511

main59198-0D050iNCP4#..LHD200510

main59198-0D060iNCP42..RHD200510-200708

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-0D030-B0iSCP42..GLI,GLS200608

DK.GRAY,TRIM1#

sub73970-0D290

main73970-0D030-E0iNCP42200911-201303

DK.BROWN,TRIM0#

sub73970-0D290

main73970-0D040-B0iNCP42..15E..TH;NCP42..RHD..ATM..(15G,15S)200510-200708

DK.GRAY,TRIM1#

sub73970-0D300

main73970-0D040-E0iNCP42..ATM..(15E,15S)..TH200212-200510

SANDAL WOOD,TRIM0#

sub73970-0D300

9010508120

main90105-08120

9011906022

main90119-06022

9015950372

main90159-50372

9015970004

main90159-70004

9016750059

main90167-50059

9017906115

main90179-06115

9017908102

main90179-08102

9018305040

main90183-05040

9018305094

main90183-05094

9054103019

main90541-03019

9356855014

main93568-55014

32 parts on this diagram · 12 diagrams in section
